Miranda FRS-111i Manual To Installation And Operation

4:2:2 frame synchronizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

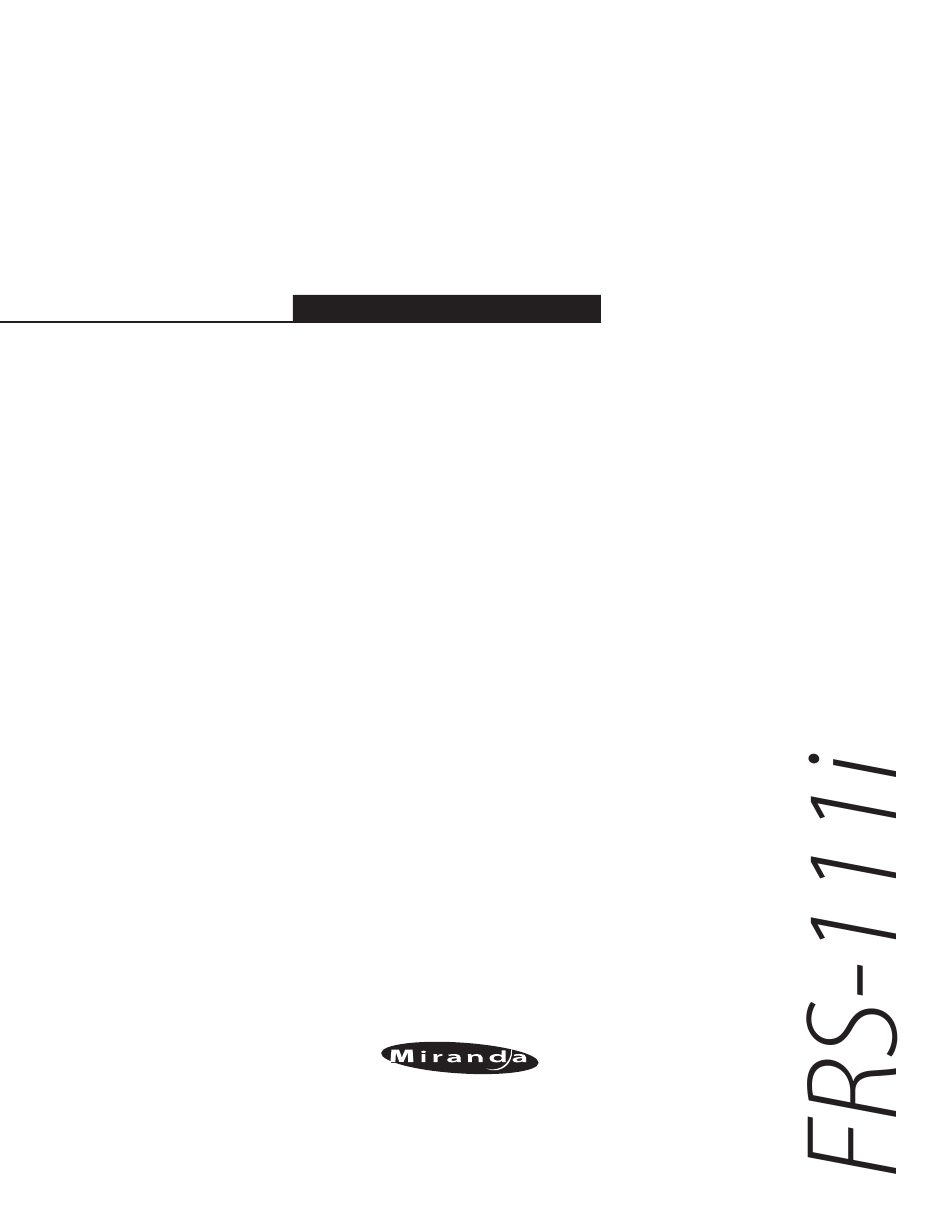

Guide to Installation and Operation
Copyright 2002 Miranda Technologies Inc.
FRS-111i
M264-9900-101
Specifications may be subject to change.
Printed in Canada
August 2002
Miranda
Technologies inc.
3499 Douglas-B.-Floreani
St-Laurent, Québec, Canada H4S 1Y6
Tel. 514-333-1772
Fax. 514-333-9828
www.miranda.com
4:2:2
Frame
Synchronizer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS-111i and is the answer not in the manual?

Questions and answers

Related Manuals for Miranda FRS-111i

Summary of Contents for Miranda FRS-111i

  • Page 1 4:2:2 Frame FRS-111i Synchronizer Guide to Installation and Operation M264-9900-101 Copyright 2002 Miranda Technologies Inc. Specifications may be subject to change. Printed in Canada August 2002 Miranda Technologies inc. 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 1Y6 Tel. 514-333-1772 Fax. 514-333-9828...
  • Page 2 Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Miranda, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer’s expense.
  • Page 3 Out-Of Warranty Equipment Updates and Spare Parts Policy Miranda Technologies’ current pricing structure for out-of-warranty equipment updates, or the sale of spare parts, is available from Miranda Technical Support Services at (514) 333-1772. ELECTROMAGNETIC COMPATIBILITY - This equipment has been tested for verification of compliance with FCC Part 15, Subpart B, class A requirements for Digital Devices.

  • Page 4: Table Of Contents

    Contents FRS-111i 4:2:2 Frame Synchronizer ..............1 Introduction ......................1 Features......................2 Typical Applications ..................2 1.3.1 Hot Switching ..................2 Installation .......................3 Unpacking ......................3 FRS-111i Mechanical Installation ..............3 2.2.1 imaging Quartet, Quartet-C and Quartet-M Housing Frame ....3 2.2.2 imaging Symphonie Housing Frame............3 2.2.3 imaging Solo Housing Frame ..............4 Rear Panel Label .....................4...

  • Page 5: Frs-111I 4:2:2 Frame Synchronizer

    All FRS-111i adjustments and selections can be controlled remotely with Miranda’s iControl software and RCP-100. The FRS-111i is a member of the imaging family of digital video cards and therefore requires the imaging Quartet, Quartet-C or Quartet-M, imaging Solo or imaging Symphonie housing frame for mounting and power.

  • Page 6: Features

    Figure 1.1 illustrates a typical hot switch setup. For a smooth transfer to occur when switching between two sources, set the FRZE-MODE to ERR (error on input signal). Immediately after a switch is performed on the routing switcher, FRS-111i will detect an input error thereby performing a freeze. The FRS-111i automatically switches to the last errorless field or black.

  • Page 7: Installation

    2 Installation 2.1 Unpacking Make sure the following items have been shipped with your FRS-111i. If any of the following items are missing, contact your distributor or Miranda Technologies Inc. • FRS-111i 4:2:2 Frame Synchronizer • FRS-111i rear panel label (2) •...

  • Page 8: Imaging Solo Housing Frame

    1. In order to remove the housing frame's front panel, gently pull on it. 2. Carefully place the FRS-111i between the card guides and gently push the card towards the rear of the housing frame until the card's edge connector is secured to the backplane.

  • Page 9: Imaging Symphonie Connector Label

    1. Carefully apply the label to the connectors as shown in Figure 2.3. Figure 2.3 FRS-111i rear panel label installation (imaging Quartet-M is shown in this example) 2.3.2 imaging Symphonie Connector Label To install the Symphonie label, follow these steps while referring to Figure 2.4.

  • Page 10: Frs-111I Electrical Installation

    Connector pinout is detailed on Figure 2.5. The FRS-111i also shorts the GPI output to ground when an error is detected in the 4:2:2 video input, and optionally when a freeze is detected on the incoming video.
  • Page 11 Figure 2.5 Video processing delay & GPI output connector pinout GPI OUT DELAY (+) DELAY (-) RJ-45 Connector Pin Location Figure 2.6 FRS-111i connections 4:2:2 loop through output FRS-111i 4:2:2 FRAME SYNCHRONIZER DELAY Quartet-M Symphonie-R-M REF IN IN 4:2:2 LOOP...

  • Page 12: Operation

    3 Operation 3.1 FRS-111i User Interface Figure 3.1 outlines the FRS-111i's user interface situated at the front end of the card. The interface components include, from left to right: • Line format status, error detection and reference status indicators •...

  • Page 13: Using The Menu

    REF LED flashes. • When an external reference is present, the video input is frame synchronized with the reference signal; this LED turns on to indicate that the FRS-111i is in frame sync mode. •...
  • Page 14 If the menu is currently being accessed and no push-button has been pressed for 1 minute, the FRS-111i automatically exits from the menu, returning to normal mode. At the same time, changes made to the current parameter will be stored.

  • Page 15: Timing Adjustments

    Note that when the reference is not present and the FRS-111i is locked to the input, a zero phasing (vertical timing and horizontal timing set to 0) is not possible because of the minimum processing delay of the card.

  • Page 16: Horizontal Timing Delay

    6. Press ESC to return to TIMG. 7. To return to normal mode, press ESC. 3.4.3 Horizontal Timing Delay The horizontal timing adjustment is made in increments of 37 ns up to a maximum of one video line (63.5 µs in 525-lines format and 64.0 µs in 625-lines format). Follow these steps in order to adjust horizontal timing: 1.

  • Page 17: Freeze Functions

    8. To return to normal mode, press ESC. 3.6 Freeze Functions The FRS-111i has a manual freeze pushbutton situated on the front edge of the module (see figure 3.1 Front Panel Interface) that allows a user to freeze (grab) a video image.

  • Page 18: Freeze Type

    In addition to providing an automatic freeze on incoming signals with detected errors, the FRS-111i has the ability to detect that the incoming video itself is frozen. An alarm is raised once the frozen state has been detected for longer than a user-...

  • Page 19: Factory Reset

    LED will illuminate and the display will show INFZ), on the rear-panel GPI output, and on iControl. This feature is very useful when the FRS-111i is processing video coming from a circuit prone to failure, such as an MPEG satellite receiver. When most receivers lose the satellite carrier, they freeze their output but do not send an alarm.

  • Page 20: Specifications

    4:2:2 SMPTE 259M-C (270 Mbps) Return Loss: > 15 dB up to 270 MHz Jitter (Wideband): < 0.2 UI (0.74ns) p-p Delay Tracking: Miranda video-audio tracking signal PROCESSING PERFORMANCE (DIGITAL) Signal Path: 10 bits 13 µs in delay mode Processing Delay:...
