GJD OPAL XL Installation Manual

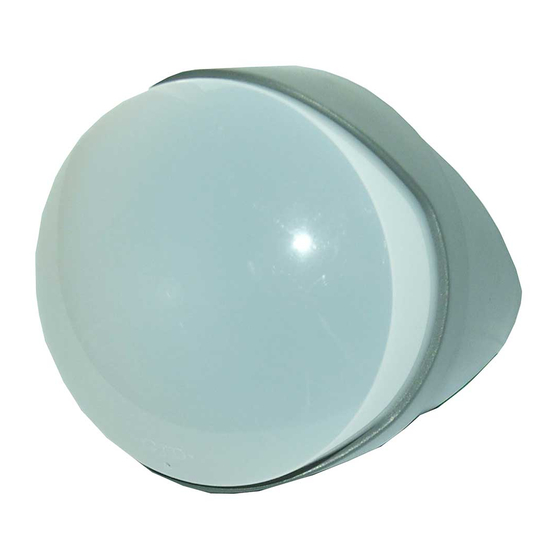

The Opal XL is encased in a robust high impact ABS housing. The plug in electronics
module is supported by an internal bracket which is fully adjustable horizontally and
vertically. Further protection against harsh environments is offered by a separate
polythene lens cover which conceals the angle of detection from any intruder and
totally hides the wiring.

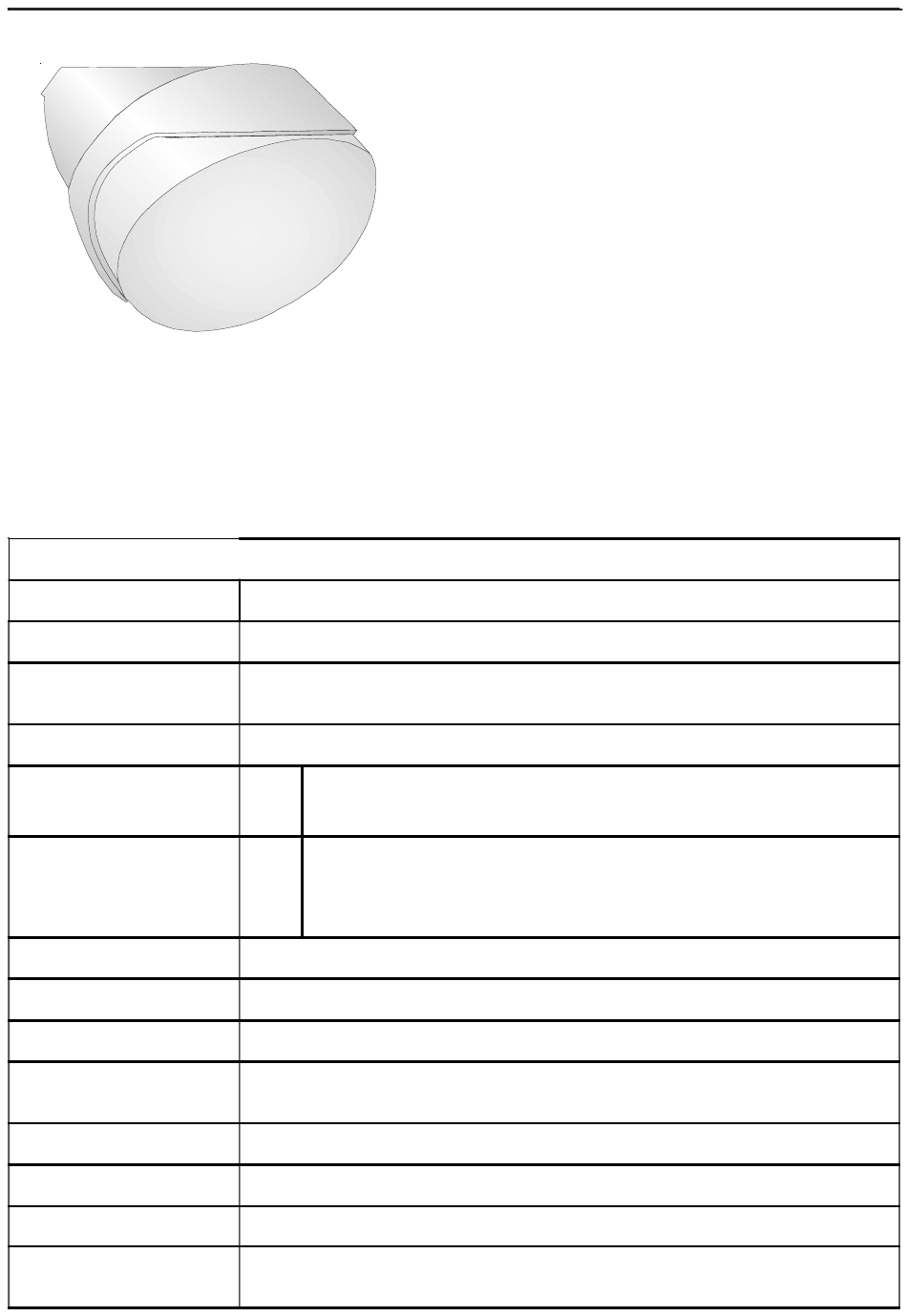

OPAL XL SPECIFICATIONS
Area
Coverage
Adjustment
Lens
No. 1 Output
No 2. Output
Power input
Current
Control
Operating
Temperature
Protection
Dimension
Mounting
Cable
GJD O
10 to 35 metres (adjustable) up to 750 sq metres
90 degree 35 metres x 30 metres max
180 degree pan + 90 degree tilt
Area reduction mask (if required)
Fresnel : 36 zone - White light filter
'A' Open collector -ve switching - 25mA max.
Alarm period 400ms
'S' Open collector -ve switching - 25mA max.
Alarm period: detection + 60 seconds
Adjustable: Dusk (2 lux) to 24 hour
9 to 15VDC
6mA (12V nominal)
Digital ASIC/microprocesor
-20 to + 55 centigrade.
Conformally coated electronics for increased stability
Rating: I P 55 - High Impact ABS Housing
104 x 104 x 94 mm Weight 136 grams
Height - Variable - optimum height 3 metres
up to 200 metres : standard 4 core 7/0.2mm
up to 500 metres : 8 core 16/0.2mm use double core
XL 35
PAL
An inconspicuous reliable 35 metre external
passive infra red detector that works in
conjunction with the GJD security lighting
controllers.
- 1 -
METRE EXTERNAL
I M
NSTALLATION
P N : GJD020
ART O
PIR
ANUAL
