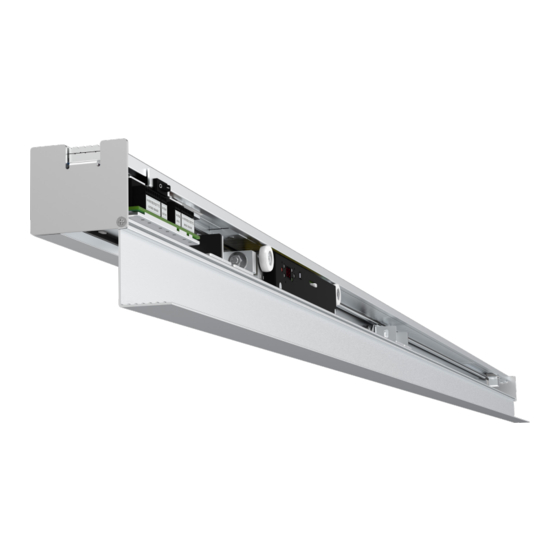

Automatic door operator for interior sliding door
Hide thumbs Also See for EvoDrive+:

Advertisement

Quick Links

EN
EvoDrive+
MAINTENANCE MANUAL
Part 4 of the Installation, User and Maintenance Manual
This section must be given to the Owner of the automatic door, and be always available for the Maintenance technician
v3.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EvoDrive+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MOTION4 EvoDrive+

  • Page 1 EvoDrive+ MAINTENANCE MANUAL Part 4 of the Installation, User and Maintenance Manual This section must be given to the Owner of the automatic door, and be always available for the Maintenance technician v3.0.0...
  • Page 2: Table Of Contents

    INDEX PART 4 MAINTENANCE MANUAL 1. INTRODUCTION ...........................4 2. EVODRIVE+ COMPONENT OVERVIEW ..................5 3. TECHNICAL SPECIFICATIONS ......................6 4. BASIC TROUBLESHOOTING ......................7 5. MALFUNCTION CODES ........................8 6. DESCRIPTION OF THE LED INDICATORS ON THE I/O MODULE ...........10 7. MAINTENANCE INTERVALS .......................11 8.
  • Page 3: Part 4 Maintenance Manual

    PART 4 Maintenance Manual This part of the manual explains the considerations for the correct maintenance of the operator. It is very important to read this manual in full, and to observe and follow all instructions as described herein.
  • Page 4: Introduction

    1. INTRODUCTION The maintenance of the EvoDrive+ automatic sliding door operator must be done only and exclusively by qua- lified and skilled technicians, bearing the necessary technical and professional accreditations, as required by the laws in force in the country of installation, and using only and exclusively the original spare parts and com- ponents supplied by Linear Motor Applications, S.L., or otherwise those expressly approved by them.
  • Page 5: Evodrive+ Component Overview

    2. EVODRIVE+ COMPONENT OVERVIEW Side Covers Power Supply Circuit I/O Module - Master Aluminium Cover Linear Motor Type LSMPM Motor Driver Leaf Trolleys Permanent Neodymium Magnets Main Profile End Stops MAINTENANCE MANUAL...
  • Page 6: Technical Specifications

    3. TECHNICAL SPECIFICATIONS MECHANICAL FEATURES Clear Opening Width, single leaf (mm): 750 - 1400 Clear Opening Width double leaf (mm): 1500 - 2800 Operator Length, single leaf (mm): 1650 - 2850 Operator Length double leaf (mm): 3100 - 5700 MAIN FEATURES Opening Speed: adjustable between 200 and 600 mm/s Closing speed: 200 mm/s EN16005 “Low Energy”...
  • Page 7: Basic Troubleshooting

    4. BASIC TROUBLESHOOTING SITUATION / PROBLEM SOLUTION Check and remove obstructions in the closing travelling area. Check that leaf can be moved manually and smoothly. Obstruction detection during the closing cycle In the event of having sensors installed, verify that the sensors are adjusted so that the door is not detected by them.
  • Page 8: Malfunction Codes

    5. MALFUNCTION CODES In case of malfunction, a numeric code will BLINK on the motor two-digit display. Description: Motor Overcurrent Action: Switch the operator off and on again. If the error persists, call an official service technician. Description: Encoder Malfunction Action: Verify the presence of magnets above the full length of the motor, along the entire travelling movement;...
  • Page 9 Description: Bluetooth communication is misssing between the motor and I/O module Action: Pair the motor and I/O module back together. Description: Problem on the electronic board clock Action: Switch the operator off and on again. If the error persists, call an official service technician.
  • Page 10: Description Of The Led Indicators On The I/O Module

    6. DESCRIPTION OF THE LED INDICATORS ON THE I/O MODULE I/O MODULE Lock Lock Bluetooth Int. Switch Ext. Switch Int. Sens. Int. Sensor Power Bluetooth LED INDICATORS LEDs DESCRIPTION POWER ON when the operator is energized ON after switching the power on OFF in normal working mode BLUETOOTH Fast BLINK in pairing connection process...
  • Page 11: Maintenance Intervals

    7. MAINTENANCE INTERVALS In the following chart we show the tasks and intervals of the interventions that are required to periodically execute on the EvoDrive+ automatic door operator, which depends on the frequency or the number of cycles: TASK FREQUENCY NUMBER OF CYCLES Cleaning of the top and bottom track rails Yearly...
  • Page 12: Maintenance Record Sheet

    8. MAINTENANCE RECORD SHEET Date: Made by: (name of the service technician) Complies: Remarks: Signed by the Signed by the service client: Technician: Date: Made by: (name of the service technician) Complies: Remarks: Signed by the Signed by the service client: Technician: Date:...
  • Page 13 Date: Made by: (name of the service technician) Complies: Remarks: Signed by the Signed by the service client: Technician: Date: Made by: (name of the service technician) Complies: Remarks: Signed by the Signed by the service client: Technician: Date: (name of the service technician) Made by: Complies: Remarks:...
  • Page 14 ADDRESS CONTACT Linear Motor Applications, S.L. Tel.: +34 935 624 639 Pol. Ind. Santiga E-mail: info@motion4.eu Pasaje Arrahona 4, Nave 1 www.motion4.eu 08210 Barberà del Vallès Barcelona, España...
