Summary of Contents for Bside ESR02 pro

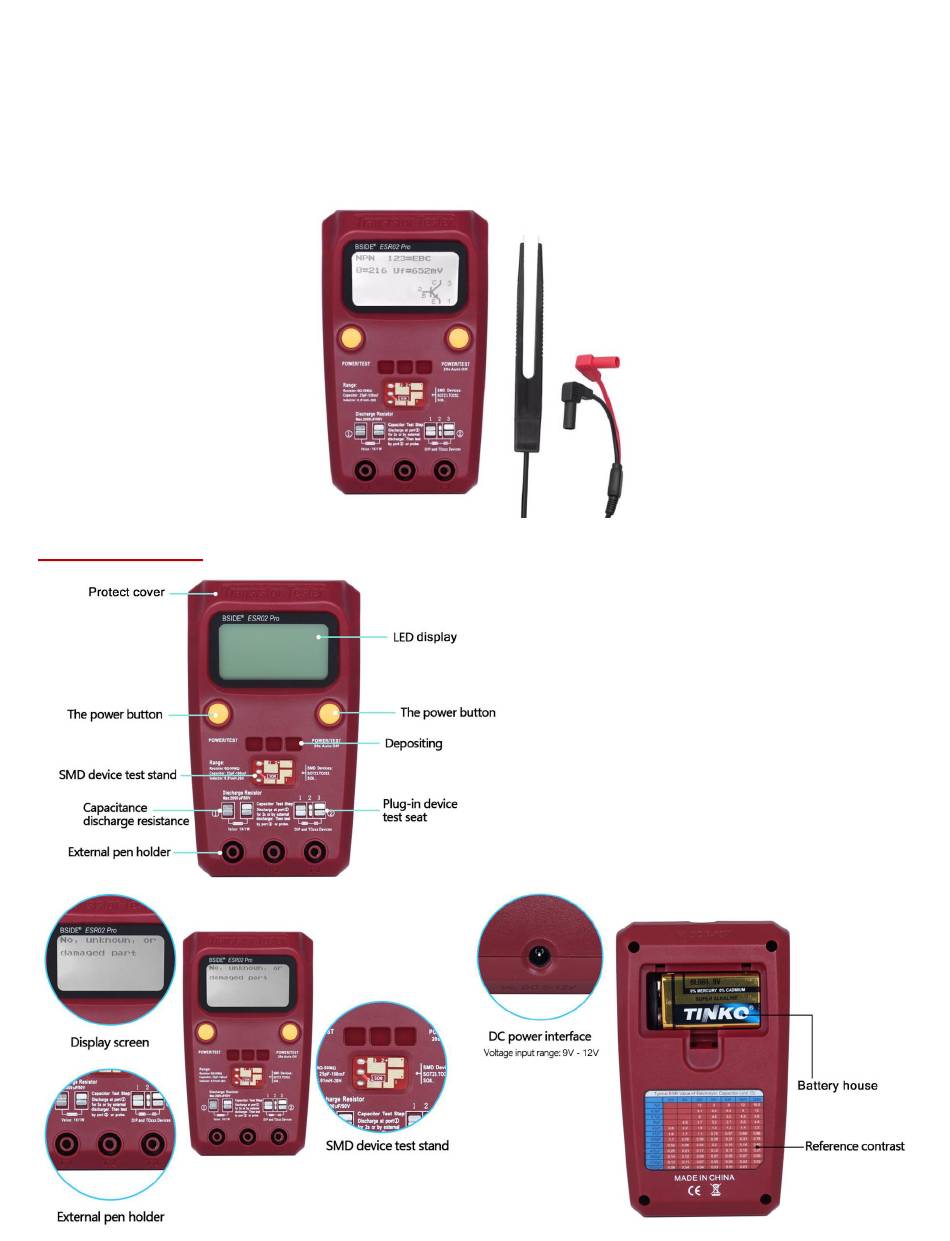

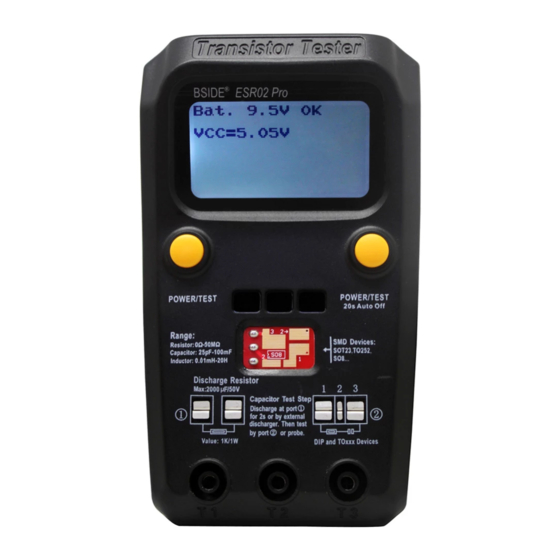

- Page 1 Digital Component ESR Meter Multi-function Tester Model: ESR02 pro User Manual Product Details:...
- Page 2 Function Testing:...
- Page 3 Usage Instructions: a. Power ON: Press “POWER/TEST” button before using. b. Test: Press “POWER/TEST” button to start a test. Regardless of the pin sequence, this meter will recognize the pin’s function and layout on the screen. c. Power OFF: Automatically power down if no button operation in 20 seconds. d.
- Page 4 g. Selection Menu: A long button press (>0.5s) will enter the selection menu for additional functions. Short button press to switch different functions and long button press (>0.5s) to enter Submenu. Switch off: Long button press to power Off immediately. ...
