Summary of Contents for Custom Crimp BE Series

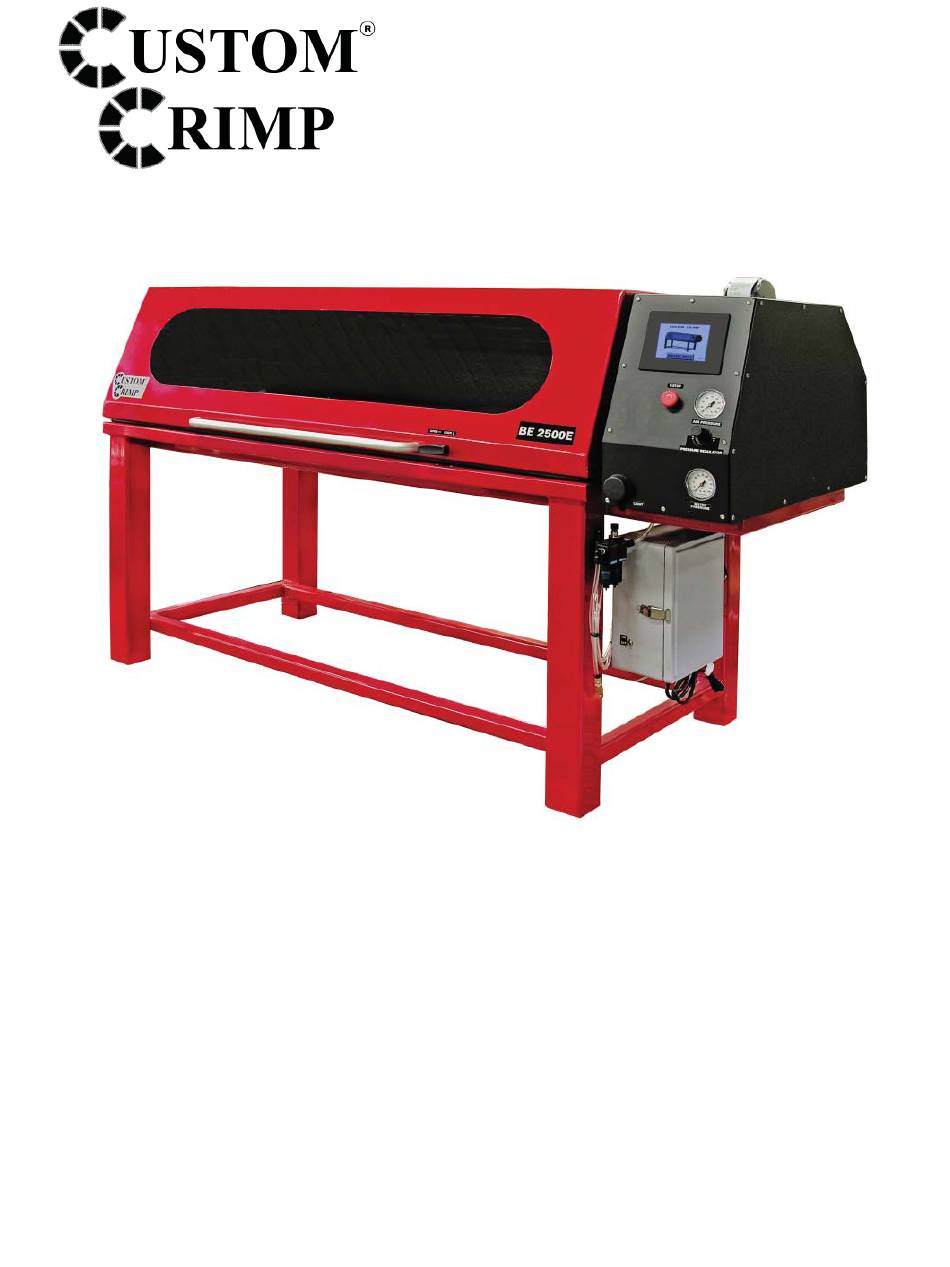

- Page 1 Page BE SERIES ELECTRONIC TEST BENCH OPERATORS MANUAL...
-
Page 2: Safety Precautions
Page SAFETY PRECAUTIONS READ INSTRUCTIONS AND IDENTIFY ALL COMPONENT PARTS BEFORE OPERATING BENCH TEST BENCH PRODUCES EXTREMELY HIGH PRESSURE. USE CAUTION WHEN OPERATING KEEP HANDS AWAY FROM PINCH POINTS CONSULT HOSE AND FITTING MANUFACTURER’S SPECIFICA- TIONS FOR CORRECT TESTING PROCEDURE ALWAYS WEAR EYE PROTECTION BE SeriesTest Bench models available: BE1500 Series: 1500 bar (21,500psi) - Page 3 Page TEST BENCH PARTS IDENTIFICATION PAPER TAPE RECORD EMERGENCY STOP OUTPUT AIR PRESSURE GAGE SYSTEM PRESSURE REGULATOR LIGHT SWITCH WATER PRESSURE GAGE CONTROL PANEL WATER DRAIN VALVE WATER INLET HIGH PRESSURE MANIFOLD 110V ELECTRICAL CONNECTION AIR INLET FILTER AND LUBRICATOR AIR INLET (80 PSI MIN) ELECTRICAL INTER- LOCK SWITCH...
- Page 4 Page TEST BENCH CONNECTION/OPERATION TEST BENCH CONNECTIONS Connect a water supply hose to the water inlet connection which is located at the rear of the control cabinet. Connect a water drain hose to the water drain connection located at the rear of the test bench. Run the drain line to an appropriate drainage area.
-
Page 5: Test Procedure
Page TEST PROCEDURE After the system initializes and Press New Test to initiate a test Press the pressure button to loads, the “Begin Test” screen or Repeat Test to repeat the bring up the pressure adjust- will appear. previous test. ment keypad screen. - Page 6 DATA LOG OPTION Page From the main screen, select Select More from the Options Select Data Log from the Options. menu. second Options screen. Following instructions on the Press Start Transfer once the Select Remove USB once screen, Install Flash Drive. unit is ready.
- Page 7 INFORMATIONAL TEST SCREENS Page There are informational, adjustment and warning screens programmed into the software. While most are self explanatory, a brief description is given below. If the test does not complete This screen details the cause of Test cycle was unable to fi nish satisfactorily, the Hose Failed the failed test.
- Page 8 If any product or part manufactured by CustomCrimp is found to be defective by CustomCrimp, at its option, CustomCrimp will either repair or replace the defective part or product and return via ground transportation, freight prepaid. Custom Crimp will not cover any incoming or outgoing freight charges for machines sold outside The United States.
