Summary of Contents for Tobii Dynavox Speech Case Mini

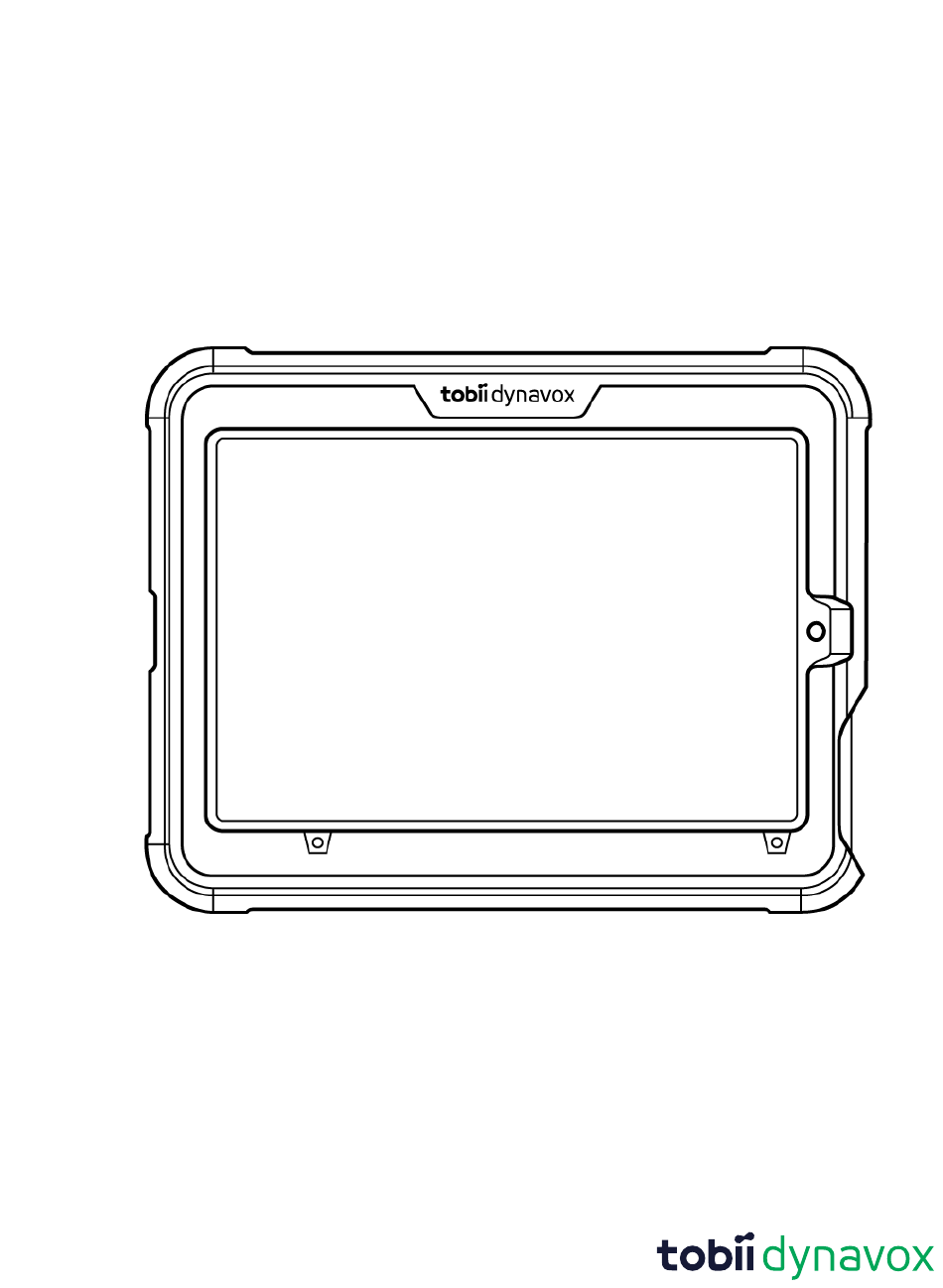

- Page 1 Tobii Dynavox Speech Case Mini User’s Manual...
- Page 2 The information contained in this document is proprietary to Tobii Dynavox. Any reproduction in part or whole without prior written authorization by Tobii Dynavox is prohibited.
-
Page 3: Table Of Contents
Unpair the Bluetooth ® Connection ..................16 Powering Down the Speech Case Mini .................17 Inserting the iPad to the Speech Case Mini ................17 Removing the iPad from the Speech Case Mini ..............19 Battery Status and Power Saving ..................20 Adjusting the Volume......................20 Product Care.......................... - Page 4 Industry Canada Statement ....................24 CE Statement ........................25 Directives and Standards.....................25 Appendix C Guidance and Manufacturer’s Declaration ..............26 Electro Magnetic Compatibility (EMC) Information ..............26 Appendix D Technical Specifications ....................29 Speech Case Mini ......................29 Power Adapter ........................29 Appendix E Approved Accessories....................30...
-
Page 5: Introduction
Thank you for purchasing a Speech Case Mini from Tobii Dynavox! To ensure the optimal performance of this product, please take the time to read this manual carefully. The Speech Case Mini is a Tobii Dynavox speech accessory intended for use with a 8.3″ iPad Mini ®... - Page 6 Recognized component mark for Canada and the United States. Dispose of in accordance with your country's requirements. #1000107 Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en- 1 Introduction...
-
Page 7: Product Label
1.2.1 Product Label The product label for the Speech Case Mini is located on the inside of back piece of the device, see Figure 1.1 Location of product label, page 7. Figure 1.1 Location of product label Posi- Description tion Product Label For information on how to disassemble the Speech Case Mini, see 5.6 Removing the iPad from the Speech Case Mini,... - Page 8 ● 1 USB-C to-USB-A Cable ● 1 Getting Started Guide ● 1 Safety and compliance ● 1 Warranty Document #1000107 Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en- 1 Introduction...
-
Page 9: Safety
The user may never attempt to change the battery. Altering of the battery may cause risk of explosion. The Speech Case Mini is not to be used as a life supporting device, and it shall not be relied on in case of loss of function due to power loss or other causes. -
Page 10: Power Supply And Batteries
For safe operation of the Speech Case Mini device, use only the charger and accessories approved by Tobii Dynavox. Do not open, or modify, the casing of the Speech Case Mini device or of the power supply, since you may be exposed to potentially hazardous electrical voltage. The device contains no serviceable parts. If the Speech Case Mini device or its accessories are mechanically damaged, do not use them. -
Page 11: Emergency
Do not rely on the Speech Case Mini device for emergency calls. We recommend having multiple ways to communicate in emergency situations. Electricity Do not open the casing of the Speech Case Mini device, since you may be exposed to potentially hazardous electrical voltage. The device contains no user serviceable parts. Child Safety The Speech Case Mini is an advanced computer systems and electronic device. -
Page 12: Overview Of The Speech Case Mini
The Speech Case Mini has several built-in features. ● 2 × Internal speakers ● 1 × On/Off Selector ● 1 × Bluetooth ® radio ● 1 × Charging port #1000107 Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en- 3 Overview of the Speech Case Mini... -
Page 13: Product Layout
Product Layout Figure 3.1 Front and Top View Position Description Volume rocker switch Speakers Foldable Leg Lanyard Connection #1000107 Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en- 3 Overview of the Speech Case Mini... -
Page 14: Pre-Installed Firmware
Pre-installed Firmware The Speech Case Mini is delivered with all required firmware installed and ready to use. #1000107 Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en- 3 Overview of the Speech Case Mini... -
Page 15: Batteries In The Speech Case Mini
Connect the Power cable to the charging port on the Speech Case Mini and to the Power adapter. ● Use the USB-A to USB-C charging cable to charge the Speech Case Mini. Position 4 in Figure 3.2 Side Views. ●... -
Page 16: Using The Speech Case Mini
The Speech Case serial number may be found on the label on the inside of the stand. Unpair the Bluetooth ® Connection If you have paired this Speech Case Mini with this iPad Mini previously, you must first “forget” the Speech Case Mini in the Bluetooth ® device list. -
Page 17: Powering Down The Speech Case Mini
Inserting the iPad to the Speech Case Mini Do not over-tighten the screws. Separate the Speech Case Mini front plate and body by pulling the two pieces apart. Press the iPad Mini into the front plate, aligning the iPad Mini camera with the cutout in the plate. - Page 18 Squeeze around the edges to click it together. Place the Speech Case Mini with the face down on a flat surface. Tighten the top two Phillips screws. Lift up the foldable leg and tighten two Phillips screws at the bottom.
-
Page 19: Removing The Ipad From The Speech Case Mini
Removing the iPad from the Speech Case Mini Place the Speech Case Mini with the face down on a flat surface. Lift up the foldable leg and loosen the two Phillips screws behind the leg Loosen the two top Phillips screws. -
Page 20: Battery Status And Power Saving
Remove the iPad Mini. Battery Status and Power Saving The Speech Case Mini battery status is monitored through your paired iPad Mini . Follow the steps below to show the Batteries widget on your Today screen. Add the Battery Status widget On your iPad Mini, swipe right over the Home screen to get to the Today screen. -
Page 21: Product Care
Temperature & Humidity 6.1.1 General Use - Operating Temperature The Speech Case Mini is best kept in dry conditions at room temperature. The recommended range for temperature and the humidity value for the device is as follows: ● Ambient temperature: 0℃ to 35℃ (32℉ to 95℉) ●... -
Page 22: Disposing Of The Speech Case Mini Device
Disposing of the Speech Case Mini Device Do not dispose of the Speech Case Mini device in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. Disposing of the Batteries Do not dispose of the batteries in general household or office waste. -
Page 23: Appendix A Support, Warranty, Training Resources
Tobii Dynavox does not warrant that the Speech Case Mini will meet Customer requirements, that the operation of the Speech Case Mini will be uninterrupted, or that the Speech Case Mini is free from bugs or other defects. Customer acknowledges that the Speech Case Mini will not function for all individuals and in all light conditions. -
Page 24: Appendix B Compliance Information
(1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. -
Page 25: B3 Ce Statement
Batteries Directive 2013/56/EU ● IEC 62368-1 ● ISO 60601-1 The device has been tested to comply with ISO 14971:2019 and other relevant standards for the intended markets. Appendix B Compliance Information Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US... -
Page 26: Appendix C Guidance And Manufacturer's Declaration
Home healthcare environment Group 1, Class B Harmonic distortion IEC 61000-3-2 Home healthcare environment Class A Voltage fluctuations IEC 61000-3-3 Home healthcare environment and flicker Compliance Appendix C Guidance and Manufacturer’s Declaration Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US... - Page 27 Immunity test levels standard Home healthcare environment Electrical fast IEC 61000-4-4 ±2 kV transients/burst 100kHz repetition frequency Surges IEC 61000-4-5 ±0.5 kV, ±1 kV Line-to-line Appendix C Guidance and Manufacturer’s Declaration Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US...
- Page 28 IEC 61000-4-6 3V, 0.15MHz-80MHz disturbances induced 6V in ISM bands and amateur radio bands between 0.15MHz and 80MHz by RF fields 80%AM at 1kHz Appendix C Guidance and Manufacturer’s Declaration Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US...
-
Page 29: Appendix D Technical Specifications
USB–A: 5VDC, 2.4A, 12W USB-C: 5VDC, 3.0A, 15W or 9.0VDC, 3A, 27W or DC Output 12VDC, 3A, 36W or 15VDC, 3A, 45W or 20VDC ,3A, 60W Appendix D Technical Specifications Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US... -
Page 30: Appendix E Approved Accessories
Appendix E Approved Accessories For information about the latest approved accessories for the Speech Case Mini, please visit www.TobiiDynavox.com contact your local Tobii Dynavox reseller. Appendix E Approved Accessories Tobii Dynavox Speech Case Mini User’s manual v.1.0.2 - en-US... - Page 32 Copyright ©Tobii Dynavox AB (Publ). Not all products and services offered in each local market. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device.
