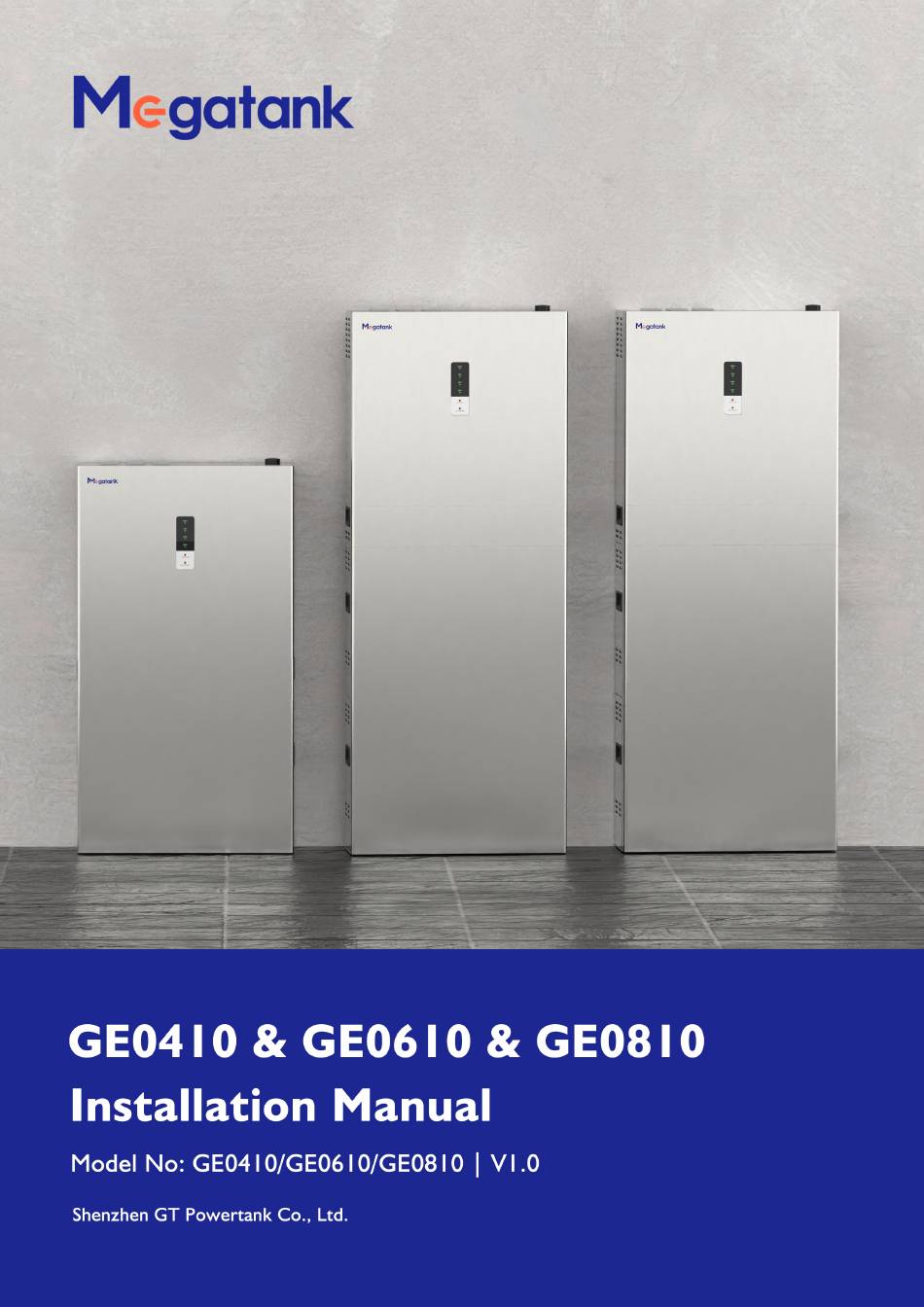

Summary of Contents for Megatank GE Series
-
Page 3: General Safety Instructions
ESS. GE series ESS are designed for meet all Chinese and International safety standards.However, like all electrical and electronic equipment, safety precations must be observed and followed during installation and operation of the GE series equipment to reduce the risk of personal injury and to ensure a safe installation. - Page 4 Prepare the tools Heavy-duty Hammer Drill 9mm Drilling Bit Socket Wrench 10mm 2.5mm Hex Wrench Hot Air Gun Measure Tape Hammer Safety Insulating Glove Multimeter Box Cutter Marker Pen Insulated Philips Screwdriver PH2 Insulated Flat Screwdriver 2.5mm Multi-function Stripping Piler...
- Page 5 Confirm the installation materials GL48100C x 2 Power Module x 1 Power Module Front Cover Power Module Middle Cover Two GL48100C Cover...
- Page 6 Front cover hex socket screw M4 x 6 Power module wall-mouonting bracket screws M6 x16 button head...
- Page 7 Confirm the bottom slave GL48100C address is 1000 (ON-OFF-OFF-OFF) Install two GL48100C wall-mounting brackets on top of it. M4 x 10 M4 x 10 Move the bottom GL48100C to the wall, check the distance between the wall and bottom GL48100C is 4cm.
- Page 8 Connect the BPN & BPP & BNC & BAT- & wake-up cable. Then put them to the back of bottom GL48100C. Connect the bottom GL48100C communication back-up cable to RS485 port. Keep another end empty for future service purpose. Confirm the top master GL48100C address is 0000 (OFFF-OFF-OFF-OFF) Install two GL48100C wall-mounting brackets on top of it.
- Page 9 Move the top GL48100C on top of bottom GL48100C, check the distance between the wall and bottom GL48100C is 4cm. Use a marker pen to mark the four mounting-hole positions. Cover two GL48100C by a fabric to avoid any drilling dust. Use a hammer-drill to drill the four holes. 9mm diameter drilling bit M6 x 50 sleeve anchor To power module busbar -...
- Page 10 Refer this diagram to confirm the power module wall-mounting bracket’s two drilling holes. Use a marker pen to mark the 2 mounting-hole positions. Cover the two GL48100C by a fabric to avoid any drilling dust. Use a hammer-drill to drill two holes.Install the power module wall-mounting bracket to the wall.
- Page 11 Insert the two power module wall-mounting hanging brackets into the power module’s back. u t t o e a d s c r Lift up the power module and put it on top of the master GL48100C.Tighten the two screws of the wall-hanging &...
- Page 12 M4 x 10 M4 x 10 Please make sure all screws are well tightened. All cables are well connected into their ports. This is crucial for whole system’s performance.
- Page 13 Pull the two circuit breakers up and press the power button down to power on GE0410/GE0610/ GE0810. Check the two GL48100C SOC indicators, there should be no red alarm. The GL48100C should have around 50% electricity remaining. Check the six power module indicators,ONLY NETWORK indicator should blink red.
- Page 14 Power off the GE0810/GE0610. Install the GL48100C support frame and three front cover by order. Install the middle cover at last. M4 x 10...
- Page 15 Please turn the battery circuit breaker off before any installation. Personal protective equipment is required before any installation. EMS wiring interface Important Load AC IN Wire Crimp PV IN-6AWG 10AWG 8mm M6 ring terminal Insulated Flat Screwdriver 2.5mm Hot Air Gun Multi-function Stripping Piler...
