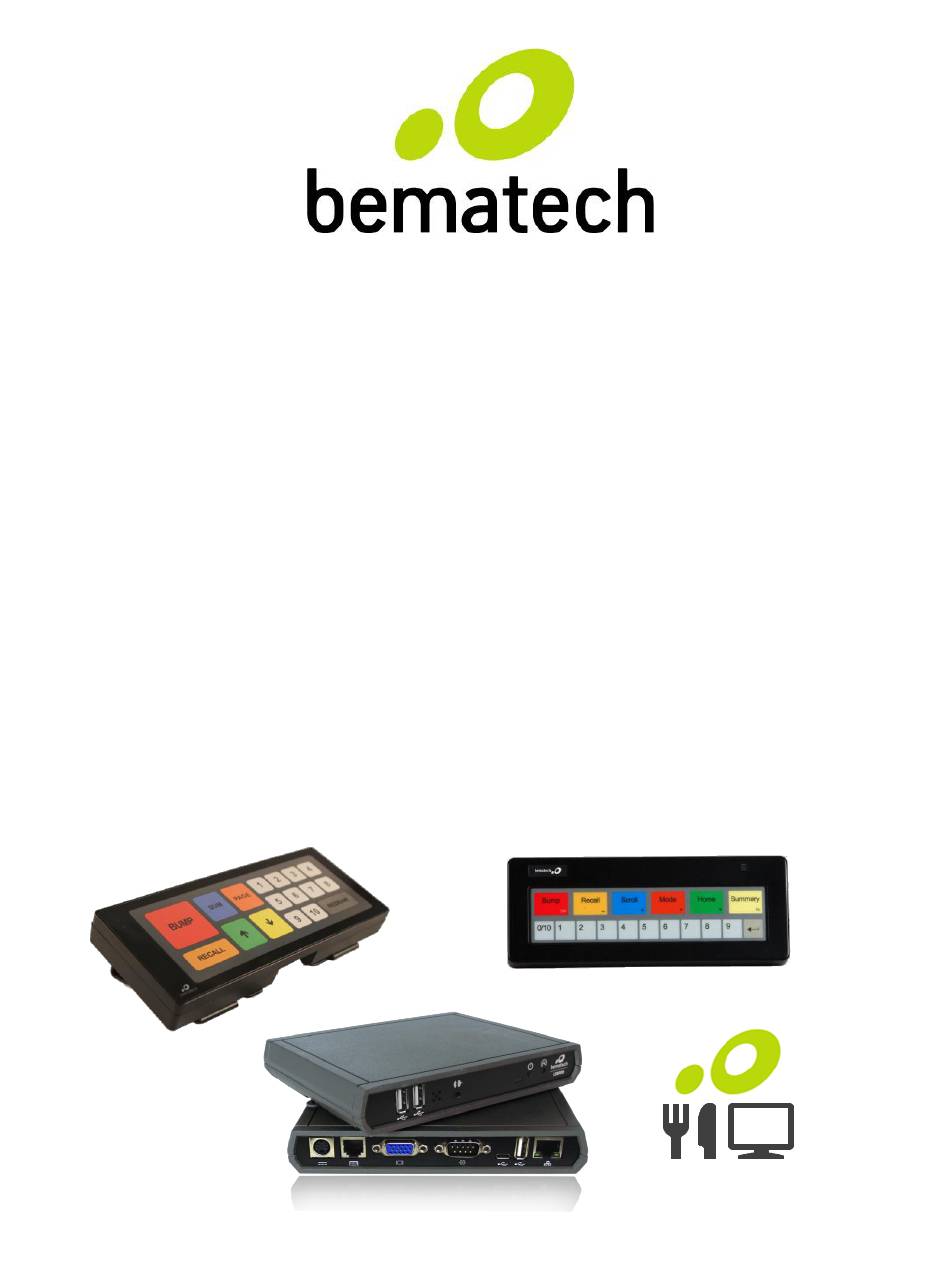

- Page 1 KitchenGo Premium KitchenGo Premium Kitchen Display System Quick Start Guide Rev 0.1...
-
Page 2: System Overview
VGA monitor / Touch monitor KitchenGo Premium Android App The KitchenGo Premium Android App is pre-installed in the LS8000 to provide operational features of the kitchen display system. Orders are transmitted from the POS stations to KitchenGo Premium through Ethernet network connection and displayed on the VGA monitor. -
Page 3: Hardware Setup
Ethernet router if the printer has an Ethernet connection; Note: Refer to user manuals of individual hardware for information on how to setup the printer and the bumpbar. For USB printer, only Bematech LR2000 is supported. - Page 4 If the POS software already included order routing function, it is not necessary to enable the order router of KitchenGo Premium. If the POS software does not have order routing function, the KitchenGo Premium router can be enabled to provide advanced order routing function and features.
- Page 5 Boot up each individual LS8000 station and setup its station ID. Then click OK as shown below: Note: station ID for each must be unique in the network. On the station you want to run KitchenGo Premium Router app, navigate to the desktop of LS8000, and click the KitchenGo Premium Router icon.
- Page 6 TCP/IP: With "TCP/IP" set as order source, the POS software will interface with KitchenGo Premium Router through a TCP/IP socket. Users can select the port that KitchenGo Premium Router listens to, as shown below: Note: You can find the IP address of the LS8000 by clicking on the top right corner and select "Show My IP", this will be the IP address that need to be set up in the POS software for KDS...
- Page 7 Please refer to troubleshooting section in user manual for detail when you have trouble setting up the stations relationship. KitchenGo Premium Setup is complete. Setup the POS Software and test the operations by sending a test order from the POS software.
- Page 8 Station setup without router In this setup, all the LS8000 stations only run the KitchenGo Premium KDS app. The KitchenGo Premium Router app in all stations should be kept disabled. Boot up each individual LS8000 station and setup its station ID. Then click OK as shown below: Note: station ID for each station must be unique in the network.
- Page 9 Note: You can find the IP address of the LS8000 by clicking on the top right corner and select "Show My IP", this will be the IP address that need to be set up in the POS software for KDS communication.
- Page 10 Please refer to troubleshooting section in user manual for detail when you have trouble setting up the stations relationship. KitchenGo Premium Setup is complete. Setup the POS Software and test the operations by sending a test order from the POS software.
-
Page 11: Warranty Information
About Bematech Bematech has over three decades of expertise in the United States with a wide distribution network that covers over 500,000 points of sale in 37 countries. The company operates four R&D excellence centers, with over 1,200 professionals in Brazil, China, Taiwan, United States, and Argentina. Comprehensive customer service and technical support based in the United States.
