Ofs NAC LGX VLX-K01 Manual

LGX™ Type Wall Bracket with Keystone Panel
SECTION
1. GENERAL ............... ............................................1

2. APPLICATIONS ... ..................................................1

3. DESCRIPTION ........................... ....................1
4. INSTALLATION.......................................................2
5. CUSTOMER SERVICES.. ......................................2
6. WARRANTY AND REPAIRS.. ...............................2
7. SPECIFICATIONS.. .................................................2
8. ORDERING INFORMATION. .................................2
1. GENERAL
1.1 The NAC VLX-K01 kit is a bracket that
can be wall mounted and will hold an LGX™-
118 type panel. It also has a cover over the
front to protect the cables, connections and
provides a strain relief. The provided panel is
an LGX™-118 type panel with four (4)
Keystone ports and four (4) caps.
1.2 This document was updated to correct
errors and for clarity.
1.3 The VLX-K01 kit has the following
features and capabilities:
• Carrier class metal construction
• Very compact and easy to mount
• Dual 5/8" spaced ground screws
• UL1863 Listed
• LGX™ Type 118 panel form factor.
LGX® is a registered trademark OFS FITEL, LLC
Model VLX-K01
PAGE #
2.
The VLX-K01 can be used in any application
where a compact wall mounting that supports
LGX™ 118 type panel is required. The VLX-
100 panel that the VLX-K01 is shipped with
has four (4) keystone ports that can be used
for any Keystone type adaptors. This makes
the VLX-K01 a versatile mounting typically
used as a multi-media service demarcation or
service handoff between the Service Providers
and the End-Users.
3.
3.1
bracket that can be wall mounted and holds an
LGX™-118 type panel. It also has a painted
steel removable cover over the front to protect
the cables, connections and provides a strain
relief. Refer to Figure 2.
Page 1 of 2

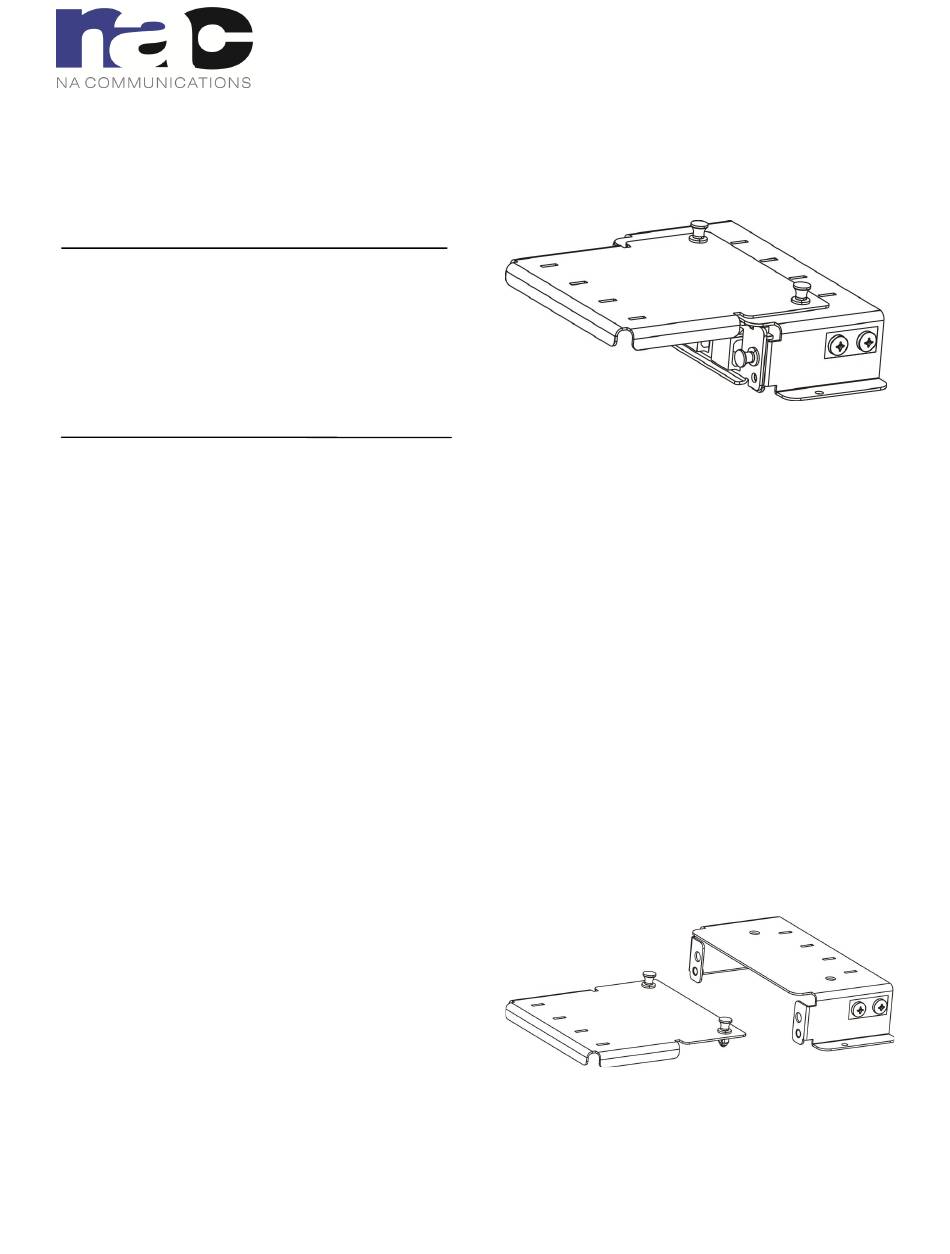

Figure 1. VLX-K01
APPLICATIONS
DESCRIPTION
The VLX-K01 is small painted steel
Figure 2. VLX-K01
(LGX™ Type 118 Panel Not Shown)
VLX-K01
001-0045 Rev. 01
