Assistant Midi 32
Module board for Midi2Org_32
User manual
Préamble

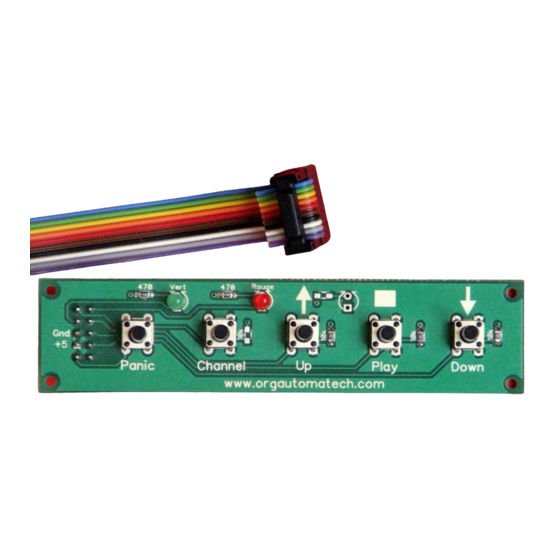

The module board "Midi 32 Assistant" is intended to be connected to a
Orgautomatech Midi2Org_32 midi board, version 3.5 and later. It comes with the
ribbon cable for the connection,
This module allows to "drive" the Midi board 32 and in particular to verify the
operation of all the coils connected to the outputs, facilitating the tuning of pipes, test
pneumatic valves, etc ...
You can install it permanently on your organ at your fingertips, it will be useful very
often.
Advertisement
Table of Contents
Summary of Contents for Assistant Midi 32
- Page 1 Module board for Midi2Org_32 User manual Préamble The module board "Midi 32 Assistant" is intended to be connected to a Orgautomatech Midi2Org_32 midi board, version 3.5 and later. It comes with the ribbon cable for the connection, This module allows to "drive" the Midi board 32 and in particular to verify the operation of all the coils connected to the outputs, facilitating the tuning of pipes, test pneumatic valves, etc ...
- Page 2 To change the channel, press the "Panic" button and simultaneously press the "Channel" button a number of times equal to the desired Midi channel. The Midi Assistant is designed for intuitive use, there is no screen because it is not necessary, you'll clearly see in use.
- Page 3 Change output releasing "Play" and using "Up" or "Down" as in normal operation. You press "Panic" to return to normal mode. Midi 32 cards working with the "limitation of notes length " setting: Same as above except: In normal mode you can not keep the note-on since, by definition, its length is •...
- Page 4 Musically yours ! Christian Blanchard Orgautomatech Christian Blanchard 113 rue Champommier 79000 Niort FRANCE 33(0)9 63 45 61 45 orgautomatix@orange.fr SIRET 399 479 138 00022 Mise à jour le 02/05/13...
