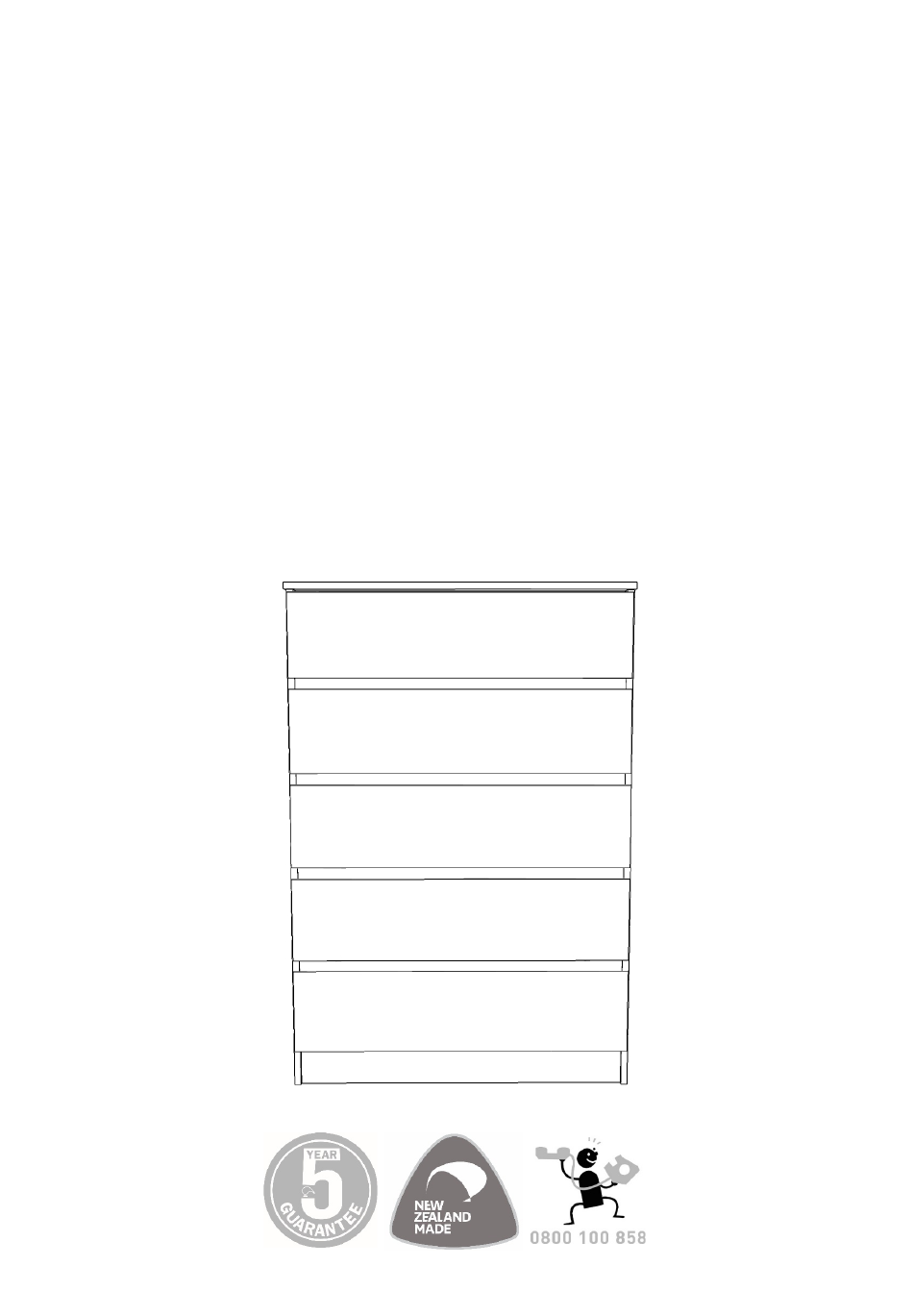

- Page 1 C o n g r a t u l a t I o n s on t h e p u r c h a s e of y o u r ……. NZ Made EdEN 5 Drawer Tallboy Instruction Manual Job No.
- Page 2 100858) or email us at sales@compacfurniture.co.nz during normal working hours and we will be happy to step you through the process. Constructed from NZ made MDF, a renewable resource from sustainably managed pine forests. This means you can have complete confidence that with This white bedroom collection, you are making an environmentally responsible choice.
-
Page 3: Parts List
THE EDEN COLLECTION PARTS LIST Please check you have all the necessary parts before beginning to assemble your cabinet. The measurements provided will help you to identify each part. If any parts are missing or damaged please contact the manufacturers directly, either via our website or our 0800 number. -
Page 4: Hardware List
THE EDEN COLLECTION HARDWARE LIST PICTURE PART NAME ASSEMBLY CODE CABINET HARDWARE Connecting Bolts 15mm Cams Large Dowels Drawer Slide Screws Metal Drawer Slide sets Nail on glide feet Pan head Screw Safety strap Washer DRAWER HARDWARE Connecting Bolts 12mm Cams Large Dowels Small Screws Gold Screws... - Page 5 THE EDEN COLLECTION CAM INSTALLATION & OPERATION GUIDE The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this system works. To see a demonstration, click on the assembly assistance tab at www.compacfurniture.co.nz. DRAWER SLIDES GUIDE Your pack will contain 5 sets of Metal Drawer Slides.
-
Page 6: Install The Hardware
THE EDEN COLLECTION INSTALL THE HARDWARE STEP 1 – LH End • Lay the LH End on a smooth clean surface with holes facing upwards. • Attach five LH Drawer Slides (CL) to the LH End using the H4 Drawer Slide Screws. Use the holes as indicated in the diagram below - each slide requires two screws. - Page 7 THE EDEN COLLECTION STEP 2 – RH END • Lay the RH End on a smooth clean surface with holes facing upwards. • Attach five RH Drawer Slides (CR) to the RH End using the H4 Drawer Slide Screws. Use the holes as indicated in the diagram below - each slide requires two screws.
- Page 8 THE EDEN COLLECTION STEP 3 – TOP Lay the Top of the unit finished side down on a clean, clear surface. • Screw four H1 Connecting Bolts into the holes indicated in the drawing below. • • Using the Pan head screw, attach the Safety Strap as shown by screwing it first through the washer and then through the eyelet in the Strap, into the hole in the left-hand side of the Top.
-
Page 9: Assemble The Unit
THE EDEN COLLECTION ASSEMBLE THE UNIT STEP 5 – RAILS AND TOEBOARDS Please see Parts list to distinguish the difference between the parts. • Lay the LH End finished side down on a clean surface that is free of anything that may damage the woodgrain finish. - Page 10 THE EDEN COLLECTION STEP 6 – ATTACH RH END • Fit the RH End to the Rails and Toeboards as shown in the drawing below. • Lock the RH End to the Rails and Toeboards by tightening all the Cams in the Rails and Toeboards in a clockwise direction RH End LH End...
- Page 11 THE EDEN COLLECTION STEP 7 – ATTACH TOP TO ENDS • Fit it t h e To p o n t o t h e E n d s a s s h o w n b e l o w. The Connecting Bolts in the Top will fit into the Cams in the Ends.
- Page 12 THE EDEN COLLECTION STEP 8 – BACK PANEL • Slide the Back Panel into place between the two grooves in the Ends. This will fit into the groove in the Top. • Screw the Back Panel to the Brace Rail as shown below, using the H7 Panhead Screws and the pre-drilled holes. Carefully stand the Tallboy upright.
- Page 13 THE EDEN COLLECTION ASSEMBLE THE DRAWERS Your tallboy has five drawers. All Drawers are constructed from the same parts and are therefore assembled the same way. STEP 9 - INSTALL HARDWARE /DRAWERS • Install the hardware in the drawer parts as shown below NOTE: Be sure that the arrow on the Small Cam points to the end of the drawer side nearest it.
- Page 14 THE EDEN COLLECTION STEP 10 – sides and bottom Lay the Drawer Front face down on a smooth, clean surface. • Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in the Drawer Front. •...
- Page 15 THE EDEN COLLECTION STEP 12 - ATTACH THE DRAWER SLIDES Turn the drawer upside-down as shown and attach the Drawer Slides (DR and DL) with the four H6 Small Woodscrews • as shown below. Ensure that the ends of the slides without the wheels are hard up against the back of the Drawer Front as shown.
- Page 16 2. Slide unit sideways to cover the Strap once installed. Please note: This is a precautionary measure. The use of tip-over restrains may only reduce but not eliminate the risk of tip over. Compac Furniture can take no responsibility. EDEN 5 Drawer Tallboy CONGRATULATIONS, YOUR IS NOW COMPLETE.
