MUSICIAN PISCES User Manual

Hifi digital interface

Hide thumbs

Table of Contents

Quick Links

Download this manual

PISCES

高保真数字界面

MUSICIAN

P I S C E S

PCM

DSD

44.1K

SETUP

EX.CLOCK

I2S

48K

16X

Table of Contents

Need help?

Do you have a question about the PISCES and is the answer not in the manual?

Questions and answers

Summary of Contents for MUSICIAN PISCES

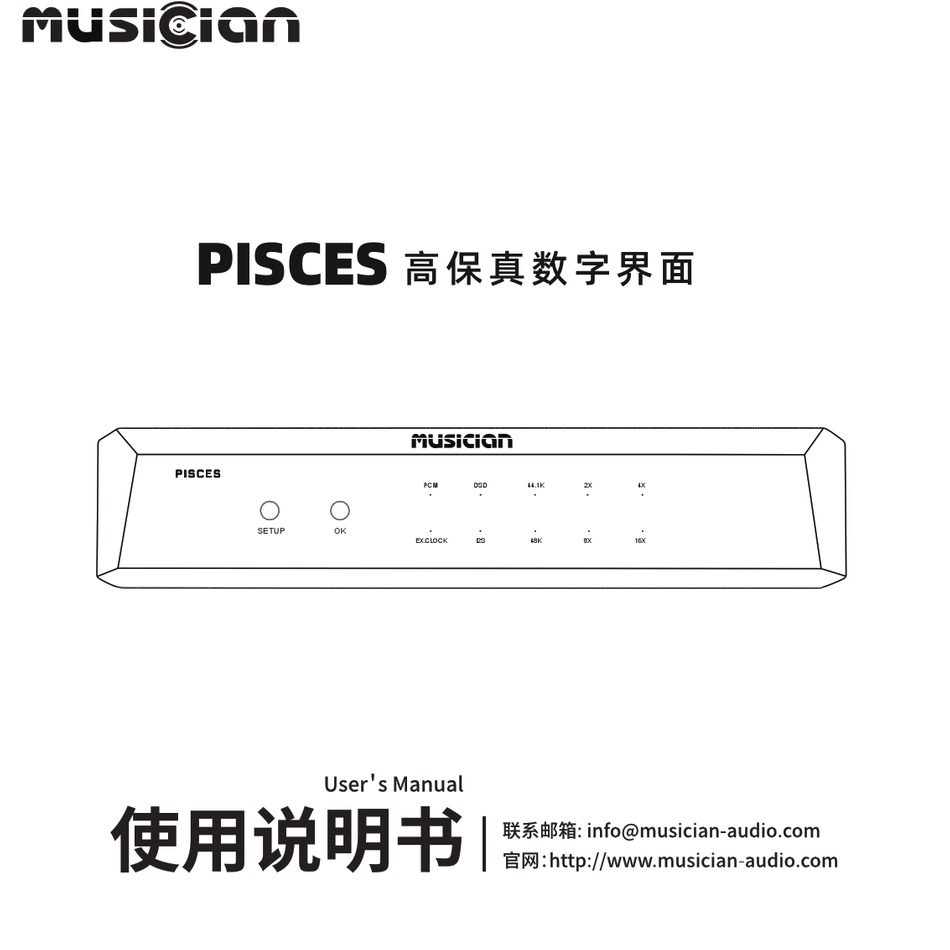

Page 1 PISCES 高保真数字界面 MUSICIAN P I S C E S 44.1K SETUP EX.CLOCK...
Page 3 产品信息技术亮点 PISCES 专有 FPGA DSP 处理架构内部晶振的 FIFO 缓冲器和时钟恢复 TCXO温补有源晶振 O型单晶铜变压器光隔离全数字输入接口基于 STM32F446 高级 AMR 的 MCU 的专有 USB 音频解决方案适用于 Windows 平台的许可 Thesycon USB 驱动程序 Mac 和 Linux 上的无需驱动程序支持外部时钟输入 ( 45.1548MHz/49.152MHz ) 同轴/AES/OPT 输入和输出支持DSD64(DoP)。 USB 输入和 I²S 输出上支持DSD512...
Page 4 所有输出支持24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz。 USB输入支持768KHz，I²S 输出支持384KHz。数字输入 USB2.0 Type B 外部时钟输入 45.1548MHz ，49.152MHz 数字输出 AES/EBU、I²S HDMI LVDS 、 I²S RJ45 LVCMOS、光纤、同轴请注意，双鱼座的 RJ45/HDMI 端口不是典型的网络/多媒体 RJ45/HDMI 端口。它们是专门构建的 I²S 端口。请不要将其连接到典型的多媒体 HDMI 端口 (即蓝光播放器/电视等)/以太网网络。...
Page 5 面板信息 MUSICIAN P I S C E S 44.1K SETUP EX.CLOCK DIGITAL OUT DIGITAL IN ！ 115V/60Hz AC INPUT 230V/60Hz I2S-A I2S-C AES/EBU COAX 49.152M 45.1584M SETPU按钮 AES/EBU输出 USB输入确认按钮光纤输出电源开关 HDMI输出同轴输出电源输入网口输出时钟输入...
Page 6 驱动双鱼座配备了由STM32F446驱动的专有USB音频解决方案, 支持24bit/768KHz PCM数据流和本级处理的DSD到DSD512. Windows 平台的许可 Thesycon USB 驱动程序下载并安装适用于 Windows 的 Thesycon USB 驱动程序 1. 将标准USB电缆从PC USB端口连接到USB输入 2. 选择 USB 输入。USB 输入 LED 应亮起 3. 检查PC音频设备面板，检测是否连接到机器 Mac 和 Linux 上的无需安装驱动程序无需安装驱动，连接即可使用连接后在声音设置，检测是否连接到机器...
Page 7 LED灯指示灯灭：关机状态/输入信号不是PCM音频灯灭：关机状态/输入信号不是DSD音频灯亮：开机状态/输入信号为PCM音频灯亮：开机状态/输入信号为DSD音频 EX.CLOCK 灯灭：DSD左右声道为L/R 灯灭：内部时钟 / 灯亮：外部时钟灯亮：DSD左右声道为R/L 2x / 4x / 8x / 16x 44K1 / 48K 根据输入信号的采样率变化而变化根据输入信号的采样率n倍频率变化而变化灯灭：输入信号不是该采样率灯灭：输入信号不是该采样率的n倍频率灯亮：输入信号是该采样率灯亮：输入信号是该采样率的n倍频率...
Page 8 按键说明 SETUP 按键在主页模式：按下按键并且PCM灯闪+DSD灯闪进入菜单模式在菜单模式：按下按键循环选择菜单列表在功能设置：按下按键无反应 OK 按键在主页模式：按下按键无反应在菜单模式：按下按键进入相对应的菜单列表中的设置在功能设置：按下按键切换功能无动作在菜单模式或功能设置中大概6秒时间按键无动作则返回主页模式，在USB开始升级时不可返回...
Page 9 功能设置说明功能设置按键操作 LED灯指示按下SETUP按键进入菜单模式并且正确按照LED灯指示则为选中外部时钟功能可循环按下SETUP按键 PCM灯闪+DSD灯闪+EX.CLOCK灯闪设置外部时钟功能设置选中外部时钟功能设置后再按下OK按键则进入外部时钟功能设置并且正确按照选中功能设置后按下OK按键 PCM灯闪+DSD灯闪+EX.CLOCK灯亮 LED灯指示 44K1灯灭或48K灯灭：关闭外部时钟在外部时钟功能设置中按下OK按键再按OK按键进行切换进行外部时钟功能的关闭和开启 44K1灯亮或48K灯亮：开启外部时钟按下SETUP按键进入菜单模式并且正确可循环按下SETUP按键 PCM灯闪+DSD灯闪+I2S灯闪按照LED灯指示则为选中I2S引脚功能设置 I2S引脚功能设置选中I2S引脚功能设置后再按下OK按键则进入I2S引脚功能设置并且正确按照选中功能设置后按下OK按键 PCM灯闪+DSD灯闪+I2S灯亮 LED灯指示在I2S引脚功能设置中按下OK按键进行 44K1(DATA)，2X(BCK)，4X(LRCK)灯灭为正再按OK按键进行切换 I2S引脚切换 44K1(DATA)，2X(BCK)，4X(LRCK)灯亮为负按下SETUP按键进入菜单模式并且正确按照LED灯指示则为选中DSD左右声道可循环按下SETUP按键 PCM灯闪+DSD灯闪+48K灯闪功能设置选中DSD左右声道功能设置后再按下OK DSD左右声道功能设置...
Page 10 功能设置按键操作 LED灯指示按下SETUP按键进入菜单模式并且正确按照可循环按下SETUP按键 PCM灯闪+DSD灯闪+8X灯闪 LED灯指示则为选中USB升级功能设置选中USB升级功能设置后再按下OK按键选中功能设置后按下OK按键 PCM灯闪+DSD灯闪+8X灯亮则进入USB升级功能设置并且正确按照 LED灯指示 USB升级功能设置 PCM灯闪+DSD灯闪+2X+4X+8X+16X灯亮开始升级，在此状态时大概6秒时间按键无动作不可返回主页模式在USB升级功能设置中按下OK按键再按OK按键进行切换进行USB升级和退出USB升级的切换 PCM灯闪+DSD灯闪+8X灯亮退出升级，在此状态时大概6秒时间按键无动作可以返回主页模式...
Page 11 I2S引脚 *对应LED指示灯 I2S引脚 44K1(DATA) 2X(BCK) 4X(LRCK) 8种模式灭:DATA+ 灭:BCK+ 灭:LRCK+ 亮:DATA- 灭:BCK+ 灭:LRCK+ 灭:DATA+ 亮:BCK- 灭:LRCK+ 亮:DATA- 亮:BCK- 灭:LRCK+ 灭:DATA+ 灭:BCK+ 亮:LRCK- 亮:DATA- 灭:BCK+ 亮:LRCK- 灭:DATA+ 亮:BCK- 亮:LRCK- 亮:DATA- 亮:BCK- 亮:LRCK-...
Page 12 双鱼座I2S引脚请注意：I2S连接没有行业标准。不同的品牌/产品有不同的I2S线序。如果您想使用 I²S 连接，必须正确配置与 DAC 匹配的 I²S 引脚。I²S 引脚分配不匹配可能导致静态/噪声输出。过高的噪音输出电平可能会损坏扬声器/耳机驱动器。 I²S与DAC匹配的建议 1. 连接 I2S 电缆（优质HDMI电缆 <3ft/1m） 2. 调低音量（能听见的最小音量） 3. 播放音乐 (首先是PCM，然后是DSD） 4. 运行 DAC 的 I²S 设置 ( 详情请咨询DAC制造商 ) 5. 播放PCM和DSD时，其中一种模式应与播放的源相匹配建议进行音频音调测试，以确保L/R通道，同相/异相的正确。...
Page 13 70mm (含底座) 250mm 基本参数功能按键：SETUP按键，OK按键输入方式：USB2.0 Type B、外部时钟 (45.1548MHz / 49.152MHz) 输出方式：AES/EBU、I²S HDMI LVDS / I²S RJ45 LVCMOS、光纤、同轴电源输入：100-240VAC，50/60Hz（全球电压）裸机尺寸：250mm*235mm*70mm(高度包含底座) 裸机重量：3.5KG 包装重量：4.5KG...
Page 15 PISCES HIFI Digital Interface MUSICIAN P I S C E S 44.1K SETUP EX.CLOCK...
Page 16 Guangzhou LEZHIJIA Technology Co.,Ltd.(MUSICIAN Audio) was formally establishedin 2020. The R & D team is formed by a group of enthusiasts with more than 20 years of audio research and development experience. It is committed to the following product: R2R discrete balanced decoders, balanced headphone ampliﬁers, balanced ampliﬁers, balanced pre-ampliﬁers,...
Page 17: Product Information
Product information Technical Highlights PISCES Proprietary FPGA DSP Processing Architecture FIFO Buﬀer and Reclock with Internal Crystal TCXO temperature compensated active crystal oscillator O-type single crystal copper transformer Optical Isolated All Digital Input Interfaces Proprietary USB Audio Solution via STM32F446 Advanced...
Page 18: Digital Input
Digital Output AES/EBU, I²S HDMI LVDS/I²S RJ45 lvcmos, Optical, Coaxial Please note that the RJ45/HDMI ports of PISCES are not typical network/multimedia RJ45/HDMI ports. They are purpose-built I²S ports. Please do not connect it to the typical multimedia HDMI port...
Page 19: Panel Information
Panel information MUSICIAN P I S C E S 44.1K SETUP EX.CLOCK DIGITAL OUT DIGITAL IN ！ 115V/60Hz AC INPUT 230V/60Hz I2S-A I2S-C AES/EBU COAX 49.152M 45.1584M SETUP button AES/EBU output USB input OK button Optical output Power Switch Coaxial output I²S HDMI LVDS...
Page 20 Driver PISCES is equipped with a proprietary USB audio solution driven by STM32F446, which supports 24bit/768khz PCM data stream and DSD to DSD512 processed at this level. Licensed Thesycon USB Driver For Windows Platform Download and install Thesycon USB Driver for Windows.
Page 21: Led Indicator
LED indicator Light off: Shutdown status/ Light off: Shutdown status/ Input signal is not PCM audio Input signal is not DSD audio Light flashing: Power on status/ Light flashing: Power on status/ Input signal is PCM audio Input signal is DSD audio EX.CLOCK Light off: Internal clock Light off: left and right channels of DSD are L/R...
Page 22: Button Description
Button description SETUP Button In home mode: press the button and the PCM light ﬂashes + DSD light ﬂashes to enter menu mode In menu mode: In menu mode: press the button to cycle through the menu list In function setting: no response when pressing the button OK Button In home mode: no response when pressing the button In menu mode: Press the button to enter the setting of the corresponding menu list...
Page 23: Function Settings
Function setting description Function Settings Button Operation LED indicator Press the SETUP button to enter the menu mode and correctly follow the PCM light ﬂashes + DSD light ﬂashes + Press the setup button repeatedly LED indicator to select the external Ex.clock light ﬂashes clock function setting Select the external clock function setting...
Page 24 Function Settings Button Operation LED indicator PCM light ﬂashes + DSD light ﬂashes + Press the setup button to enter the menu Press the setup button 8X light ﬂashes mode, and correctly follow the LED indicator repeatedly to select the USB upgrade function setting Select the USB upgrade function setting, PCM light ﬂashes + DSD light ﬂashes + Select the function setting...
Page 25 I2S PIN *Corresponding LED indicator I2S PIN 44K1(DATA) 2X(BCK) 4X(LRCK) 8 Modes 灭:DATA+ 灭:BCK+ 灭:LRCK+ 亮:DATA- 灭:BCK+ 灭:LRCK+ 灭:DATA+ 亮:BCK- 灭:LRCK+ 亮:DATA- 亮:BCK- 灭:LRCK+ 灭:DATA+ 灭:BCK+ 亮:LRCK- 亮:DATA- 灭:BCK+ 亮:LRCK- 灭:DATA+ 亮:BCK- 亮:LRCK- 亮:DATA- 亮:BCK- 亮:LRCK-...
Page 26 PISCES I2S Pin There is no industry standard of I2S connection. Diﬀerent brand/product has diﬀerent I2S line order. If you would like to use the I²S connection, the I²S pinout matching with the DAC has to be conﬁgured correctly. Mismatch of I²S pinout may result in static/noise output.
Page 27: Basic Parameters
70mm (including foot pad) 250mm Basic parameters Function keys: SETUP Button, OK Button Input mode: USB2.0 Type B、External clock (45.1548mhz/49.152mhz) Output mode: AES/EBU , I²S HDMI LVDS / I²S RJ45 lvcmos, Optical , Coaxial Power input: 100-240V AC, 50/60hz (Global voltage) Machine size: 250mm*235mm*70mm (Height includes foot pad) Machine weight: 3.5kg Package weight: 4.5kg...
Page 28: Warranty
Warranty We take pride in the quality of our products with strict quality control checks. To give you more conﬁdence, all of our products are provided with a three-years warranty. Within the ﬁrst 30 days from the date of purchase, most items can be returned for refund or exchange if meet the following conditions.
