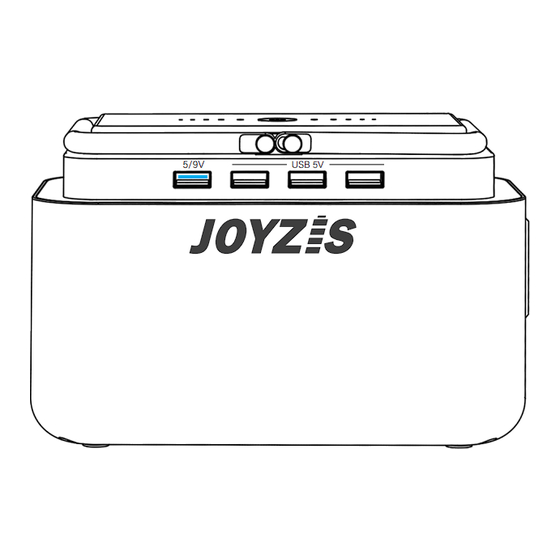

- Page 1 User Manual Portable Power Station Model No. BS100 Get 24/7 Customer Service & Extended Warranty to 24 Months Use Camera or QR Scanner to Scan Or Visit: https://joyzis.afterservice.vip...
-
Page 2: Table Of Contents
Contents Product Description ----------------------------------------------- -------------------------------------------------------- Package List ------------------------------------------------------ Specifications ------------------------------------------------- Safety Guidelines -------------------------------------------------------- Product Info ----------------------------------------- Working Time Reference --------------------------------------------------------- How to Use ------------------------- Recharging the Portable Power Station Information about Toxic and Harmful Substances ------------------------------------- and Elements in the Product ------------------------------------------------- After-sales Service ----------------------------------------------------------... -
Page 3: Product Description
Because of different production lots, there may be a few differences in the product’ s appearance, but they will not affect the actual use. Product Description Joyzis BS100 portable power station is a multi-functional emergency energy storage power supply, using UL authoritative certification of automotive-grade power cells and high-efficiency SPWM inverter conversion technology, which is more durable than ordinary cells and has a longer cycle life. -
Page 4: Package List
Please check whether all accessories are complete. If any accessories are missing, please feel free to contact us via email: service.joyzis@outlook.com User Manual Portable Power Station Model No. BS100 Get 24/7 Customer Service & Extended Warranty to 24 Months Use Camera or QR Scanner to Scan Or Visit: https://joyzis.afterservice.vip... -
Page 5: Specifications
Specifications Model BS100 Size 10.87 x 7.44 x 5.91 inches Black Capacity 40500mAh/150Wh Color DC 3.5 Input DC 5.5 Output 12V/10A Adapter 15V/2A 3*USB 5V/2.1A; 1*USB 5V/3A 9V/2A USB Output AC Output 100W/110V 60HZ sine wave Battery Lithium-ion Battery Illumination... - Page 6 Do not turn on the product when it is wet. If the product is already turned on, turn it off immediately. If the product cannot be turned off, please keep the current status and contact the After-sales Service Center. Do not use this product in places with flammable and explosive substances, such as gasoline, gas, chemicals, mines, etc., to prevent danger.
- Page 7 Product Safety Guidelines Product Safety Guidelines Do not use a charger with a malfunction or mismatch output voltage. Please use the original charger. Use of incompatible or substandard chargers may cause danger or damage the product. Do not use chargers without safety protection to charger the product. The charging time shall not exceed the time required for charging the product.
- Page 8 Product Storage Do not leave the product in extremely cold or hot place (below -140°F or above 140°F). Do not store the product on a heating device or cooling vent. Please avoid the product getting wet or being stored in moist places. Please keep it away from flammable liquids, gases or explosive materials.
-
Page 9: Product Info
NOTE: Do not disassemble, repair or modify the product by yourself, otherwise the product will not be covered by the warranty. If there is a malfunction, please contact the After-Sales Service Center. Product Info 1. Power ON/OFF Button 2. USB 5V Port 3. - Page 10 1. Power ON/OFF Button Press the Power Button before using any function of the Joyzis Portable Power Station. You can use the DC 3.5 Input Port to charge your devices. If you want to use other functions, you need to press respective buttons by referring to more details in the following paragraphs.
- Page 11 7. DC 3.5 Input Port By using a car charger cable or a 15-18V solar panel (you need to buy the solar panel separately), you can charge the power station via a 3. 5mm*1.35mm cable plugged into the DC 3.5 input port. Further, you can also use the power cable( connected with the AC adapter)inside the package to charge the power station from the wall outlet.
-
Page 12: Working Time Reference
Working Time Reference Approximately, working time=150WhX0.85/operating wattage of your device. For example, if your CPAP device has a power of 70W, then its working hours approximately equal to 150Wh multiplied 0.85 divided 70W, which equals to 1.8 hours. 1.8H 2.1H 2.1H Phone(2500mAh) 12 Times... -
Page 13: How To Use
Step 1: Pressing the power button, the battery power display lamp will automatically light up and display the remaining power. Step 2: Insert the plug of the device into Joyzis “AC Output” socket, and then press the “AC ON/OFF Button” . - Page 14 The adapter specifications and voltage standards of each country are different. Please use the adapter that conforms to this product specification to charge, otherwise it may cause dangerous situation. If the power supply is insufficient, please charge Joyzis immediately for next use. How to Use the DC Output Port...
- Page 15 DC fans, LED lights, vacuum cleaners, air pumps, electric wrenches, and small vehicle refrigerators,etc. How to Use the Light Joyzis comes with an Illumination function. Click the “LIGHT Button” to turn on the LED lights, and then click the “LIGHT Button” again to switch the available modes. The sequence is: Constant Light Mode→Fast Flash Mode→SOS (internationally...
-
Page 16: Recharging The Portable Power Station
Recharging the Portable Power Station Recharging Time Wall Charger Around 6 Hours Car Charger Around 7 Hours Around 6 Hours 60W Solar Panel (Optional) (Depending on the Weather) How to recharge the Portable Power Station Please read the following notes first: The accessory can only be used with this product. - Page 17 AC/DC Power Adapter 60Hz 0.75max Example 2: Charging through 15-18V solar panel (not included) 15-18V Example 3: Charging through car outlet DC 3.5 IN Car Charger Car Charge Cable NOTE: Please start the car before connecting the car charger to Joyzis.
-
Page 18: Information About Toxic And Harmful Substances
Information about Toxic and Harmful Substances or Elements in the Product Toxic and Harmful Substances or Elements Polybrominated Polybrominated Hexavalent Lead Cadmium Biphenyls Diphenyl Ether Chromium Note: 0 indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in the 2002/95/EC (ROHS) standard. -
Page 19: After-Sales Service
After-sales Service Warranty Period The warranty period for Joyzis products is 365 days, measuring from the date of confirming receiving. Repair and Replace Joyzis will provide repairing and replacing service for the faulty BR300 power station for free within the warranty period. -
Page 20: Contact Us
If you have any problems or need any help when using the product, please don’ t hesitate to contact us via the email address: service.joyzis@outlook.com, and we will help you solve the problems as soon as possible. Get 24/7 Customer Service & Extended...
