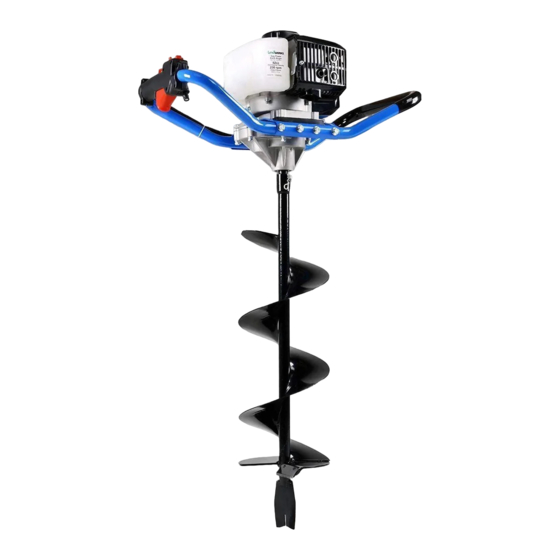

Gas Powered Earth Auger
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 06/11/19
Advertisement
Table of Contents
Summary of Contents for Landworks GUO021-FBA

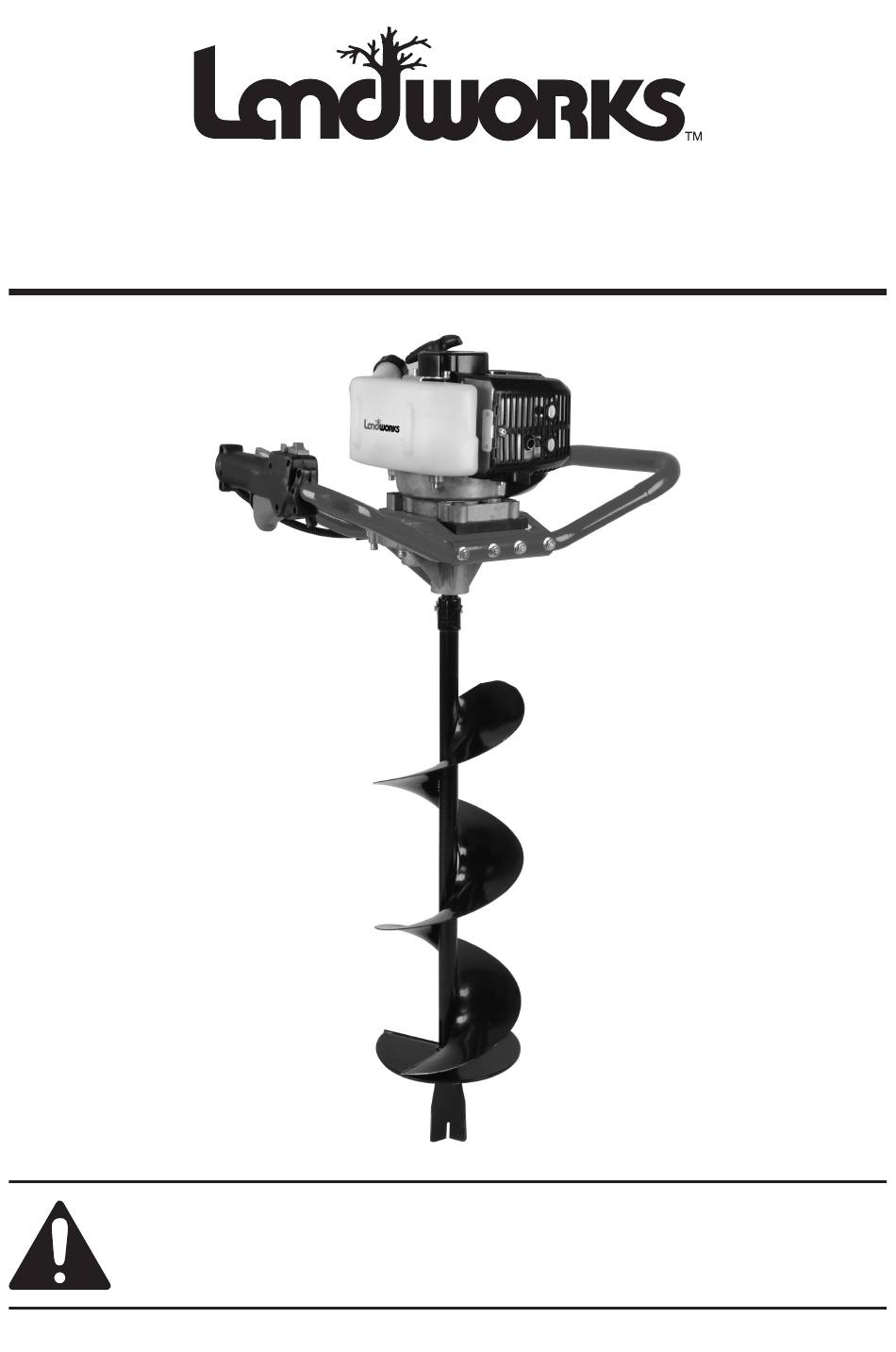

- Page 1 Gas Powered Earth Auger Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 2 IMPORTANT SAFEGUARDS For your own safety, always follow these basic precautions when using this appliance. 1. Read the user Manual carefully for operating instructions. Read all instruc- tions in this manual before use. 2. DO NOT use this product for anything other than its intended purpose. 3.
- Page 3 TECHNICAL DETAILS Engine type 2-stroke Displacement 51,7cc Engine power 1.3kw/7000rpm Starter hand pull Ignition system electronic Fuel tank capacity Mixing ratio gasoline:oil 30:1 Drill length 760mm Drill diameters 200mm Reduction gear ratio 30:1 weight (without drill) 8.5 kg Technical changes excepted. IMPORTANT SAFETY INFORMATION This is the safety alert symbol.
- Page 4 OPERATING PRECAUTIONS 1. Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell. Never use inside a home or garage, even if doors and windows are open. 2. Do not lock trigger on. Always use with both hands on handles. 3.
- Page 5 28. Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. 29. Parts, especially exhaust system components, get very hot during use. Stay clear of hot parts.
- Page 6 Components (Fig. I) Bar holder Spark plug cap Air filter Recoil starter Fuel tank cap Fuel tank Operating handle Drill adapter SAFETY INSTRUCTIONS Our earth auger shall be shall be used only for drilling holes into light/moderate soil at moderate and non-slippery terrain for works like fencing, planting and forestation. We can not be held responsible for there was per- formed manipulation or adjustments to the machine.
- Page 7 5. Use proper safety clothing and devices when operating the machine (safety gloves, safety goggles, ear protectors, safety shoes...) 6. Ensure yourself that there are neither water or gas pipes nor electric lines installed under- ground in the working area. Ensure yourself that there are no loose objects lying around in the working area Eliminate high grass, bushes etc.
- Page 8 MAINTENANCE ATTENTION - DANGER! No cleaning, upkeep, checks or maintenance when machine is running Be safe: Shut off the machine, let it cool down, disconnect spark plug cap from spark Plug. The machine does not require intense maintenance. However, to ensure a long lifespan, we strongly recommend following the upkeep and maintenance plan.
