Multi Channel Dante Interface
Preface:
Thank you for purchasing our product. Please read this manual to be familiar with the product.
Note:
This manual uses the full function audio processor matrix as an example and can be used as a reference for other
processors.
This manual is only for user operation instructions, not for maintenance service purposes.
This user manual is copyrighted by the manufacturer. No part or all of this manual may be used for commercial
purposes without permission
S H E N
Z H E N
F H B
: 0086-18617093593
: sales@fhbaudio.com
: www.fhbaudio.com
: No.312, 2712 SongBai Road, LongTeng Community, Shiyan Street, Baoan District, Shenzhen
City, Guangdong, China.518108
User Manual
DB-0808,DB-1616
A U D I O
T E C H N O L O G Y
C O . ,
L T D
Advertisement
Table of Contents
Summary of Contents for FHB Audio DB-0808
- Page 1 User Manual Multi Channel Dante Interface DB-0808,DB-1616 Preface: Thank you for purchasing our product. Please read this manual to be familiar with the product. Note: This manual uses the full function audio processor matrix as an example and can be used as a reference for other processors.
- Page 2 Product Contents Contents 1、Introduction ............................2 2、Specification ............................3 3、Packing List ............................4 4、Interface Description ..........................4 4.1 Front Panel ............................4 4.2 Back Panel ............................5 4.3 Products Size ..........................5 5、 User Guider ............................6 5.1 Main UI interface ..........................6 5.2 Input Interface ..........................
- Page 3 1.Product Introduction DB series products are audio interface devices based on Dante international general protocol, which can input analog audio signals, convert them into digital audio signals, and route them to any Dante audio transmission network devices through Dante protocol, achieving features such as high quality, long distance, low delay, strong anti-interference ability, and convenient networking.In addition, it supports access to any Dante network digital audio, conversion to analog audio signal output, and access to traditional analog audio devices such as mixing consoles, power amplifiers, and processors.The device adopts high quality AD/DA signal conversion chip, provides 48V phantom power supply,...
- Page 4 2.Specification Model No. DB-0808,DB-1616 DB-0808 (8 analog inputs, 8 analog outputs) + 8 × 8 Dante Channel DB-1616 (16 analog input, 16 analog output)+ 16 × 16 Dante Sensitivity 0dB ~ 51dB,3dB/level Digitalizing bit 24bit Sampling rate Frequency response (20~20KHz) 20HZ ~ 20K HZ ,±0.5dB...

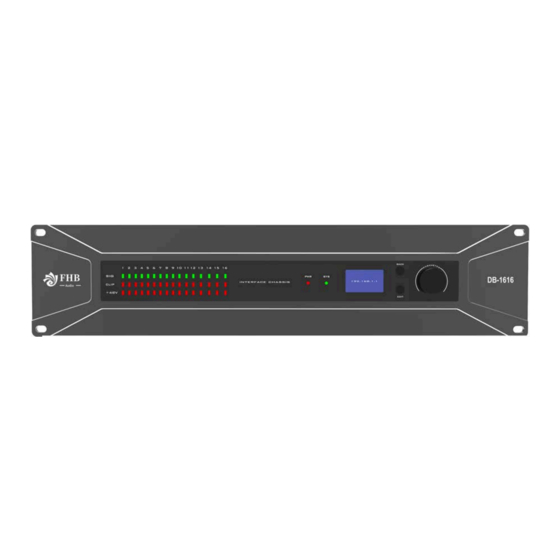

- Page 5 3.Packing List Device Power Adapter User Guider 1pcs 1psc 1Pcs 4.Device Interface 4.1 Front panel (1) Signal indicator, clipping indicator, phantom power supply indicator; (2) Power indicator, the light indicates that the power supply is normal, otherwise the power supply is abnormal; (3) Status indicator, blinking indicates that the equipment is running normally, otherwise the equipment fails;...
- Page 6 4.2 Rear panel ①12V DC power port ② Power switch ③Dante network interfaces ④ETHERNET: 10M/100M ETHERNET interface, used to connect the control end (PC, router, etc.); ⑤RS232: central control command interface RX: receive data,TX: send data,G: ground; ⑥ Input channel; ⑦...
- Page 7 5. User Guider 5.1 Main Interface 5.2Input Interface Phantom power supply: 48V voltage for capacitive microphone Input mute: Mute the input channel Sensitivity: input channel sensitivity adjustment, each step is 3dBfs 5.3 Output Interface Output mute: Mute the output channel...
- Page 8 5.4 Configuration Interface Network configuration: Used to manually configure or automatically obtain network IP addresses Help information: View device firmware versions and Dante configurations 5.5 Using Description Connect the analog signal source to the input port of the device and configure routes using the third-party control software Dante Controller.(See below for details)
