  • Page 2 Roborock Empty Wash Fill Dock User Manual Read this user manual carefully before using this product and store it properly for future reference.

  • Page 4: Table Of Contents

    English Contents 04 IMPORTANT SAFETY INSTRUCTIONS 04 WARNING 06 FCC/IC Statement 08 Parts List 08 Product Overview 10 Installation 12 Instructions for Use 13 Routine Maintenance Frequency 13 Routine Maintenance 17 Basic Parameters 18 Troubleshooting 19 Disposal...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING To reduce the risk of fire, electric shock, or injury: •...
  • Page 6 WARNING without supervision. • Do not use wet cloth or liquids for cleaning the charging contacts. • Do not dismantle, repair or modify the battery or charging dock. • If the dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures. •...

  • Page 7: Fcc/Ic Statement

    Compliance Information Product Name Empty Wash Fill Dock Product Model EWFD01LRR, EWFD02LRR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 8 FCC/IC Statement Warning Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 9: Parts List

    Parts List Product Overview Cable Outlets Power Port Cable Slot Dock Dock Base (Disposable Dust Bag Pre-Installed) Disposable Dust Bag Power Cable...

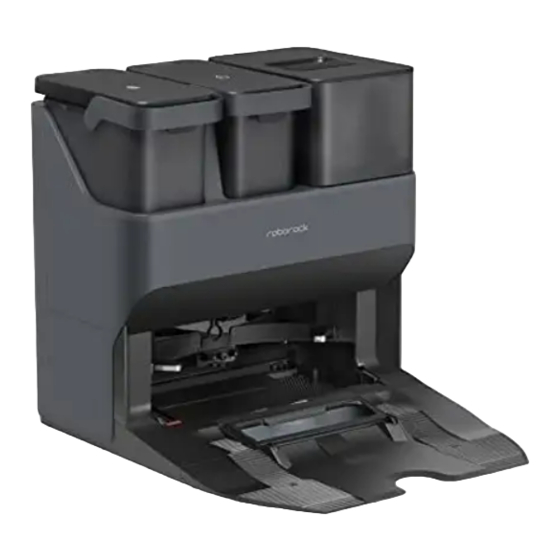

  • Page 10 Product Overview Dustbin Water Tank Lid Water Tank Handle Clean Water Tank Water Tank Latch Dirty Water Tank Status Indicator Light • Pulsing: Emptying/Washing Mop • Red: Dock error • Light off: Charging/Powered Off Dock Location Beacon Water Filter Charging Contacts Dock Base Washing Strip High-Speed Maintenance Brush...

  • Page 11: Installation

    Installation Assembly 3. Connect the power cable to the back of the dock, and keep excess cable inside the storage slot. 1. Place the dock on a hard and flat floor, and remove the foam used to secure the high-speed maintenance brush components in shipment at the bottom.
  • Page 12 Installation Notes: 2. Remove the plate covering the air inlet in the robot. • If the power cable hangs vertically to the ground, it may be caught by the robot, causing the dock to be moved or disconnected. • The dock indicator is on when the dock is powered on, and off when the robot is charging. •...

  • Page 13: Instructions For Use

    • If necessary, auto-emptying can be disabled in the app. Notes: • To prevent corrosion or damage, only use the Roborock branded floor cleaner in the water tank. Manually Activated Emptying • To avoid water tank deformation, do not place hot water in the tank.

  • Page 14: Routine Maintenance Frequency

    Routine Maintenance Routine Maintenance Frequency Moving the Dock Remove the water tanks and the dustbin before moving the dock. To ensure optimal performance of the dock, refer to the following Grip the handle on the back with one hand and the inner side of table for routine maintenance: the front, as shown.
  • Page 15 Routine Maintenance Charging Contact Areas 2. Remove any entangled objects in the high-speed maintenance brush and rinse it clean. Reinstall the brush and latch it in Use a soft, dry cloth to wipe the charging contacts on the dock. place. Water Filter Unlock the water filter and remove it for washing.
  • Page 16 Routine Maintenance Replacing the Disposable Dust Bag 4. Clean around the filter with a dry cloth. Note: Replace the disposable dust bag when it is full. 1. Lift the dustbin. 2. Remove the bag vertically as shown. 5. Slot in a new disposable dust bag as shown. Slide until it reaches the bottom of the slot.
  • Page 17 Routine Maintenance Cleaning the Air Duct 3. Carefully place the the dock upside down on a hard floor covered with a soft towel. Follow the following steps to clean the air duct and avoid blockages. 1. Remove the clean water tank, dirty water tank, and dustbin. 4.

  • Page 18: Basic Parameters

    Routine Maintenance Basic Parameters 5. Wipe the air duct and duct cover with a dry cloth. Empty Wash Fill Dock Name Empty Wash Fill Dock Model EWFD01LRR, EWFD02LRR Rated Input Voltage 120VAC Rated Frequency 50-60Hz Rated Input (Dust Collection) 9.5A...

  • Page 19: Troubleshooting

    3. Check tank placement and refill or empty as required. 4. Check that the water filter has been correctly installed. If the problem persists after using the recommendations in the table above, contact our support team at: support@roborock.com (United States/Canada/Non-Europe) 1-855-960-4321 (United States only) 1-833-421-1915 (Canada only)

  • Page 20: Disposal

    Disposal Correct disposal of this product, should not be disposed with other household wastes. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
  • Page 21 Address of Manufacturer: Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No.8 Heiquan Road, Haidian District, Beijing, P.R. China For more product information, visit our website: www.roborock.com For after-sales support, contact our support team at: support@roborock.com (United States/Canada/Non-Europe)
