Logic LG-HMS4x4-H User Manual

4 x 4 hdmi 2.0 18 gbps matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4 x 4 HDMI 2.0 18 Gbps Matrix Switcher
Model No. LG-HMS4x4-H
Version: LG-HMS4x4-H_2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LG-HMS4x4-H and is the answer not in the manual?

Questions and answers

Related Manuals for Logic LG-HMS4x4-H

Summary of Contents for Logic LG-HMS4x4-H

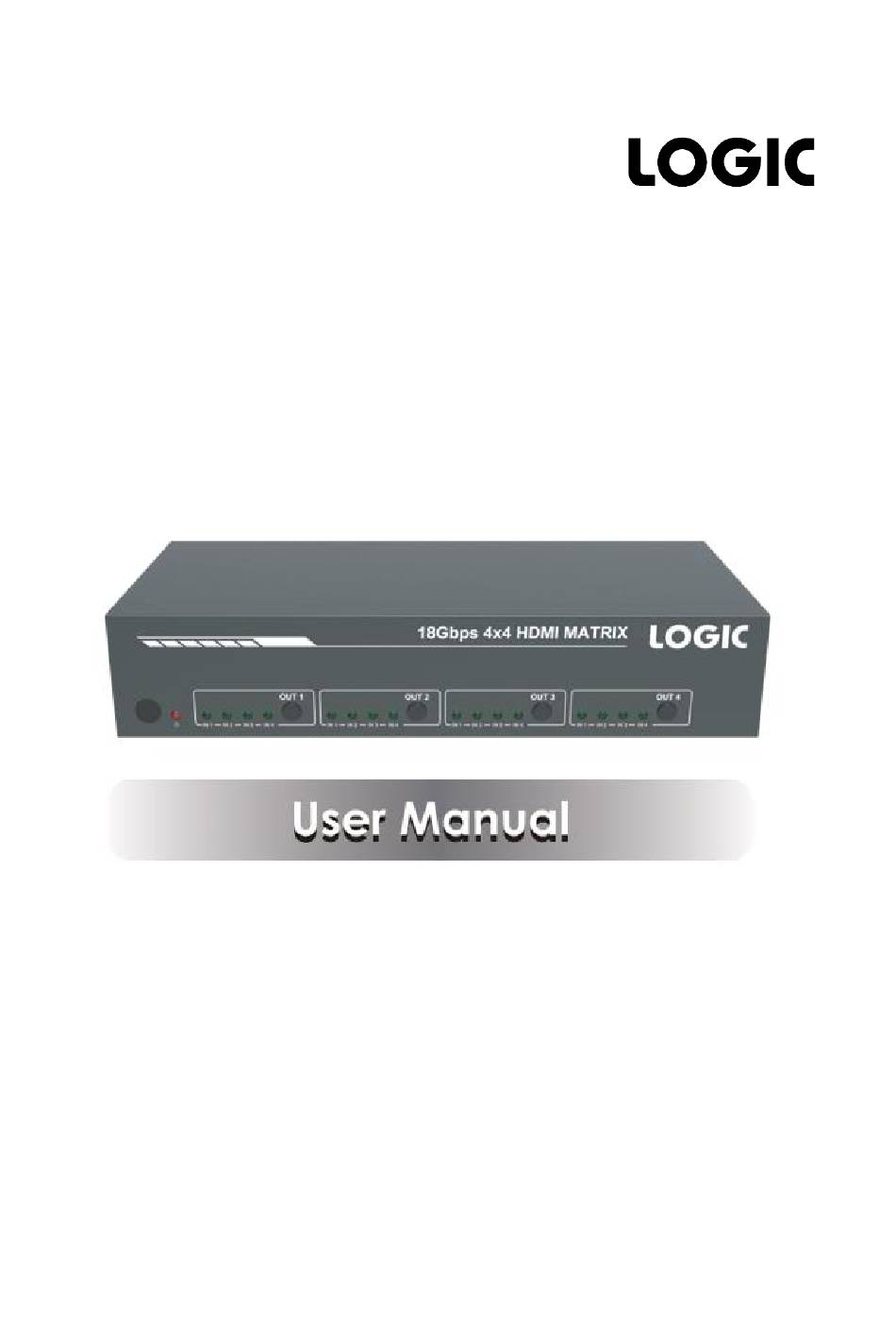

  • Page 1 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Model No. LG-HMS4x4-H Version: LG-HMS4x4-H_2021...
  • Page 2 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher SAFETY PRECAUTIONS For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Table Of Contents

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Table of Contents INTRODUCTION ............................1 FEATURES ..............................1 PACKAGE CONTENTS ..........................1 SPECIFICATION ............................2 OPERATION CONTROLS AND FUNCTIONS ....................3 ............................... 3 RONT ANEL ..............................3 ANEL ........................4 ONNECTING TO THE WITCHER ............................
  • Page 4 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher ........18 www.logicav.in...

  • Page 5: Introduction

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Introduction This high-performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output support up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p.

  • Page 6: Specification

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Specification Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 Output Scaling...

  • Page 7: Operation Controls And Functions

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Resolution / Cable 4K60 - 4K30 - 1080P60 - Length Feet / Feet / Meters Feet / Meters Meters HDMI IN / 10 ft / 3 m 32 ft / 10 m 42 ft / 15 m The use of “Premium High-speed HDMI”...

  • Page 8: Connecting To The Switcher

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Name Function Description TCP/IP (RJ45) Control port for TCP/IP control or accessing the built-in Web GUI. RS-232 3-pin pluggable connector for RS-232 control of the Switcher. IR EXT IR eye input for IR control of the Switcher. Coaxial Audio OUT 1 RCA connector for coaxial audio output from HDMI OUT 1 / OUT 2 / OUT 3 / OUT...

  • Page 9: Selecting Inputs

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher The Switcher is in standby mode, this state can be changed by using API commands or IR Remote, or from the Web GUI interface. 5.4.2 Selecting Inputs Manual Selection of the inputs is done by briefly pressing the OUT 1 / OUT 2 / OUT 3 / OUT 4 button repeatedly for that channel until the desired input is selected.
  • Page 10 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Note these six pages are only accessible in Admin mode, when User mode is used only the Status and Video pages are available. To access the Web interface, enter the IP address of the switcher into the address bar of any web browser. The default IP address is 192.168.1.100.
  • Page 11 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher After entering the IP address the following log in screen will appear: Select the Username from the list and enter the password. The default passwords are: Username User Admin Password user admin After entering the log in details, click the LOGIN button and the following Status page will appear.
  • Page 12 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher The Power on button changes the power status of the Switcher between On and Stand-by mode. ▪ • Video Page The Video page allows selection of the inputs source and set the pre-sets. To this pre-set setting, first you need to select the desired input source to four output ports.
  • Page 13 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher The following EDID options are available in any of the EDID drop-down lists: 1080P, Stereo Audio 2.0 1080P, Dolby/DTS 5.1 1080P, HD Audio 7.1 1080I, Stereo Audio 2.0 1080I, Dolby/DTS 5.1 1080I, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1...
  • Page 14 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher 4K2K60Hz_444 HD Audio 7.1 HDR USER_1 USER_2 COPY_FROM_TX_1 COPY_FROM_TX_2 COPY_FROM_TX_3 COPY_FROM_TX_4 This page also provides a means of sending a binary EDID file to either User 1 or User 2 EDID memories: 1.
  • Page 15 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher • Output Page The outputs can also be assigned meaningful names, if desired. The Output page provides information about the signal status of the outputs. The Scaler mode menu provides the following options: Bypass Follow the input source.

  • Page 16: Api Control Command

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher • System Page The system page allows setting of the panel lock and beep on/off, control RS-232 port baud rate. This page is also used to install new firmware update, restore the factory default setting, and reboot the Switcher. API Control Command The Switcher can also be controlled by RS-232.
  • Page 17 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher 3. All response messages are terminated by a CR/LF sequence. 4. When all four inputs are requested by the same command, the response will report each input on a separate line. 5.
  • Page 18 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher www.logicav.in...
  • Page 19 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher www.logicav.in...
  • Page 20 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher www.logicav.in...
  • Page 21 4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Note that you can send ‘RS-232 command’ to control the Switcher via Serial Command tool. The ‘Function description’ explains function about the command. The “Feedback” displays whether the command sends success or not and feedback the information you need to. www.logicav.in...

  • Page 22: Application Example

    4 x 4 HDMI 2.0 18 Gbps Matrix Switcher Application Example www.logicav.in...
