Bad Dawg eNVy 593-0014-00 Manual

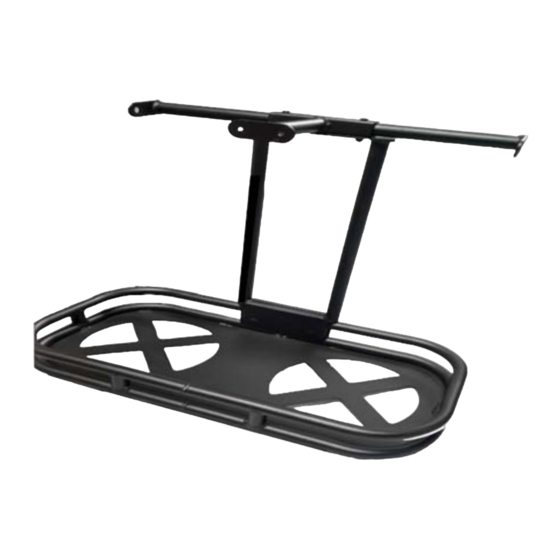

Hitch mount golf bag holder install

Safety:

 Ensure that the machine is safely

parked on level ground with the

ignition off.

 Wear all appropriate PPE for the

following procedures.

Note:



Leave all hardware loose until the

entire assembly is in its final position

Step 1‐



Ensure that all Hardware is provided

before starting the install.

eNVy Hitch Mount Golf Bag Holder Install

593‐0014‐00

Table of Contents

Need help?

Do you have a question about the eNVy 593-0014-00 and is the answer not in the manual?

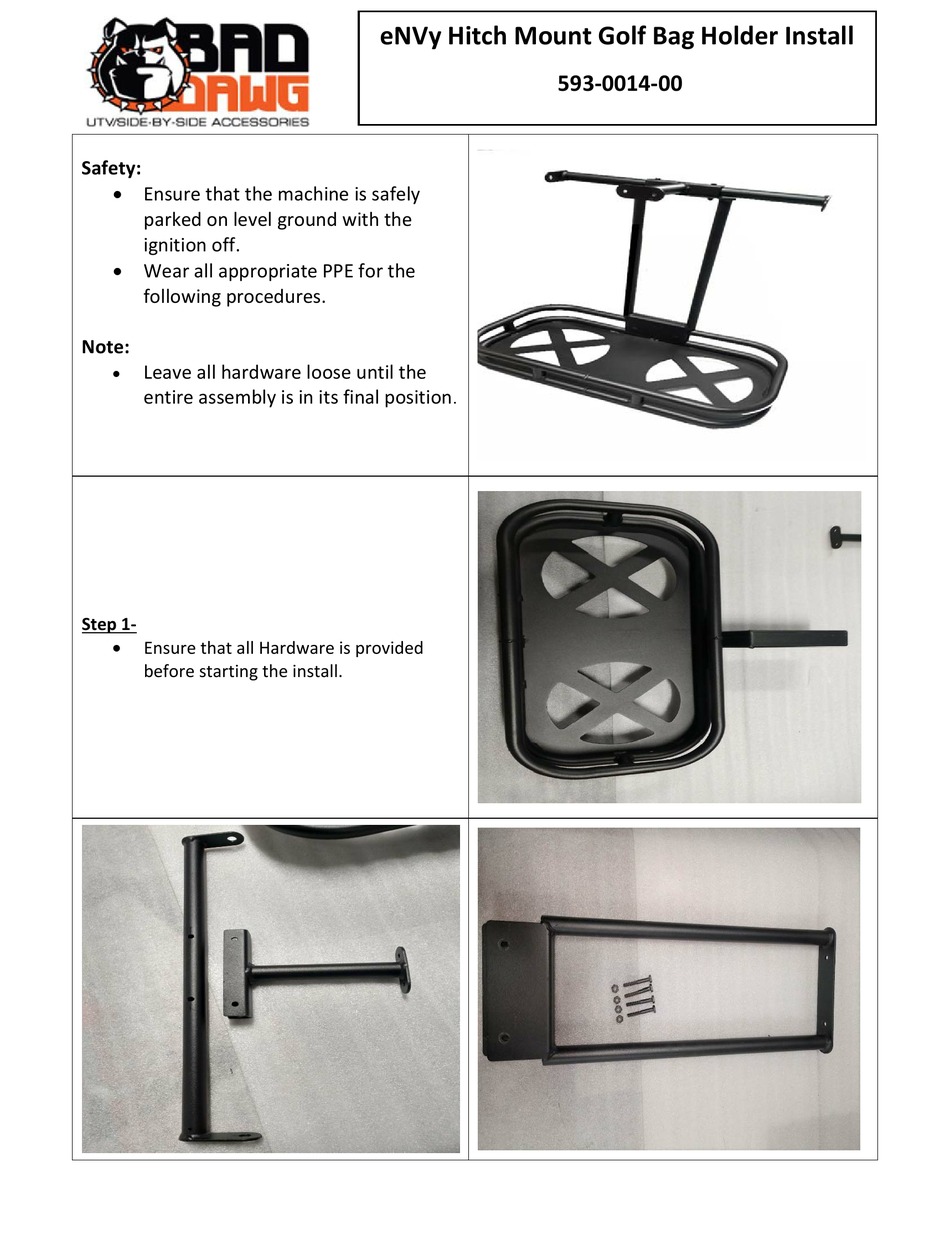

Page 1 eNVy Hitch Mount Golf Bag Holder Install 593‐0014‐00 Safety:  Ensure that the machine is safely parked on level ground with the ignition off.  Wear all appropriate PPE for the following procedures. Note:  Leave all hardware loose until the entire assembly is in its final position Step 1‐  Ensure that all Hardware is provided before starting the install. ...
Page 2 eNVy Hitch Mount Golf Bag Holder Install 593‐0014‐00 Step 1‐ Attach the center piece to the bottom base as shown. The long end should face the back of the base just as shown. Step 2‐ Run (1/4”x20 shoulder bolts) bolts from front to back and go ahead an start your lock nuts to the back side as shown. You can tighten the bolt and nut combo. Step 3‐ Next locate the top tubes. ...
Page 3 eNVy Hitch Mount Golf Bag Holder Install 593‐0014‐00 Step 3 Cont’d‐ Attach the 2 pieces together with bolts facing down as shown. Step 4‐ Attach the top assembly to the top of the base that you previously built. Run the bolts through the top of the upright plate. Go ahead and put the lock nuts on the bottom side as show. It may be necessary to adjust the tubes for everything to line up. Tighten all bolts. This is what you should have at this step. ...
Page 4 eNVy Hitch Mount Golf Bag Holder Install 593‐0014‐00 Step 5‐ Attach the straps using the four ¼x ½” button head bolts. Also use the black flat washers provided on the bolt side as shown in picture. Step 6‐ Go golfing. ...
