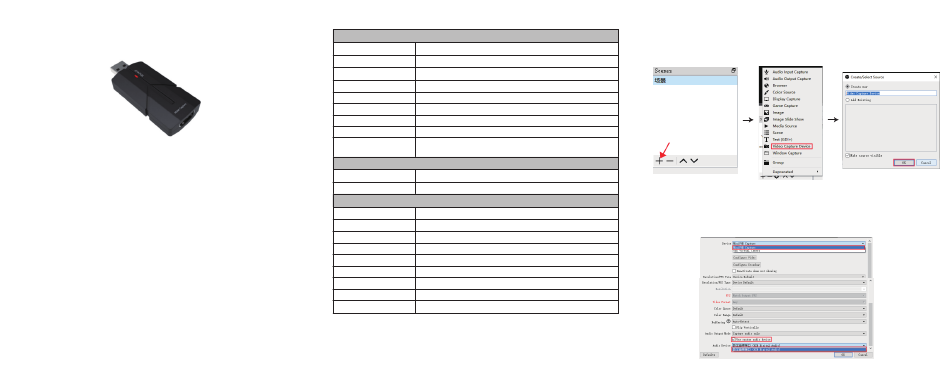

EVOCONNECT UC91HM User Manual

HDMI to USB Video Capture
User Manual
VER 1.0

1. Introduction

This HDMI to USB2.0 video capture can collect HDMI audio & video input signals.
The captured video resolution is up to 4K2K@30Hz, and the output resolution is
up to 1080P@60Hz. The product has the advantages of high performance, high
compatibility, easy to carry and install. It is compatible with Windows, Linux, Mac
OS X operating system and USB2.0 port, plug and play, easy to use.

2. Features

☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Support 10.2Gbps video bandwidth
☆ The captured video resolution is up to 4K2K@30Hz, and the output resolution is
up to 1080P@60Hz
☆ Be compatible with Windows, Linux, Mac OS X operating system and USB2.0 port
☆ Support automatic recognition of input video format

3. Operation Controls and Functions

① USB port: USB signal output port, connect to the USB port of a PC directlly.
② STATUS LED: Red LED is always on when the capture is connected to active HDMI
IN signal source, flashes slowly when not connected, about 1 second once.
③ HDMI IN port: HDMI signal input port, connect to HDMI source device such as DVD
with HDMI cable.
1/6

4. Specifications

Technical
HDMI 1.4
HDMI Compliance
HDCP Compliance
HDCP 1.4
Video Bandwidth
10.2 Gbps
Video Resolution Input: Up to 4k2k@30Hz; Output: Up to 1080P@60Hz
Color Depth 8/10/12-bit (1080P@60Hz); 8-bit (4K2K@30Hz YUV4:4:4)
Color Space RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
LPCM2.0
HDMI Audio Formats
USB Version USB 2.0
Human body model —
ESD Protection
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
1x HDMI [Type A 19-pin female]
Input
Output 1x USB [Type A male]
Mechanical
Housing Plastic Enclosure
Color Black
Dimensions 51mm[W] x 31mm[D] x 13mm[H]
Weight 16g
Power Supply PC USB 5V
Power Consumption 1.75W
Operating Temperature 32 - 104°F / 0 - 40°C
-4 - 140°F / -20 - 60°C
Storage Temperature
20 - 90% RH (no condensation)
Relative Humidity

5. Package Contents

① 1× HDMI Capture
② 1× User Manual
2/6

6. Software instruction

Take OBS (Open Broadcaster Software) software, windows10 system as an example.
The specific opertation is as below:
1. Install the "OBS" application software on the computer.
2. Double click "OBS Studio" shortcut to open the application.
3. Click the "+", you can see a drop-down menu and select "Video Capture Device",
and then click "OK" button.
4. Select "MiniFHD Capture" in the Device option box, then check "Use custom audio
device" under Audio Output Mode, and select "USB Digital Audio" for Audio Device.
Then click "OK" button.
3/6
