Summary of Contents for AccuDual ACD-52300

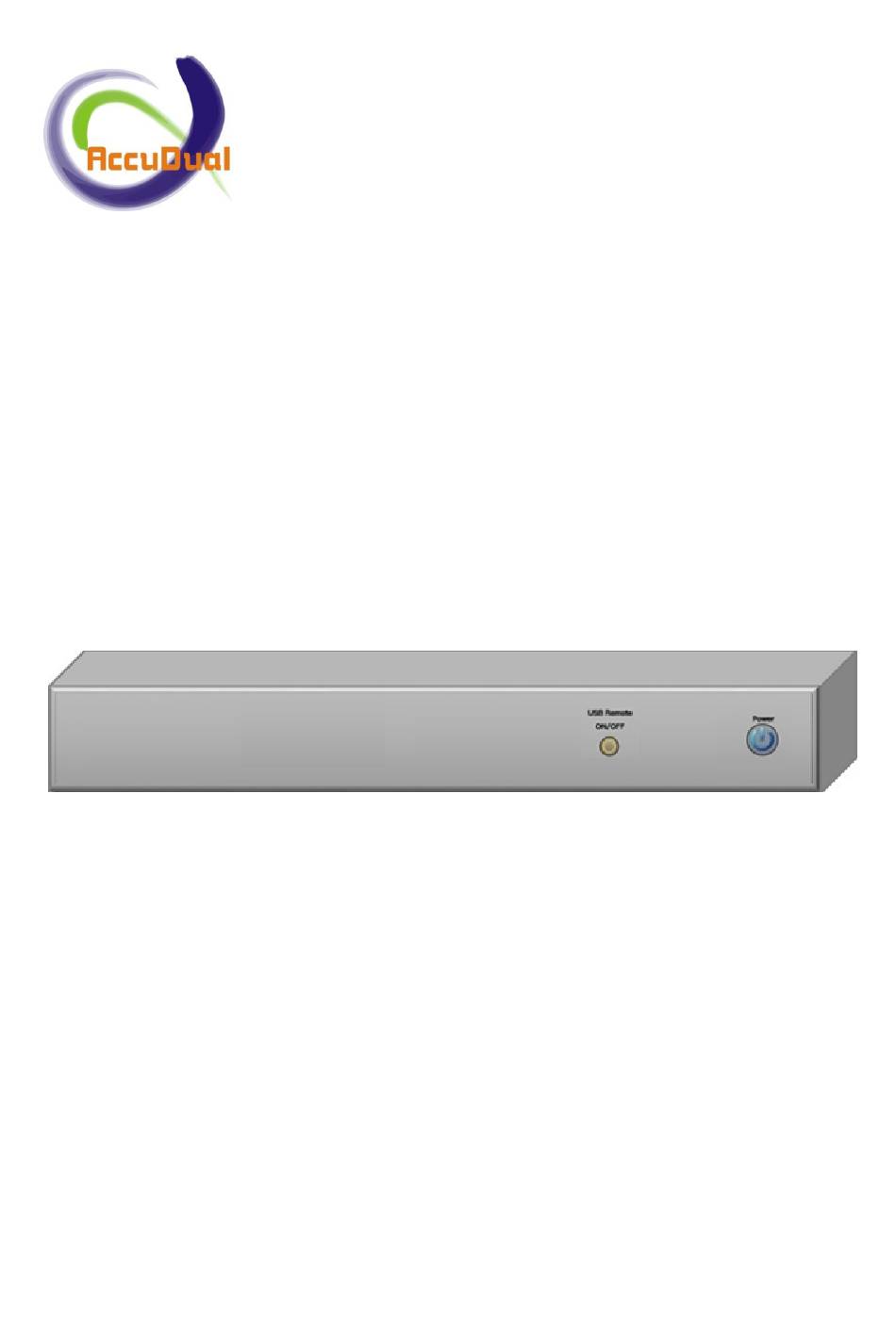

- Page 1 ACD-52300 User Guide v1.1...
- Page 2 Package Contents ............................ 1 Specification ............................1 Front View ............................... 2 Rear View ..............................2 Connecting the Equipment ........................3 Installing ACD-52300 to tools: ........................ 3 Setting up your ACD-52300 IP address ....................4 Ready to Run ACD-52300 ........................5...
- Page 3 Package Contents ACD-52300 AC Power adapter VGA Cable USB-B to USB-A cable LAN Cable Specification AC power input 100V~240V Net Weight: 4.2 Kg Gross Weight: 3.0 Kg Bare product Dimension: 300 * 260 * 45 mm Packing Dimension: 388 * 325 * 180 mm...

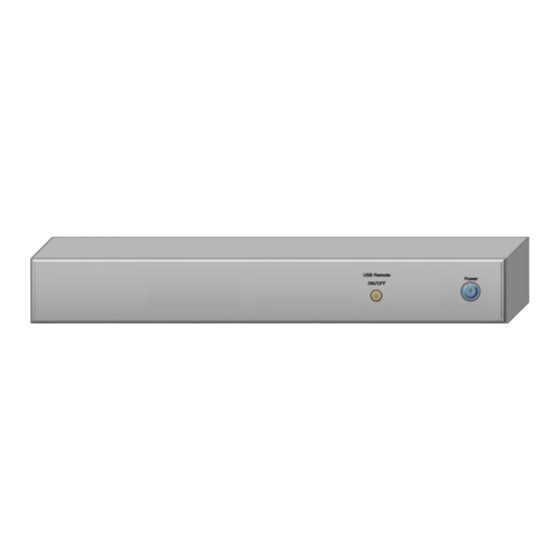

- Page 4 Front View Rear View Power Button Remote Button Reset button VGA IN put DC Power Connector USB Port LAN Port USB IN put Video out Connector...
- Page 5 Connecting the Equipment Installing ACD-52300 to tools: Please follow the steps below for installing your ACD-52300 to the SEMI tools 1. Remove the VGA cable from SEMI Tool, then connect to VGA cable of ACD- 52300 and secure the screws.
- Page 6 IP address so the users can access ACD-52300 through this IP address and do the RCM (Remote Control Management) operation p.s. please do make sure you re-connect ACD-52300 to the LAN after the initial configuration of IP address setting Here below are the instructions to setup your IP address on the ACD-52300 1.
- Page 7 ACD-52300 remotely via a supported web browser using the ACD- 52300 IP address. Note: Make sure you reconnect the ACD-52300 to the LAN after configuring with a PC. You can get more help of the GUI by clicking the help icon in the top right corner of the web interface to access more help online.
