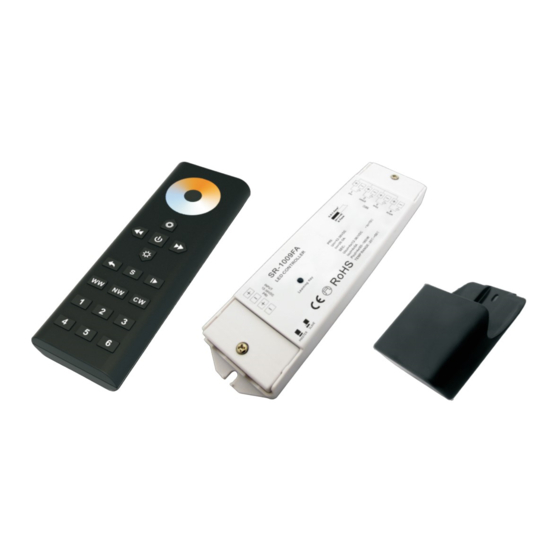

SLV SR-1009F Series Operating Instructions

RF wireless LED remote controller
Model:SR-2819-CCT with SR-1009Fxx
Six zones/areas
Press-button color temperature dimmer
Receivers work with WIFI-RF converter to be controlled by smart phone
Parameter
Remote
Part No. Operation Voltage
SR-2819CCT 3.6VDC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Product Size
140.0
Operation DIMENSIONS
Frequency ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz 48x140x16
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Brief introduction of buttons
Speed down under dynamic mode
Return previous status button
Save button: save up to 6 colors
or modes into 6 positions
6 zones: each zone can save
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Power Supply
12-36VDC
Learning Key
Remarks
batteries
CCT LED Strip
Remarks
CCT LED Strip
2) Receiver Connection Diagram for Multiple Units
Constant current
Constant current
ON/OFF of all zones
WW NW CW
(6-zone buttons)
1 2 3
5
6 color or modes 4 6
110V-230VAC
SR-1009FA
LED CONTROLLER
CCT LED Strip
4x5A
Note:
One receiver can work with 1-8pcs SR-2819CCT
Power Supply
110V-230VAC
12-36VDC One SR-2819CCT control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
Learning Key LED CONTROLLER
4x5A
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
SR-1009FA
LED CONTROLLER
Learning Key
4x5A
Indicator: indicate the state of
remote control
Touch color temperature wheel
Brightness: dim up
Speed up under dynamic mode
Brightness: dim down
Pause/Run button: 10 modes
built-in
WW/NW/CW channels
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
2x10A
CCT LED Strip
CCT LED Strip
CCT LED Strip
CCT LED Strip
CCT LED Strip
CCT LED Strip
