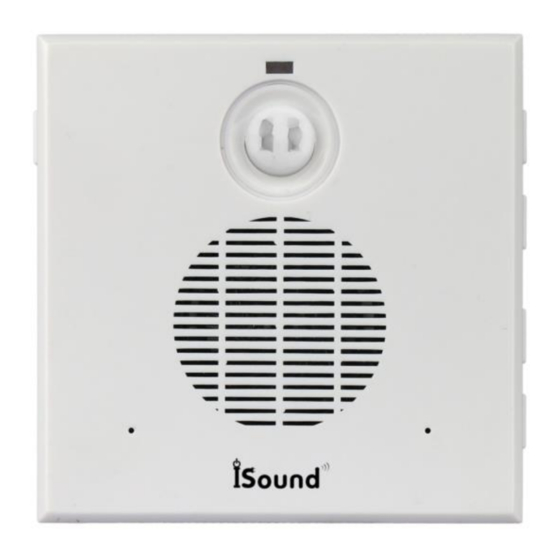

Waytronic iSound II User Manual

Waytronic iSound II User Manual

Direction induction

Advertisement

1.Features

Material : Plastic
Size : 86*86*41 mm
Support 8-320Kbps MP3 audio format.
With external trigger function(valid for low pulse)
Can download MP3 files less than 4M through U disk.
With lock function, avoiding wrong triggering or unwanted operation.
Stable performance, can have external active speaker (external amplifier).
Voice easily changed, can copy audio files to internal storage through U disk.
With a group of relay switch, close when triggering to play voice, delayed turn-off time default value is 30
seconds.
Shenzhen Waytronic Electronics Co., Ltd.
iSoundⅡV3.06
(Direction Induction)
User Manual
-第 1 页-
iSoundII V3.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSound II and is the answer not in the manual?

Questions and answers

Summary of Contents for Waytronic iSound II

  • Page 1 Shenzhen Waytronic Electronics Co., Ltd. iSoundII V3.06 iSoundⅡV3.06 (Direction Induction) User Manual 1.Features ➢ Material : Plastic ➢ Size : 86*86*41 mm ➢ Support 8-320Kbps MP3 audio format. ➢ With external trigger function(valid for low pulse) ➢ Can download MP3 files less than 4M through U disk.
  • Page 2 Shenzhen Waytronic Electronics Co., Ltd. iSoundII V3.06 2.Panel Direction recognition mode Non-direction recognition mode Operating method Button Function Indicator light Function Indicator light Short press Play voice Green light Switch to the Green light from right to left is on...
  • Page 3 Shenzhen Waytronic Electronics Co., Ltd. iSoundII V3.06 3.Specification Working voltage: AC100~250V or DC12V (two of them can not compatible ) ≤600W(Resistive Load) Load: ≤120 degree Human Sensing angle: Direction recognition distance: 4meters Working Environment: Only used indoor(-20℃~35℃), relative humidity less than 95%...
  • Page 4 Shenzhen Waytronic Electronics Co., Ltd. iSoundII V3.06 6.Installation 6.Attentions 1. When long press the button: previous or next, stop playing voice. If red indicator light is flashing continuously, it enters into volume adjustment mode. At this time, short pressing is volume adjustment. It will exit volume mode if no button is pressed within 5 seconds.
  • Page 5 Shenzhen Waytronic Electronics Co., Ltd. iSoundII V3.06 Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version. Contact Us Shenzhen Waytronic Electronics Co., Ltd.
