SMD 45A User Manual

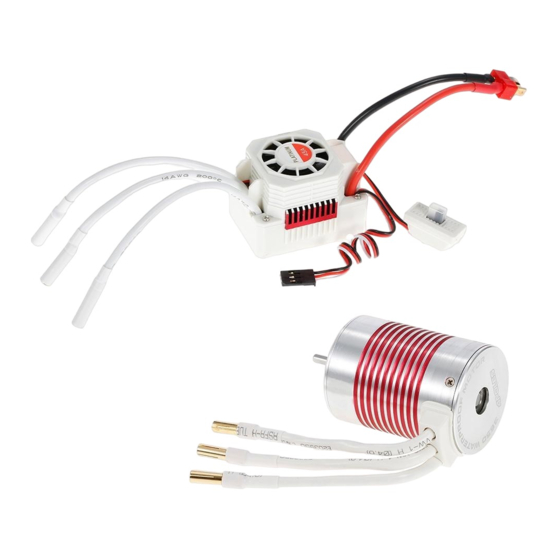

SMD SENSORLESS BRUSHLESS SPEED CONTROLLER AND MOTOR COMBO USER MANUAL.
***Read the data sheet for 3S compatibility***
This is Electronic Speed Controller and motor combo is designed for use in an RC car.
Used incorrectly this system could cause damage or harm so please read this manual
carefully. No liability shall be assumed nor accepted for any damages, losses or costs
resulting from the miss use or poor installation of this product.
Features.
1. Splash proof and dust-proof for all-weather (Note, the speed controller internal
electronics are actually waterproof but the cooling fan can be damaged by excess
water, no RC car chassis is waterproof and drive line and bearing damage is inevitable in
water, it's unlikely the rest of your electronic components are waterproof so we strongly
recommend that you don't use your model in water)
2. Specially designed for RC car with excellent start-up, acceleration and linearity
features.
3. Compatible with sensorless brushless motor.
4. Multiple protection features: Low voltage cut-off protection for nimh battery / (with
the optional LED programmer LIPO Low voltage can be selected) Over-heat protection /
Throttle signal loss protection / Motor blocked protection.
5. Easily programmed and compatible with pocket-sized program card. (NOT INCLUDED)
