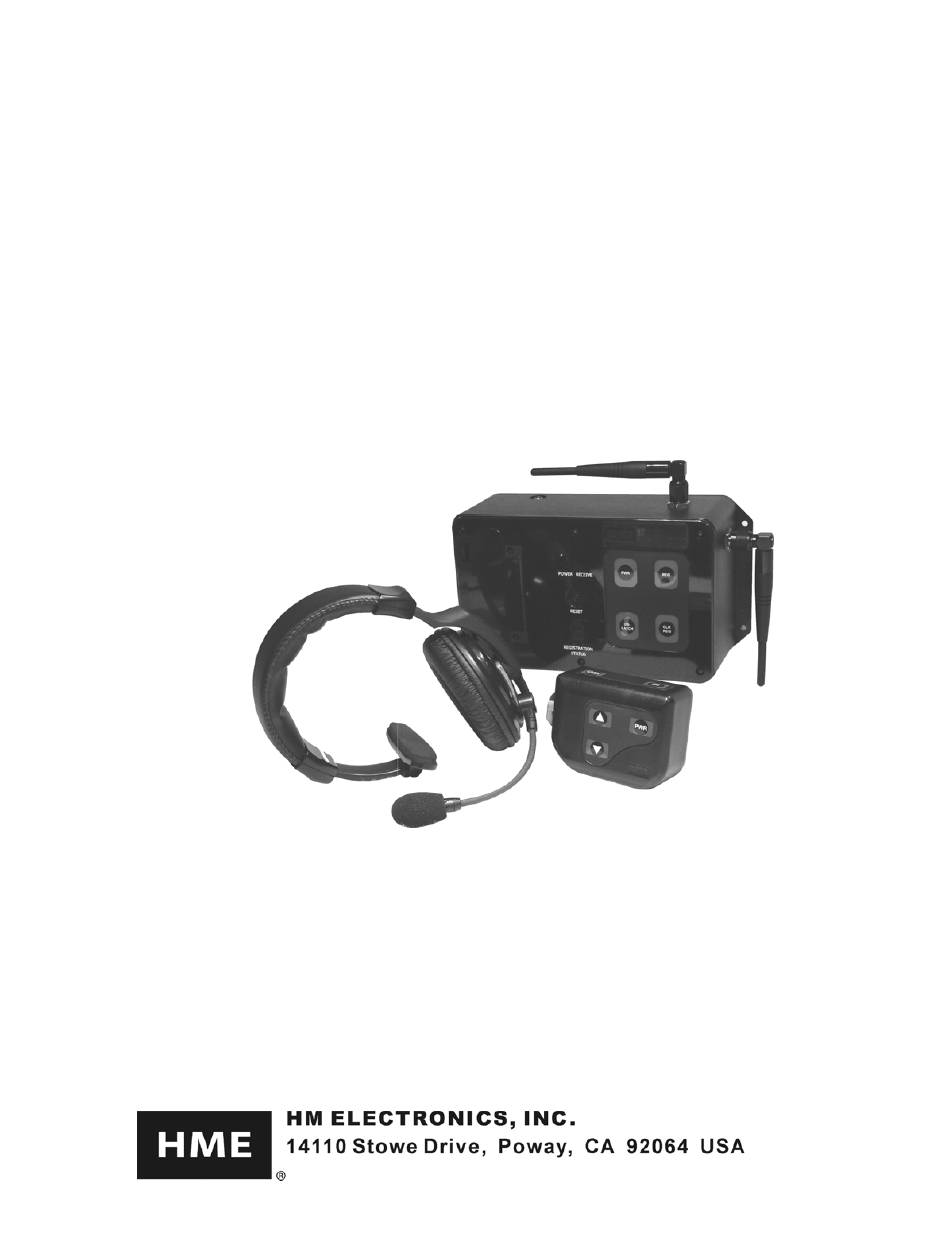

- Page 1 HME# 400G573 Rev − 11/1/05 DX100 Wireless Intercom Operating Instructions...
-
Page 2: Table Of Contents
HM Electronics, Inc. is not responsible for equipment malfunctions due to erroneous translation of its publications from their original English version. © 2005 HM Electronics, Inc. The HME logo and product names are registered trademarks of HM Electronics, Inc. All rights reserved. - Page 3 Environment, for work-related use. Transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Hereby, HM Electronics, Inc. declares that the DX100 is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.
- Page 4 LIMITED WARRANTY HM Electronics, Inc. (“HME”) warrants the DX100 for a period of two (2) years* from the date of purchase against defects in materials or workmanship provided it was purchased from an authorized dealer. During the warranty period, defective HME Products will be repaired without charge for parts and labor. Simply return the defective HME Product with your sales slip as proof of the date of purchase.
-
Page 5: Introduction
The base station can be operated using standard AC electricity, an external DC power source or six AA batteries. A power supply, cable and a battery sled are included with the base station. This is an example of a typical theatrical application. A variety of other uses for the DX100 are possible. -
Page 6: Equipment Identification

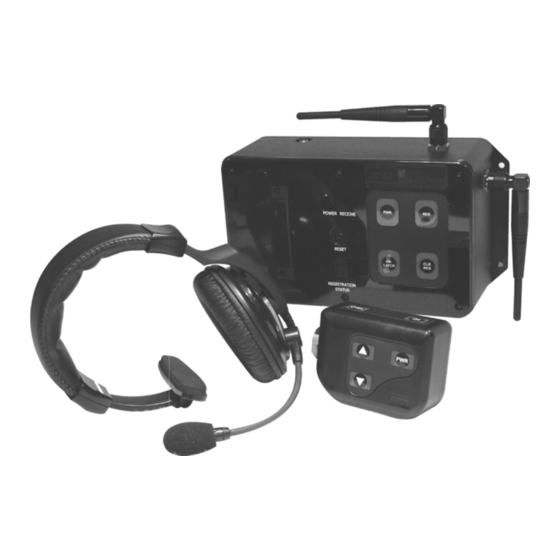

EQUIPMENT IDENTIFICATION The following equipment is standard with the DX100 Wireless Intercom System. As you unpack the equipment, check the packing list to be sure you received all items listed. Base Station Battery Sled Base Station Antennas (2 per Base Station) -
Page 7: Main Equipment Features
MAIN EQUIPMENT FEATURES Base Station Features POWER indicator light UN-LATCH button RECEIVE indicator light Clear Registration “CLR REG” button RESET button Antennas REGISTRATION STATUS display 10. Power connector Power “PWR” button 11. Battery compartment cover Registration “REG” button 12. Battery compartment cover release latches Beltpac Features Headset cable connector Volume-up button... -
Page 8: Equipment Setup
SECTION 2. EQUIPMENT SETUP BELTPAC BATTERY CHARGER SETUP IMPORTANT! – Before installing the system, connect the AC power supply to the AC40A Battery Charger and plug it into an electrical outlet. Charge all the Beltpac batteries while the other equipment is being installed. -
Page 9: Base Station Setup
Step 2. Note which of the following applies to you. • If using the DX100 with AC power ⎯ Plug the connector at the end of the AC power supply cord into the power connector on top of the base station. Turn the sleeve on the cable connector clockwise to secure it to the base station. - Page 10 • If using the DX100 with battery power ⎯ Press in and up on the two battery cover release latches to lift the cover and open the battery compartment. Battery cover release latches (Push latches in direction of arrows and flip lid up.) Insert six AA batteries into the battery sled, in the positions shown inside the sled, and install the sled in the battery compartment as shown below.
-
Page 11: Beltpac Setup And Registration
A maximum of 15 Beltpacs can be registered to a DX100 base station at one time. After 15 Beltpacs have been registered, you will have to clear all current registrations before registering any additional Beltpacs. - Page 12 If registration failed: • A voice message in the headset will say “Power on, Beltpac #, Version #, Begin registration, …” Both power lights on the Beltpac will be blinking red, and there may be a delay of up to 90 seconds before you hear “Registration failed.”...
-
Page 13: Equipment Operation
Low Battery Indicator When the DX100 base station battery power is low, repeating beeps will be heard in the Beltpac headset and the POWER light on the base station will be blinking red. When this happens, replace the batteries in the base station immediately with ones that are new or fully charged, as instructed on page 6. -
Page 14: Beltpac Operation
BELTPAC OPERATION Beltpac Controls and Indicator Lights The Beltpac control buttons have a snap action. They will activate when pressed firmly. Use your fingertips, not your fingernails, to press the buttons. Power On/Off • Power On – Press and release the PWR (power) button. A voice message in the earpiece will say “power on,”... -
Page 15: Volume Up/Down
Volume Up/Down • Volume Up Adjustment – Each time you press and release the volume-up button, a beep will be heard in the earpiece as the volume increases one step. If you press and hold the volume-up button, repeating beeps will be heard as the volume steps up to maximum. When maximum volume is reached, “maximum”... -
Page 16: Troubleshooting
Beltpac, or the microphone gain adjust is turned up to the required level. See page 12. 2400MHz cordless telephone interference — If there is a 2400MHz cordless telephone nearby, interference may occur. However, because the DX100 is a frequency-hopping system, this problem is unlikely. If it does occur, changing frequencies on the telephone may alleviate the problem. -
Page 17: Technical Data
SECTION 5. TECHNICAL DATA EQUIPMENT SPECIFICATIONS Base Station GENERAL ⎯ Frequency Range: 2400 – 2483.5 MHz Frequency Response: 200 Hz to 3.5 kHz Power Requirements: 100-240VAC, 50-60Hz or 12-14VDC Temperature Range: 32-122°F (0-50°C) Size: 10.2” x 6.45” x 3.33” (1-RU) (25.91 x 16.38 x 8.46 cm) Weight: 2.35 lbs. -
Page 18: Beltpac
Beltpac GENERAL ⎯ Frequency Range: 2400 MHz – 2483.5 MHz Antenna Type: Internal, horizontal/vertical diversity Frequency Response: 200 Hz to 3.5 kHz Battery Requirements: 3.6V lithium ion Battery Life: Up to 20 hours Temperature Range: 32-122°F (0-50°C) Weight: 7.4 oz (0.21 kg) with battery and pouch Headset Connector: 4-pin, mini-DIN Mic Input:... -
Page 19: Disposal Of Waste Electrical And Electronic Equipment
DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT IMPORTANT! Waste Electrical and Electronic Equipment (WEEE) The European Union (EU) WEEE Directive (2002/96/EC) places an obligation on producers (manufacturers, distributors and/or retailers) to take-back electronic products at the end of their useful life. The WEEE Directive covers most HME products being sold into the EU as of August 13, 2005.
