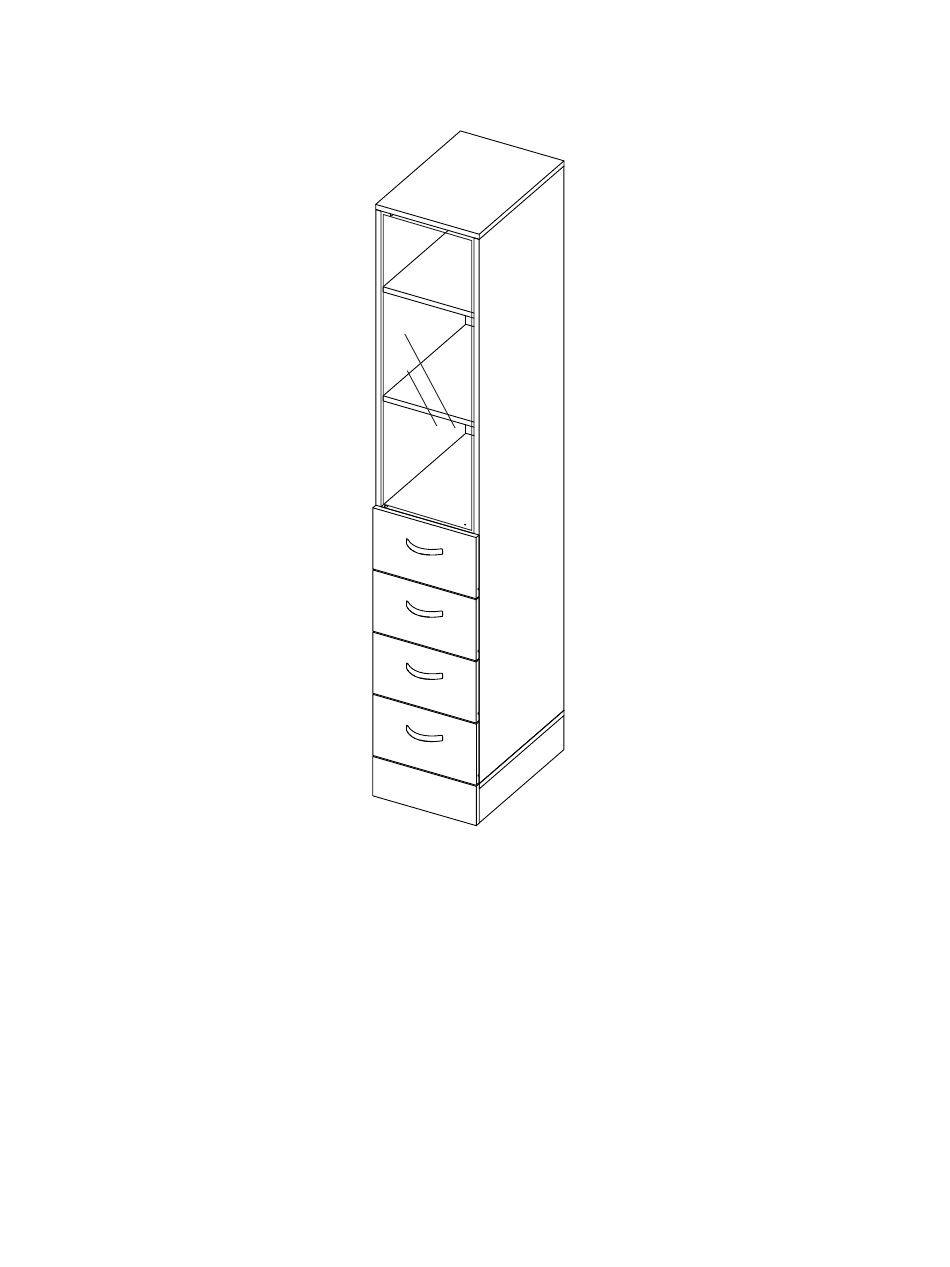

- Page 1 ASSEMBLY INSTRUCTIONS LINEN CABINET...
- Page 2 Index What will you need? Where should you start? What’s in the hardware bag? How do the dowels and Minifix system work? (We also explain what they are) Let’s start assembling! How much weight does your cabinet resist? Our last recommendations for taking care of your cabinet What will you need? Hi! my name is Armando, and I’ll be...
- Page 3 Where should you start? This is so IMPORTANT! Over the next few pages is the panel and hardware content for this cabinet. Please make sure that the quantity of each one is correct, and that everything is in good shape. (When the cabinet is already assembled there’s no warranty for this) Panel quantity...
- Page 4 What’s in the hardware bag? Cover caps Wood dowel Spreading bolt Minifix cam Drywall Slides + screw screws Handle Screw Nail-on glide Drywall Wall anchor Metalic Handle screw + screw handle...
- Page 5 Glass door Magnetic Glass door stop hinge Be careful!, try not to lose anything from this bag, its content it’s neccesary for assembling you cabinet. In case something is missing, please call to our customer service...
- Page 6 How do the dowels and Minifix system work? this is so important too! Everytime you’re using one of these connectors during the assembly, you should follow these same steps. Wood dowels They are little wooden cylinders. When joining two panels together, don’t Put in the dowel forget to gently hit inside the indicated...
- Page 7 Let’s start assembling! You can see the last page of this manual to have a full look of the panels of this cabinet. Turn this panel over...
- Page 12 Turn this panel over...
- Page 14 Drawer slides installation (apply for steps 14 and 16) To begin, you must take out the smaller part of the slide, pushing down the black plastic part shown below: Front Take the bigger part of the slide and place it over the panel.
- Page 15 If you want to recall how to install this part of the slides, go to the 14th step again.
- Page 16 Slide the back panel inside the grooves.
- Page 17 Turn over the cabinet very carefully!
- Page 18 Fix your cabinet to the wall On the wall, measure and mark the points shown below. Drill on the markings with a 5/16" drill bit. Insert the wall anchors inside the drillings. Place the cabinet and secure it with the screws. 2,83 2,83...
- Page 19 Take tha smaller part of the slide and place it over the panel. The metallic stop should go at the front. Front LICx4 LDCx4 23x4 Drywall screw 2"...
- Page 20 24x4 Slide the back panel inside the grooves. FC x4...
- Page 21 26x4 Drywall screw 1 1/8"...
- Page 22 Stick Tape Insert glass door and tighten Insert Handle Insert pivot and upper glass door hinge Slide the drawers Insert pivot inside the cabinet. and lower glass door hinge After adjusting all the After finishing the Minifix cams, cover assembly, lift off al the them up with the cover adhesive letters.
- Page 23 How much weight does my cabinet resist? *weight in pounds Congratulations! It’s done But don’t go yet! There are some recommendations left for you to take care of your cabinet correctly from now on. SUPER IMPORTANT! We suggest fixing the cabinet to the wall, so we can avoid the cabinet tipping and harming anyone.
-
