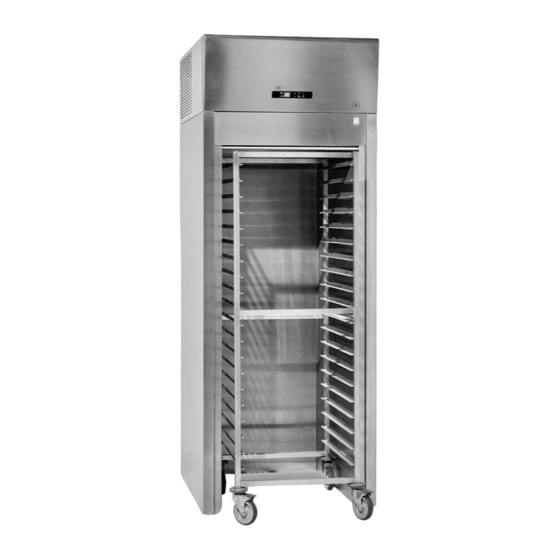

COOLBOX Refrigerated cupboard with trolley
Electric and refrigerating diagrams page 3
Manual of the thermostat page 4
Spare Parts page page 6
Rue Charles Hermite Z.I. des Sables BP 59
54110 Dombasle sur Meurthe France
tel : (+33) 03 83 45 82 82 - fax : (+33) 03 83 45 82 93
e-mail : commercial.vcs@vauconsant.com
export@vauconsant.com
Advertisement
Table of Contents
Related Manuals for Vauconsant COOLBOX
Summary of Contents for Vauconsant COOLBOX
- Page 1 COOLBOX Refrigerated cupboard with trolley Instructions of use and maintenance page 2 Electric and refrigerating diagrams page 3 Manual of the thermostat page 4 Spare parts page page 6 Rue Charles Hermite Z.I. des Sables BP 59 54110 Dombasle sur Meurthe France tel : (+33) 03 83 45 82 82 - fax : (+33) 03 83 45 82 93 e-mail : commercial.vcs@vauconsant.com...
- Page 2 INSTRUCTIONS OF USE AND MAINTENANCE GENERAL POINT Cleaning To be performed when the cupboard is shut down (the unit is Refrigerating components turned off). Refrigeration by a ventilated evaporator located in the top of Once a day, wash the top, the refrigerated well and the the cupboard.
- Page 3 ELECTRIC DIAGRAM REFRIGERATING DIAGRAM CAPTION DIAGRAMS Compressor Rb Self-evaporating tray heating element Ca Capillary Modular timer Cd Condensor Level probe Dh Drier Atmosphere temperature probe Evaporator Thermostat Kb Self evaporating tray relay Tb Safety thermostat for self evaporating tray Im Engine of ascent and descent of the curtain Tm Transformer Raising pomp Ventilator...
- Page 4 MANUAL OF THERMOSTAT XW60L Please read this manual before using HOW TO UNLOCK THE KEYBOARD 1.AVERTISSEMENT • Warning: disconnect electrical connections Keep the and the keys pressed together for before any kind of maintenance. more than 3 s. The "POn" message will be displayed •...
- Page 5 3.9 To enter in parameters list Pr2 The alarm message is displayed until the alarm condition is To reach the parameters present in "Pr2" (parameters recovery. accessible technicians), please contact All the alarm messages are showed alternating with the room , which will deliver you the secret code temperature except for the “P1”...
- Page 6 SPARE PARTS Code Item description Accessories 09.3098 Motorized curtain Electric equipment 06.0038 Self-evaporating tray heating element 06.3500 Ventilator 12.0270 Thermostat 12.0500 Praising pomp Refrigerating equipment 12.2480 Evaporator 12.2806 Group condensation CAJ 4517 ZH...
