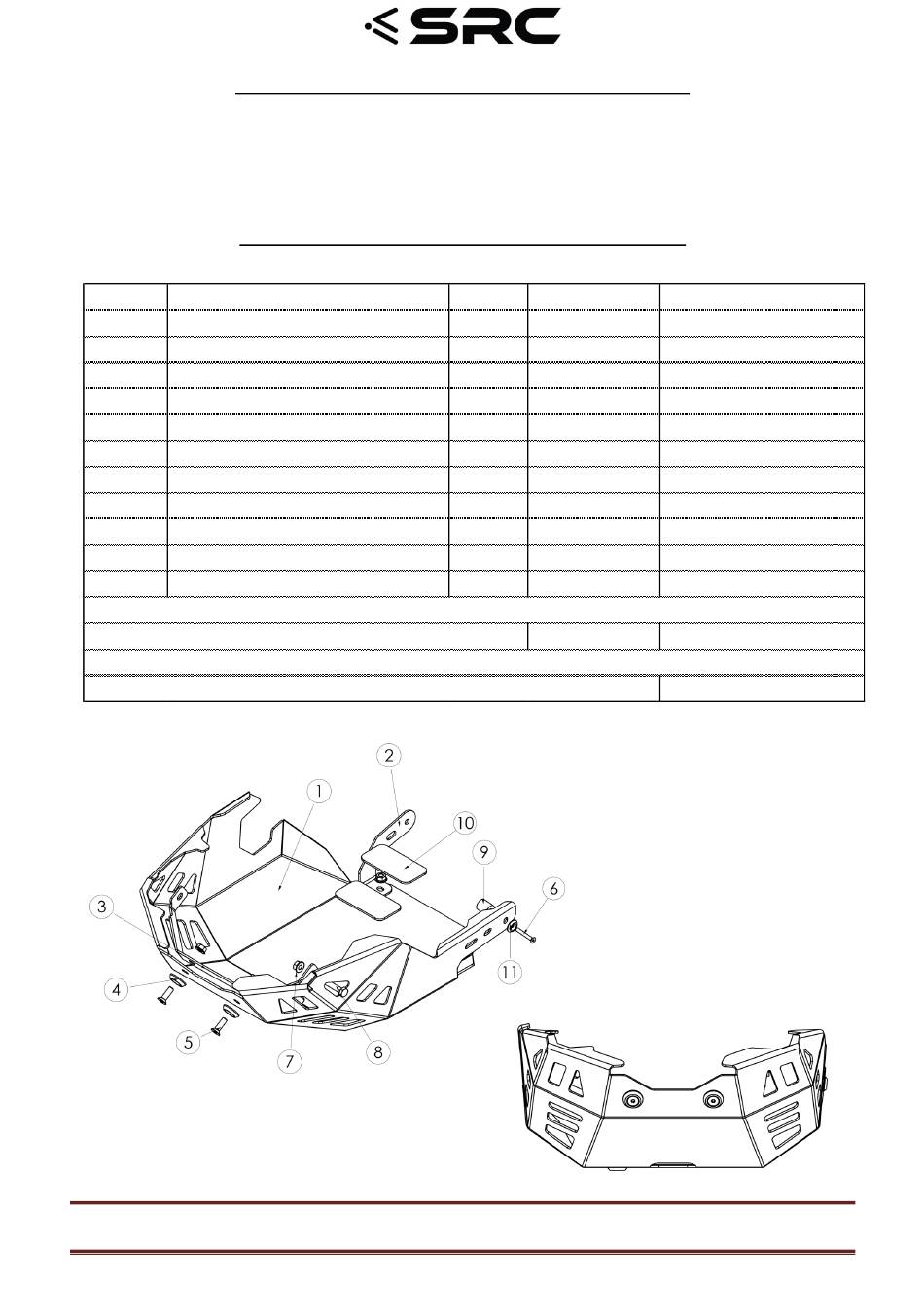

Scope of Supply/Bill of Material & Mounting Drawings
Part Number: H-NC750MT-09-01-AL / H-NC750MT-09-01-AL
Part Description: Engine Guard– HONDA NC 750X ( MT )
Applicable to Finished colour versions of Silver and Black
Installation / Parts List / Bill of Material for Mounting
No.
Description
1
Engine Guard
2
Rear End Bracket
3
Front Bracket
4
Washer M8
5
Countersunk Screw M8 x 25
6
Countersunk Screw M5 x 35
7
Nut M8
8
Hex Screw M8 x 40
9
Bush
10
Rubber Strip **
11
Washer M5
SRC Design uses Metric System of Measurement and all dimensions are in Millimeters
* Recommended to use the Torque specified in the table
** Rubber Strips will be pasted to the inside of the Engine Guard using Adhesive
*** Denotes Usage of Liquid Thread Locker in specified locations
Copyright By SRC
Design and Specification are subjected to change
Quantity Torque * (N-m) Remarks ***
1
1
1
3
3
22 - 24
1
5 - 6
4
22 - 24
1
22 - 24
1
2
1
Use Liquid Thread Locker
Use Liquid Thread Locker
Use Liquid Thread Locker
Use Liquid Thread Locker
Page 1
Advertisement
Summary of Contents for SRC H-NC750MT-09-01-AL
- Page 1 Rubber Strip ** Washer M5 SRC Design uses Metric System of Measurement and all dimensions are in Millimeters * Recommended to use the Torque specified in the table ** Rubber Strips will be pasted to the inside of the Engine Guard using Adhesive...
-
Page 2: Mounting Drawings
MOUNTING DRAWINGS Copyright By SRC Design and Specification are subjected to change Page 2... -
Page 3: Mounting Instructions
Orient and Align the Rear End Bracket (2), as shown, in-line with the mounting point shown in Red colour, and slip-in the Hexagonal Head Bolt and washer through its hole and secure the threads. Copyright By SRC Design and Specification are subjected to change Page 3... - Page 4 Ensure Visual Orientation and tighten the Rear End Bracket (2) and Front Bracket (2), as shown. The As Is mounted condition of the Bracketry are as shown in the drawing to the Right-hand side. Copyright By SRC Design and Specification are subjected to change Page 4...
- Page 5 Inside surfaces of the Engine Guard with other parts of the Motorbike Under chassis/Crank case/ Muffler and tighten the mounting fasteners to the torque, as per specifications in the BOM table. Copyright By SRC Design and Specification are subjected to change Page 5...
-
Page 6: General Instructions
Vehicle. We have prepared this based on our experience and knowledge, related to the Vehicle, Part and its functional aspects. 3. SRC cannot guarantee the interchangeability of the parts to any other manufacturer’s accessory part. It is advised to the User, to inspect and ensure the original state of all other Vehicle parts.
