Clas Ohlson EF700DD Manual

Dimmer
• Article number 36-1809 • Model EF700DD
•
Dimmer with mechanical touch function. For light bulbs and 230 V halogen lamps.
• Memory function (remembers the last setting).
•
For flush or surface mounting in frame 36-1821.
Please read the entire instruction manual before using and save it for future use. We apologise for any text or photographic errors and any changes
in technical data. If you have any questions concerning technical problems please contact our Customer Service Department.
Installation
Note: Installation should be performed by a certified electrician.
1. Make sure that the current is 230 VAC and the dimmer's load will
only consist of light bulbs and halogen lamps.
2. Shut off the mains to the area of installation.
3. Insert a screwdriver or similar in the gap between the inner and
outer face plate on the front and carefully remove the inner frame
and the push button.

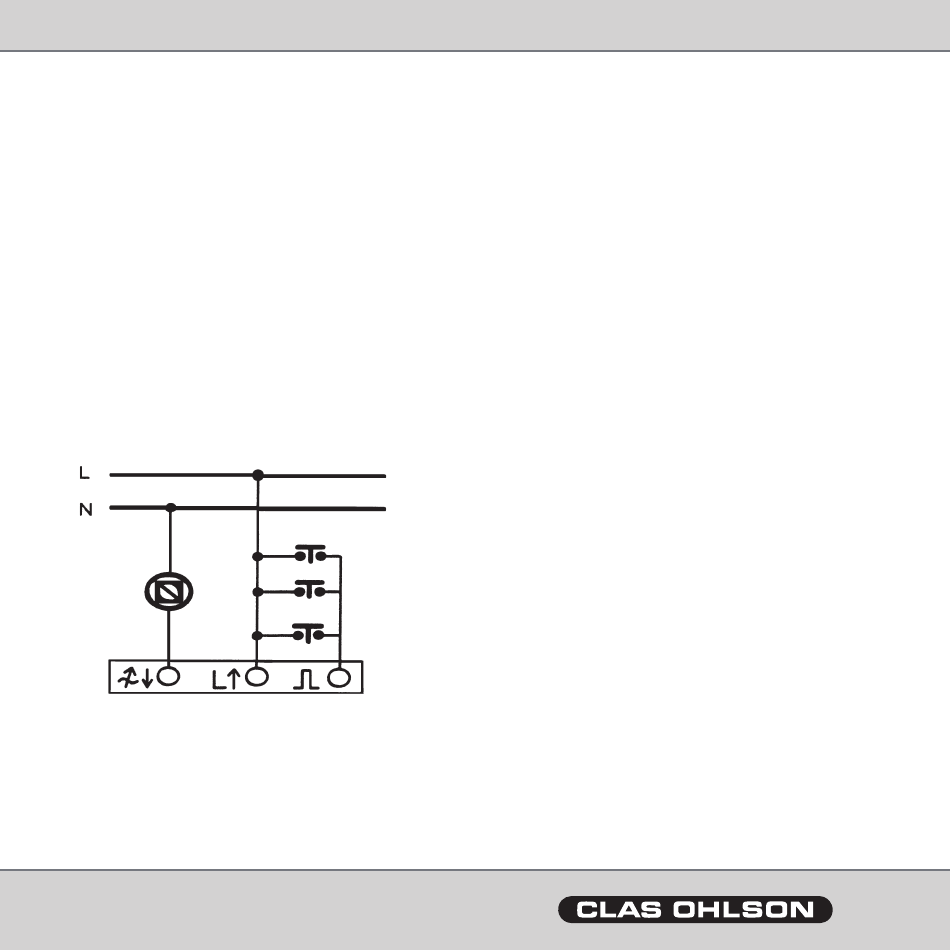

4. Wire to the dimmer according to the diagram and tighten the
screws.
5. Insert the dimmer in the existing pattress and tighten it with the
two screws or mount the dimmer on the outside with the mounting
frame 36-1821 (not included).
6. Attach the inner face plate and the push button.
7. Turn on the power and test the operation of the dimmer.
Lighting
* Only used if one wants to control the dimmer from another part of
the room, e.g. two-way switch.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk
and click on customer service.
Use
1. Quickly push the button to turn on the light; it will be turned on with
the latest setting.
2. Push and hold the button longer to adjust the light from the last
setting towards maximum light. Release the button at desired
setting (the setting will be saved in the memory to the next change
of light strength).
3. Quickly push the button to turn off the light.
Remote control
• The dimmer can be remote controlled from other return spring
switches (not included), see diagram.
• Use one or several return spring switches the same way as the push
button on the dimmer. Quickly push the button to turn on the light.
Note: Return spring switch is an accessory and is not included but can
be bought in well stocked stores.
Fuses
The dimmer is protected by a fuse (250 V 1.25 A slow blow fuse)
(5 x 20 mm). The fuse blows if the output power is greater than 300 W.
Switch the fuse like this:
1. Insert a screwdriver or similar in the gap between the inner and
outer face plate on the front and carefully remove the inner frame
and the push button.
Switch with
2. The fuse is positioned in a holder below the push button, grip the
return spring
small handle and pull out the fuse holder, and replace the fuse with
(not included)*
one of the same rating!
Technical data
Rated Voltage: 230 V AC, 50 Hz
Load:
Suitable use:
Disposal
Follow local ordinances when disposing of this product. If you are un-
sure about how to dispose of this product contact your municipality.
40-300 W
Light bulb and halogen light, 230 VAC, not suitable for
fluorescent tubes, compact fluorescent tubes or
transformer operated halogen lights.
