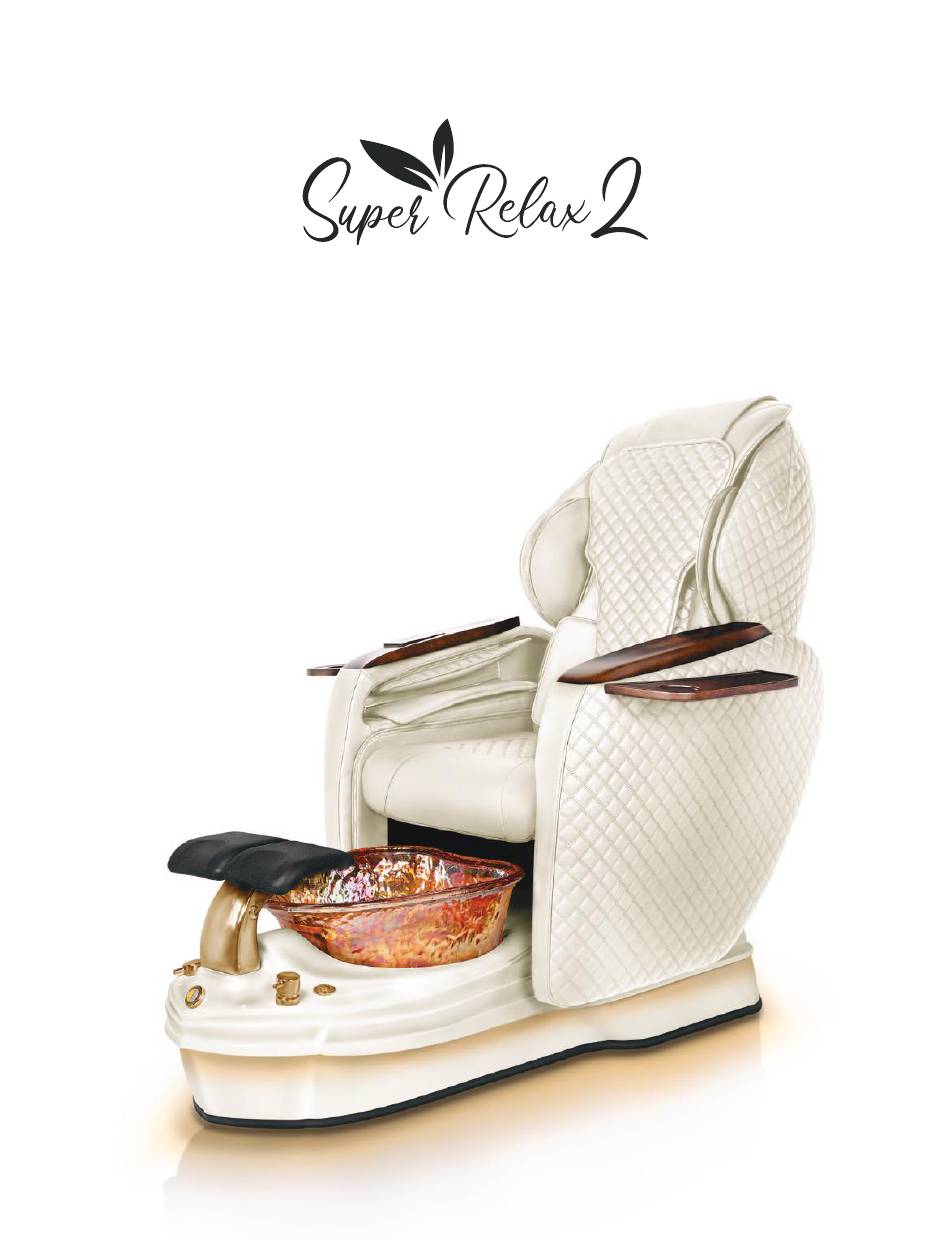

- Page 1 Chair Installation Created on October, 2021...
- Page 2 Attach metal frame from inside chair box to spa base as shown Line up holes and attach with 4 screws. Align back of the chair to install as shown ( 2 people needed).
- Page 3 Once aligned clip underneath and back should be attached. Chair should now look like this once back is installed.
- Page 4 Attach the arms one at a time to frame on base as shown - front first. Attach back end of the arm to the frame base.
- Page 5 Slide arm all the way to the back Attach screw to allen key as shown...
- Page 6 This screw from Pic 8 has to be mounted to the chair frame via the circular hole in the base to get to that hole, place arm with screw and allen key, through the hole in the back of the base and put the screw through the circular hole to attach to the frame.
- Page 7 Push armrest to the regular posi- tion. Repeat the same process on the other side to install the other arm- rest.
- Page 8 Attach bottom seat board to the seat frame. Align up correctly.
- Page 9 Air tube emerging from seat base have to go through the hole in seat board when attaching the cushioned seat to the base. Attach zipper from cushioned seat to back of the chair.
- Page 10 Make sure the seat is aligned prop- erly with the back as shown.
-
Page 11: Cable Connections
Cable Connections 21/A Attach Brown Hose to Brown Hose (Left connection to “T” Hose) 21/A 21/B Attach Brown Hose to Brown Hose (Right connection to “T” Hose) 21/B 22 Attach Green Cable to Green Cable... - Page 12 Cable Connections 23 Attach White connect electric jack to another White electric jack 24 Attach White Hose to another White Hose. 25 Attach Black connect electric jack to another Black electric jack 26 Attach Black connect electric jack to another White electric jack...
- Page 13 Cable Connections 27 Attach connect electric Power to another Power Cable. 28 connect electric Power Cable to wall outlet.
- Page 14 Unit is READY for USE.
