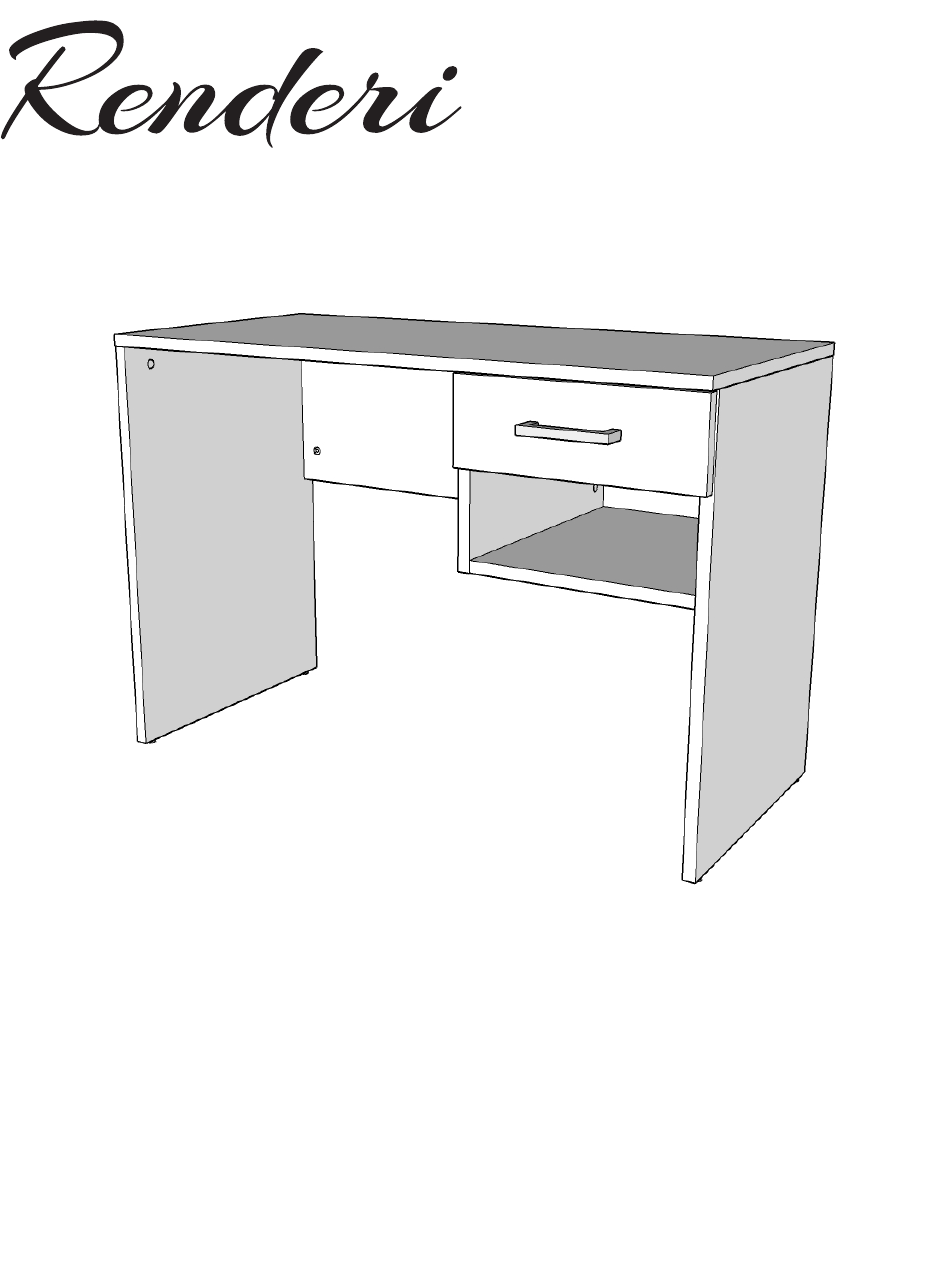

- Page 1 American Made Rainier Single Drawer Study Desk Assembly Instructions Model: WSD-BCUB-2042...
-
Page 2: Year Limited Warranty
Rainier Single Drawer Study Desk 1 Year Limited Warranty Renderi is committed to providing high quality This warranty does not apply to: furniture products, and with that in mind we • Normal wear and tear, which is to be expected offer a limited 1-year warranty. - Page 3 Rainier Single Drawer Study Desk Assembly 2 People 60 Minutes Tools required Hardware Slide Screw Large Cam Large Cam Pin Small Cam Small Cam Pin Lock x27 Lock Furniture Glide Fast Cap Drawer Pull Screw Drawer Pull Drawer Slide Set x1 (4 pieces total) Model: WSD-BCUB-2042 American Made...
- Page 4 Rainier Single Drawer Study Desk Desk Parts Drawer Parts Model: WSD-BCUB-2042 American Made...
- Page 5 Insert Large Cam Locks into the large holes on the Desk Left End, Center Divider and Desk Right End Use screwdriver to screw large Cam Pins into small holes on Desk Left End, Center Divider and Desk Right End. As shown above, Leave the 3 small holes on the Center Divider and Desk Right End empty as shown for the drawer slides.
- Page 6 Using a hammer, tap in the Furniture Glides (x4)—2 each into the bottom edge of the Desk Left End and Desk Right End. Using a screwdriver, screw Left Cabinet Slide (CL) to the Center Divider with Slide Screws (x3). Screw Right Cabinet Slide (CR) to the Desk Right End with Slide Screws (x3).
- Page 7 Insert Large Cam Locks into large holes on the Deck and Fixed Shelf. Then attach Deck and Fixed Shelf to the Center Divider. (Use screwdriver to turn Cam Locks clock-wise.) Use a screwdriver to turn Cam Lock until it’s snug; being careful not to over-tighten.
- Page 8 With a person on each end, carefully stand the desk upright. Screw in the Large Cam Pins to the holes on the Desk Top. Attach the Desk Top. Insert small Cam Locks into large holes on Drawer Left End, Drawer Right End and Drawer Back.
- Page 9 Attach Drawer Left and Right Ends to Drawer Back and tighten Cam Locks. Slide Drawer Bottom into slot. Attach Drawer Front making sure Drawer Bottom is in slot before tightening Cam Locks. Use screwdriver to attach Drawer Pull with Drawer Pull Screws. Tilt drawer up and insert rollers into cabinet slides.
