Summary of Contents for ICP Global ICP-15DP421RR-4K

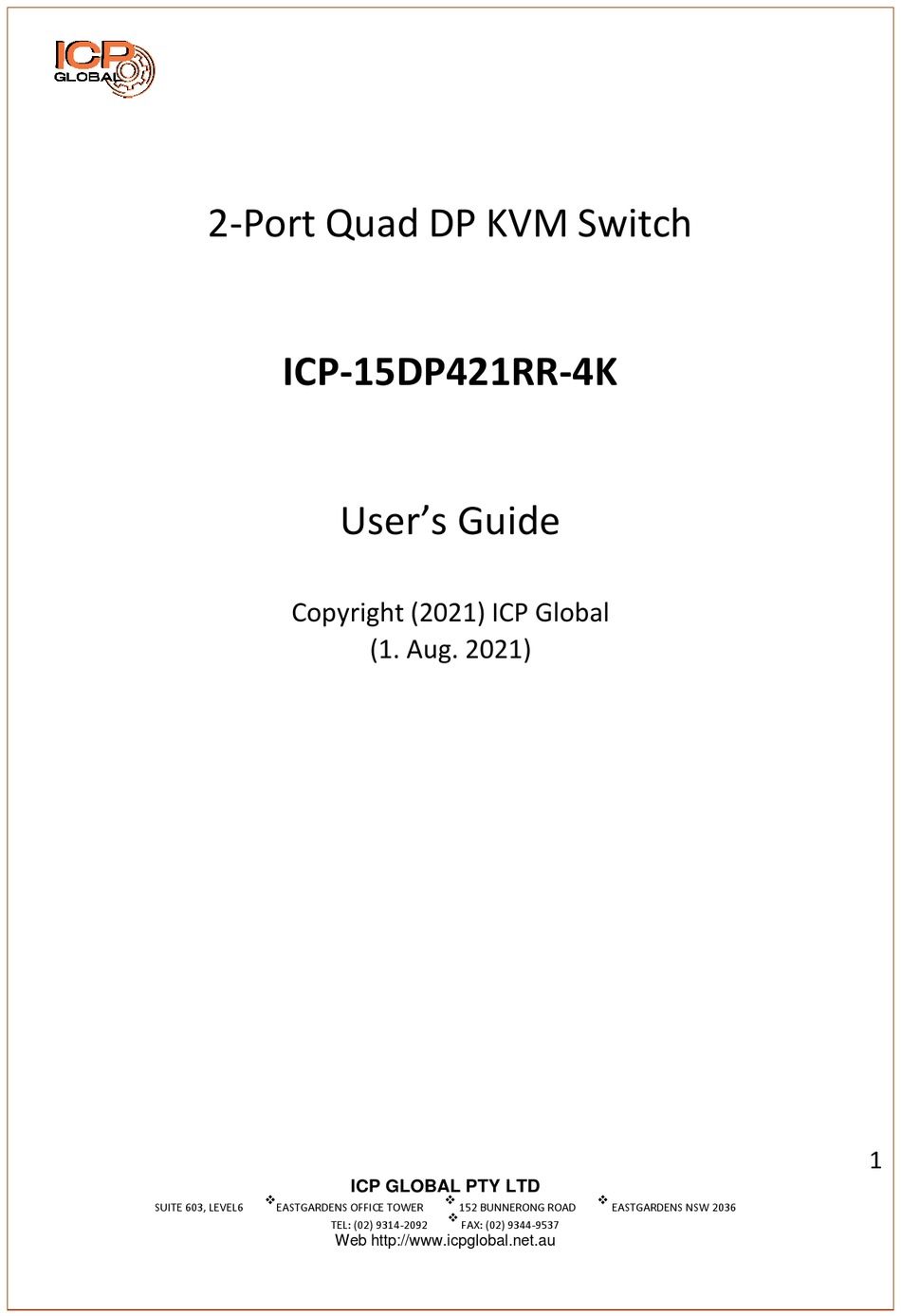

- Page 1 2-Port Quad DP KVM Switch ICP-15DP421RR-4K User’s Guide Copyright (2021) ICP Global (1. Aug. 2021) ICP GLOBAL PTY LTD SUITE 603, LEVEL6 EASTGARDENS OFFICE TOWER 152 BUNNERONG ROAD EASTGARDENS NSW 2036 TEL: (02) 9314-2092 FAX: (02) 9344-9537 Web http://www.icpglobal.net.au...
-
Page 2: Package Contents
Package Contents The ICP-15DP421RR-4K package consists of: 1 x ICP-15DP421RR-4K 2-Port Quad DP 1 x KVM Switch Rack Mount kit 1 x Switching Button Extension Cable Introduction ICP-15DP421RR-4K is a 2-Port Quad DP KVM switch provides a single user interaction with 2 PCs with quad DisplayPort video outputs using up to four screens and a singe mouse &... -
Page 3: Rear Panel View
DP-Out 6.Console Console Audio Line-Out/Microphone Line/Mic Out 7. Console USB Console USB HUB for devices 8. Console Console Keyboard/Mouse Keyboard Mouse ICP GLOBAL PTY LTD SUITE 603, LEVEL6 EASTGARDENS OFFICE TOWER 152 BUNNERONG ROAD EASTGARDENS NSW 2036 ... -
Page 4: Front Panel View
Red LED to indicate PC1/PC2 Online status 2. PC1/2 Select Green LED to indicate PC1/PC2 selected 3. MSDI Connects to Switching Button Extension Cable 4. RST Button to reset the internal KVM board ICP GLOBAL PTY LTD ... -
Page 5: Installation
Installation 1. Use DP-to-DP cables to connect PC1/2 DP video sources to ICP- 15DP421RR-4K DP-In port. 2. Use USB B-to-A cable to connect PC1/2 USB to ICP-15DP421RR-4K USB-B port. 3. Attach 4 DisplayPort monitors to the ICP-15DP421RR-4K Console DP- Out. -
Page 6: Specifications
Environmental Relative Humidity Operating – 20 ~90% MSDS - Material Safety Data Sheet : RoHs Service Life – 8 years Shelf Life – 5 years Manufactured under ISO 9001-2015 Manufactured Taiwan ROC ICP GLOBAL PTY LTD ...
