- Page 1 USER MANUAL To prevent DEATH, SERIOUS INJURY or PROPERTY DAMAGE, you should read, understand and follow the warnings and instructions in this manual. Keep for future reference.
- Page 3 For replacement parts and accessories, you should always use Evolve Skateboards approved parts, as they have been specially designed for your board and are manufactured to meet your Evolve Skateboards demanding standards. This manual should be considered a permanent part of your Evolve Skateboard and should remain with the skateboard when it is sold.
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION SAFETY MESSAGES HADEAN BAMBOO HADEAN CARBON PHAZE REMOTE TURNING THE BOARD ON / OFF TURNING THE REMOTE ON / OFF YOUR FIRST RIDE CONTROLLING YOUR BOARD FOOT PLACEMENT PHAZE REMOTE REMOTE SCREEN GUIDE REMOTE MENU CONTROLS PAIRING / SYNCING THE REMOTE AUTO SAFE MODE CHANGING SPEED MODES ON THE REMOTE... - Page 5 CONTENTS TRIP METER OTHER REMOTE OPERATION FUNCTIONS POWER SAVE FUNCTION SMART START BATTERY INDICATOR DISPLAY LED SETTINGS MY BOARD TRIGGER CALIBRATION BATTERY CARE CHARGING SAFETY CHARGING THE BOARD CHARGING THE REMOTE TROUBLESHOOTING ERROR CODES PROTECTION WARNINGS STORING YOUR BOARD MAINTAINING YOUR BOARD DISPOSAL WARRANTY...
-
Page 6: Important Safety Information
These regulations may change at any time. INTENDED USE The intended use of your Evolve Skateboard is to be ridden by one adult rider (Age 16 and up and up to 120kg (265 lbs) on the Hadean Carbon or 100kg... -
Page 7: Safety Messages
• Read all safety warnings and all instructions. • Always ride within your limits and the limits of your Evolve Skateboard. ALWAYS ride at speeds at which you are comfortable without power or brakes. Your board can lose power or brakes during your ride if the available charge in the batteries in your board or in your remote is too low. - Page 8 • BE AWARE OF SKATEBOARD REGULATIONS IN YOUR AREA. Generally, the regulations for the use of an Evolve Skateboard are the same as local Personal Mobilty Device (PMD) regulations or those for a standard skateboard. There may be local differences such as where you can ride, minimum rider age, or required equipment and registration regulations.
- Page 9 RIDE AT YOUR OWN RISK AND USE COMMON SENSE YOUR EVOLVE SKATEBOARD HAS A MAXIMUM SPEED OF 50 KPH • (31 MPH). • Do not ride distracted. Always remain alert to all riding conditions. Using technology (including your mobile phone or music player) while riding could distract you.
- Page 10 • Your Evolve Skateboard can climb hills of up to 35% gradients. Riding continuously on steep hills will put massive stress on your board, the motors and the brakes.
- Page 11 SIGNAL WORDS Indicates a hazardous situation that, if not avoided, will result in death or serious injury. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. Indicates a hazardous situation that, if not avoided, could result in minor or Moderate injury.
-

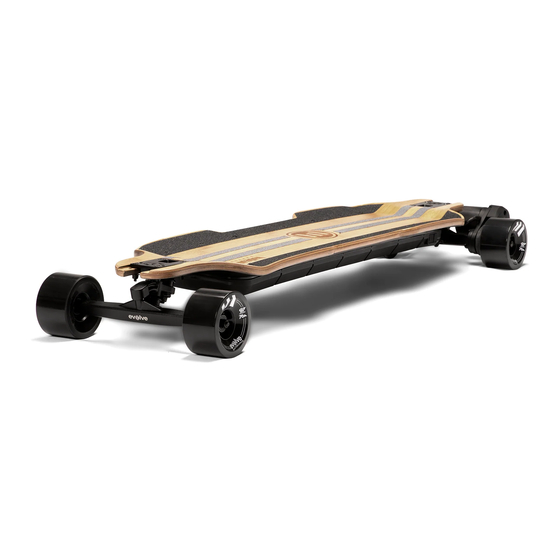

Page 12: Hadean Bamboo
HADEAN BAMBOO Front Truck Headlight Battery Enclosure Bamboo Deck Charge Port On/Off Button Motor Controller Brake Lights Prism Strip Ports Rear Truck Belt All Terrain Wheels Street Wheels... -
Page 14: Hadean Carbon
HADEAN CARBON Front Truck Downlights Battery Enclosure Forged Carbon Deck Air Intake Motor Controller On/Off Button Charge Port Rear Truck Belt All Terrain Wheels Street Wheels... -
Page 16: Phaze Remote
PHAZE REMOTE Brake Mode 1 Button Mode 2 Button On/Off Button Lanyard Loop LCD Screen Accelerator Safety Switch Charge Port... - Page 17 PRE-RIDE CHECKLIST BEFORE EACH RIDE, INSPECT YOUR BOARD AND REMOTE FOR DAMAGE. DO NOT RIDE IF DAMAGED. CHECK BOTH THE FRONT AND REAR TRUCKS AND ALL FOUR WHEELS ARE SECURE. BE SURE TO MAINTAIN YOUR ALL TERRAIN TYRE PRESSURE BETWEEN 45-50 PSI.
-
Page 18: Turning The Board On / Off
TURNING THE BOARD ON / OFF To turn the board ON, press the ON/OFF button. The LED lights on the battery case or skateboard deck will illuminate indicating the board is ON. To turn the board OFF, press the ON/OFF button again and the lights will turn off. -
Page 19: Turning The Remote On / Off
ON/OFF light will turn blue. Once ON, the LCD screen will power on and brie y display the Evolve logo and then switch to a ‘Pair Remote’ screen. This will instruct you how to pair your remote to your board. -
Page 20: Your First Ride
CONTROLLING YOUR BOARD Your Evolve Skateboard is controlled by a combination of your inputs to the board and remote. Turning and stability is dependent on the rider. To turn the board, you must lean in the direction you wish to turn. To keep stable, it is recommended to stay relaxed, so that your body can absorb bumps and movements created by the terrain or remote input. -
Page 21: Foot Placement
FOOT PLACEMENT Foot placement varies from person to person. The closer your front foot is to the front truck, the more control you will have. REGULAR GOOFY... -
Page 22: Phaze Remote
PHAZE REMOTE REMOTE SCREEN GUIDE 88.8 00.0 KM/H KM/H Remote Battery Trip Meter Speedometer Speed Mode Board Battery NOTE - DEFAULT SCREEN SHOWN... -
Page 23: Remote Menu Controls
REMOTE MENU CONTROLS To access the remote menu, turn remote ON, then double tap the ON/OFF button. When in the menu use MODE 1 MODE 2 buttons to navigate/scroll through menu lists. ON/OFF Press button to con rm selections. SAFETY SWITCH When in menu, double-tapping the will take you back to the previous screen. -
Page 24: Pairing / Syncing The Remote
PAIRING / SYNCING THE REMOTE Turn your Evolve Skateboard ON. Turn remote ON. 3. Once the LCD screen displays ‘Pair Remote’, follow the on-screen instructions. Press and hold the MODE 1 button on the remote for one second or until the Bluetooth symbol begins to ash. -
Page 25: Auto Safe Mode
AUTO SAFE MODE SAFE Mode is designed to detect any potential issues with the control of the board. This can relate to potential issues, including battery performance, motor controller performance and remote operational control. SAFE Mode will be activated if a potential issue is detected by the remote. -
Page 26: Changing Speed Modes On The Remote
CHANGING SPEED MODES ON THE REMOTE SAFE Once your remote is paired to your skateboard, it will be in Mode. MODE 1 MODE 2 Press button once, this will change the speed from SAFE Mode to the previous speed setting of your last ride. Each time you press the MODE 1 button, this will increase the speed Mode... - Page 27 CUST Mode can be adjusted via the EXPLORE BY EVOLVE APP which is available on the iTunes App Store or on the Android Play Store. TIP - Use the Speed Modes as you would gears on a bike. Cycle back down from SPORT or CORSA according to the riding situation.
-
Page 28: Safety Switch
SAFETY SWITCH SAFETY SWITCH DEADMAN (AKA switch) is located under the SAFETY SWITCH accelerator trigger. You must hold the using your 2nd and/or 3rd nger as you engage the accelerator trigger to begin riding. The Speed Mode display on the screen will turn a solid colour once you press the SAFETY SWITCH. -
Page 29: How To Accelerate
HOW TO ACCELERATE SAFETY SWITCH With the depressed, pull the accelerator trigger slowly and you will begin to move forward. The further you pull the trigger in, the faster you will go. Once over 5kph (3 mph), then you can release the safety switch. Have your weight positioned on the front foot when you accelerate, this stops the board flying out from under your feet! ACCELERATOR... -
Page 30: How To Brake
HOW TO BRAKE Push the brake trigger forward SLOWLY and you will begin to slow down. The further you push the trigger, the stronger the braking will be. Avoid keeping the thumb on the brake trigger as you ride. The brake trigger takes precedence over all other remote functions and if pressed will cut acceleration, prevent acceleration or changing Modes and will not allow you to turn off the remote. -
Page 31: Select Kph Or Mph
SELECT KPH OR MPH ON/OFF Double-tap the button to access the menu.. Scroll by pressing the Mode buttons until you reach ‘Options’, then press ON/OFF button to con rm selection. Scroll by pressing the Mode buttons until you reach ‘Units’, then press ON/OFF button to con rm selection. -
Page 32: Speed Limiter
The Speed Limiter will set the maximum top speeds to comply with the speci c laws or regulations in the area you intend to ride and should also be used to assist you with riding within your limits. Your Evolve Skateboard has a maximum speed of 50 kph (31mph). - Page 33 OPTIONS TERRAIN TERRAIN SPEED 32KM/HR LIMIT DOWN SELECT TRIGGER BOARD SETUP ON/OFF OPTIONS RIDES EXIT EXIT BUTTON LIGHTS EXIT EXIT SPEED TERRAIN TERRAIN LIMIT KM/HR KM/HR KM/HR SAFETY SWITCH EXIT EXIT EXIT...
-
Page 34: Changing The Wheel & Gear Setting
ON/OFF button to return to the default ride screen. NOTE : The street boards all come with 32T gear as standard. The AT boards come with 66T gear as standard. Other gear sizes and wheels are available on Evolve websites. - Page 35 DOWN DOWN SELECT SELECT BOARD BOARD BOARD ON/OFF WHEEL SETUP RIDES RIDES BUTTON BOARD TEMPS LIGHTS LIGHTS BATTERY DATA EXIT WHEEL SETTINGS TERRAIN TERRAIN TERRAIN TERRAIN STREET SAFETY SWITCH EXIT EXIT EXIT EXIT...
-
Page 36: Trip Meter
TRIP METER The Trip Meter will show your distance travelled for your current ride only in the top left corner of the LCD screen. Once you turn your board OFF, the Trip Meter will reset to 0 distance. 88.8 00.0 TRIP METER KM/H OTHER REMOTE OPERATION FUNCTIONS... -
Page 37: Power Save Function
‘Power Save’. SMART START When your Evolve Skateboard is turned on it has the ability to enter an inactive state that can be remotely turned on by your Phaze remote. After 5 minutes of no use, your board and Phaze remote will enter a sleep mode to save on battery life. -
Page 38: Battery Indicator Display
BATTERY INDICATOR DISPLAY When the remote is connected to the board, it will display how much battery power is remaining in the board and remote battery in real time. The board battery level is displayed as a percentage symbol (%) in the top right-hand corner of the LCD screen and the remote battery level is displayed in a bar below. - Page 39 OFF suddenly when the battery is very low on voltage. This protects both the rider and battery. TIP - As you ride your Evolve Skateboard and use your remote, the skateboard battery meter and remote battery meter will slowly deplete.
-
Page 40: Led Settings
LED SETTINGS The Carbon and Bamboo Hadean boards both have built in LED lights that can be colour customised and synced to the brake trigger to show a red light when applying the brake. To customise the LED colours: ON/OFF Double-tap the button to access the menu. -
Page 41: My Board
MY BOARD Here is where you will nd speci c information and data regarding your skateboard such as board temperatures, battery cell readings, total ride hours, warnings and rmware details: Double-tap the ON/OFF button to access the menu. Scroll by pressing the Mode buttons ‘My Board’, and then press the button to con rm your selection. -
Page 42: Trigger Calibration
TRIGGER CALIBRATION If you experience symptoms such as dif culty changing speed Modes, you are unable to turn the remote off before the board or you can brake but not accelerate, this is usually caused by movement of the trigger magnets from their original positions within the remote case. - Page 43 DOWN SELECT PAIR TRIGGER REMOTE SETUP ON/OFF OPTIONS BUTTON PRESS TO POWER OFF HOLD MODE 1 TO PAIR EXIT LET’S FULLY ENGAGE HOLD FOR TERRAIN TERRAIN TERRAIN TERRAIN TERRAIN TERRAIN CALIBRATE ACCELERATOR 1 SECOND THE REMOTE EXIT EXIT EXIT EXIT EXIT EXIT FULLY ENGAGE...
- Page 44 INTENTIONALLY LEFT BLANK...
-
Page 45: Battery Care
BATTERY CARE Fire and Explosion hazards. Only use original Evolve Skateboards battery packs. Never use any other battery pack with your board. To prevent death, serious injury or property damage: • Do not leave your battery unattended while charging. •... -
Page 46: Charging Safety
CHARGING SAFETY • Do not leave your battery unattended while charging. • Always allow board to cool for 30 minutes before charging. Do not connect your board to the charger until the battery pack has had a chance to cool to an allowable charging temperature. - Page 47 • Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger. Damaged chargers, cables and plugs increase the risk of electric shock. • Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable environment.
-
Page 48: Charging The Board
CHARGING THE BOARD ALWAYS charge your Evolve Skateboard battery before use to maintain the best battery health. Connect power to the charger by inserting the charger plug into an outlet. Remove the rubber grommet from the charger port on the board and insert the charger plug. -
Page 49: Charging The Remote
CHARGING THE REMOTE ALWAYS charge your Phaze remote BEFORE your fi rst ride. The remote may not come fully charged. To charge, insert the USB C plug of the charge cable carefully into the charge port of the remote, and the USB plug end into a suitable USB port. The remote will show: GREEN LIGHT = FULLY CHARGED RED LIGHT = CHARGING... -
Page 50: Troubleshooting
TROUBLESHOOTING This manual is not intended as a comprehensive use, service, repair or maintenance manual. For detailed information regarding tips, maintenance and troubleshooting, please visit EVOLVESKATEBOARDS.COM. Here you will nd links to your local distributor for detailed information. Please contact your local distributor for ALL maintenance and troubleshooting questions. -
Page 51: Protection Warnings
PROTECTION WARNINGS If your board ever experiences operational issues, please contact your local Evolve Skateboards support team for assistance. If ever the board is overworked, it is possible a safety protection could be activated. If this occurs, a warning message will be displayed on the remote. -
Page 52: Storing Your Board
STORING YOUR BOARD Always store your Evolve Skateboard indoors in a dry space, away from heat or ame sources and out of direct sunlight. • Hot or cold temperatures can permanently affect or damage your battery. Do not leave your board in a hot car, a hot environment or exposed to other factors that may expose your board to high heat. -
Page 53: Maintaining Your Board
DISPOSAL When your Evolve Skateboard is no longer usable, dispose of your board according to state and federal regulations. The motors, battery, accessories and packaging should be disposed of in accordance with these regulations. -
Page 54: Warranty
WARRANTY THIS BOARD IS COVERED BY A 12 MONTH MANUFACTURERS WARRANTY (TIME PERIOD MAY BE DIFFERENT IN OTHER COUNTRIES. PLEASE CONSULT THE WEBSITE OR SELLER YOU PURCHASED FROM) THAT COVERS DEFECTS IN WORKMANSHIP AND MATERIAL. THIS DOES NOT COVER MISUSE, PERISHABLE ITEMS (SUCH AS WHEELS, TYRES, TUBES, BEARINGS, BELTS), NEGLECT, ABUSE, ACCIDENT OR RIDING IN WATER AND SHIPPING DAMAGE. -
Page 55: Fcc
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
