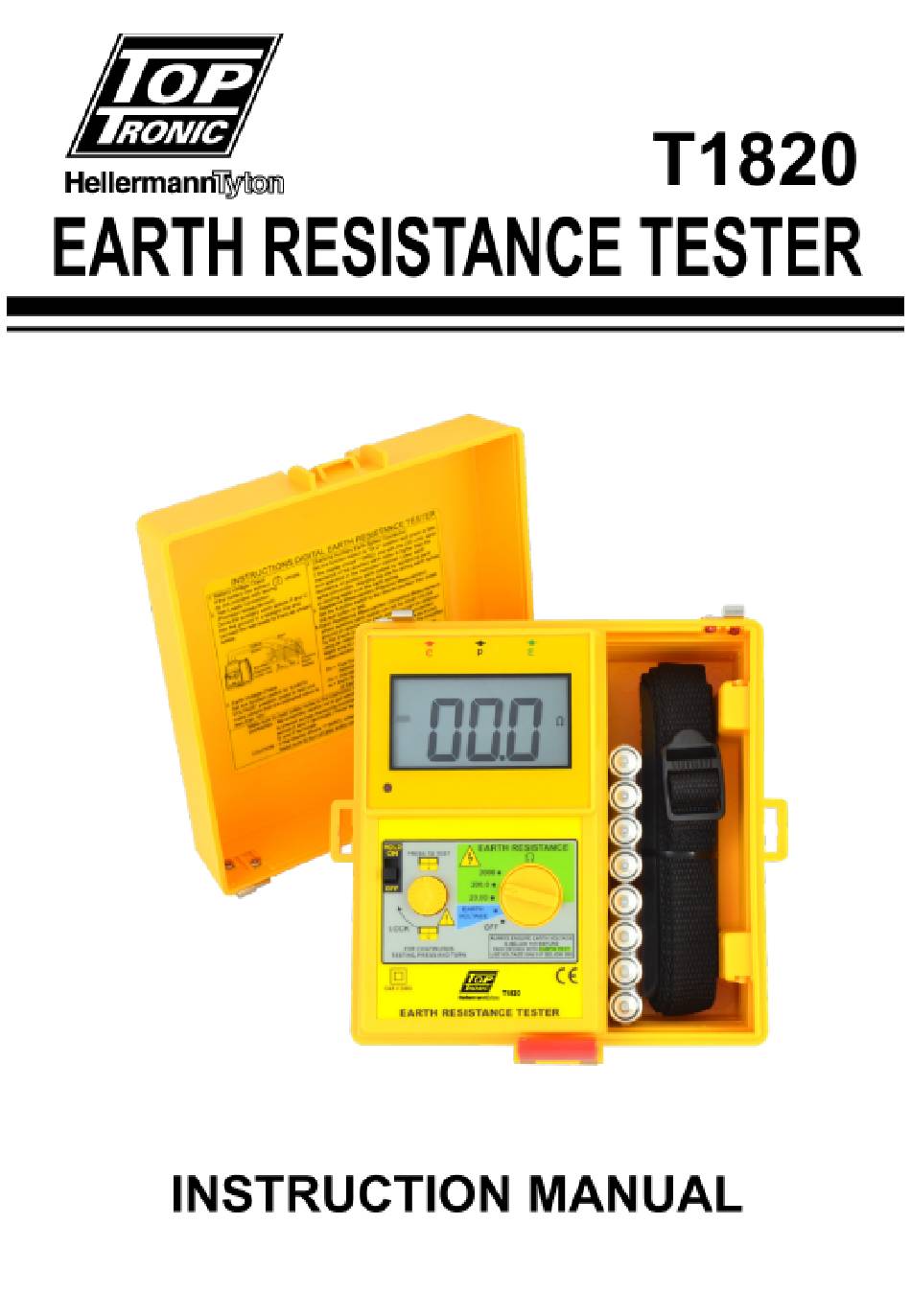

Top Tronic HellermannTyton T1820 Instruction Manual

Earth resistance tester
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HellermannTyton T1820 and is the answer not in the manual?

Questions and answers

Related Manuals for Top Tronic HellermannTyton T1820

Summary of Contents for Top Tronic HellermannTyton T1820

  • Page 2: Table Of Contents

    INDEX Page 1. INTRODUCTION........2. SAFETY NOTES........3. FEATURES..........4. SPECIFICATIONS........5. MEASUREMENT METHODS....6. MAINTENANCE........

  • Page 3: Introduction

    1. INTRODUCTION NOTE This meter has been designed and tested in accordance with the CE Safety Requirements for Electronic Measuring Apparatus, EN61010-1 EN61326-1 and other safety standards. Follow all warnings to ensure safe operation. Application: Earth Resistance Tester is used to measure the ohms (Ω) of an earth grounding installation for buildings (residential, ofice, labs, hospitals), computer server rooms, military installations, cellular sites, radio and cable towers, etc.

  • Page 4: Safety Notes

    2. SAFETY NOTES Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as speciied in this manual; otherwise the protection provided by the meter may be impaired. Rated environmental conditions: (1) Indoor use. (2) Installation Category II.

  • Page 5: Features

    3.FEATURES Capable of measuring earth voltage. 2mA measuring current permits earth resistance test without tripping earth leakage current breakers in the circuit under test. In addition to the facility for precision measurement, test leads for simpliied two wire measuring system also supplied as standard accessories.

  • Page 6: Specifications

    4. SPECIFICATIONS Earth Resistance 0-20Ω/0-200Ω/0-2000Ω Measuring Ranges Earth Voltage 0-200V AC (40-500Hz) Earth Resistance ±(2%rdg+2dgt) Accuracy Earth Voltage ±(1%rdg+2dgt) 0-20Ω(0.01Ω) 0-200Ω(0.1Ω) Earth Resistance Resolution 0-2KΩ(1Ω) Earth Resistance by constant current inverter 820Hz Measuring System approx. 2mA. " "symbol appears on the Low Battery Indication display "...
  • Page 7 Test leads(red-15m yellow-10m green-5m) Auxiliary earth spikes Simpliied measurement Accessories probe Shoulder belt Instruction manual Batteries...
  • Page 8 5. MEASURING METHODS BEFORE PROCEEDING MEASUREMENT, READ SAFETY NOTES ON PAGE 2. In proceeding with measurement, if " " symbol appears on the display, replace with new batteries. 1. Earth voltage measurement Rotary to function switch to "EARTH VOLTAGE" position and press to test.
  • Page 9 Fig.2 3. Simpliied earth resistance measurement method (1) This method is recommended where an earth resistance higher than 10W is measured or where it is not possible to drive auxiliary earth spikes. An approximate value of earth resistance can be obtained by the two wire system where is shown in Fig.

  • Page 10: Maintenance

    6. MAINTENANCE Battery replacement: When the symbol " " appears on the display, replace with new batteries as follows: (1) Disconnect the test leads from the instrument and turn off the power. (2) Use a screwdriver to unscrew the screw on back cover then slide the cover, take out the batteries and replace with new batteries type SUM-3.
