Verve PANTERA Use & Maintenance Manual

Hide thumbs Also See for PANTERA:
Table of Contents

Advertisement

Quick Links

Download this manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANTERA and is the answer not in the manual?

Questions and answers

Related Manuals for Verve PANTERA

Summary of Contents for Verve PANTERA

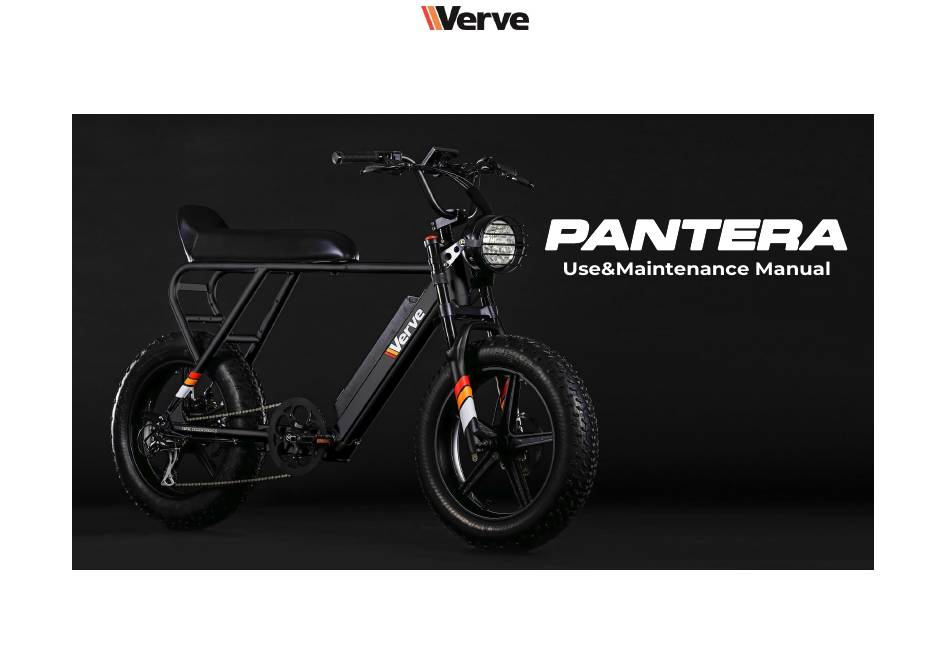

  • Page 1 Page 1...
  • Page 2 Please read this owner's handbook carefully before using your Pantera e-bike in order to become thoroughly familiar with all the correct operations of your controls, its features and capabilities. Please note that all instructions and notice are subjected to change and updates without notice.

  • Page 3: Table Of Contents

    CONTENTS Page GENERAL INFORMATION LEGAL REQUIREMENTS DIAGRAM OF PANTERA E-BIKE UNPACKAGING GETTING STARTED ASSEMBLY INSTRUCTION PRE-RIDE SAFETY CHECKS OPERATING GENERAL WARNINGS SAFETY MAINTENANCE SCHEDULE MAINTENANCE DETAILS WARRANTY Page 3...

  • Page 4: General Information

    CAUTION! This symbol marks sections of high importance. Neglecting this information may lead to injury or damages on your Pantera WARNING! This symbol marks sections of extreme importance. Neglecting of this information may lead to severe injuries or death.
  • Page 5 Please perform a safety check before each use, as described on in the “Pre-ride Safety Check” section. If you feel uncertain about proper configuration after assembling your Pantera according to the provided assembly instructions, please contact us or visit your mechanic of trust. If any of the instructions are beyond your skill set, we recommend taking your bike to a certified e-bike specialist or professional cycle mechanic for the assembly process.

  • Page 6: Legal Requirements

    Any modification or alterations to the electrical system (tuning) voids all warranty claims. For the latest information on assembly and maintenance, please visit our website. Your Pantera electric bike is designed for use on paved paths only. You should therefore never ride on stairs, jump, or perform dangerous activities like "wheeling", etc.

  • Page 7: Diagram Of Pantera E-Bike

    3. DIAGRAM OF PANTERA 1 FRAME 2 BATTERY 3 FRONT FORKS 4 FRONT WHEEL 5 REAR WHEEL 6 DISPLAY 7 GRIP 8 RIGHT BRAKE LEVER 9 LEFT BRAKE LEVER 10 SADDLE 11 HANDLE BAR 12 REAR DÉRAILLEUR 13 CHAIN 14 CRANK SET...

  • Page 8: Unpackaging

    4. UNPACKAGING Pantera is shipped to you in a box, some parts are not mounted ad require assembly The content of the box is: - 1 x Pantera E-bike - 1 x saddle - 1 x Front Tire - 5 x Tools: (2 x 15mm wrench key - 1 x 10/8mm wrench key - 1 Allen key 8 - 1 Allen key 10)

  • Page 9: Getting Started

    5. GETTING STARTED Please read the instruction entirely before assembly, to ensure the proper functionality of your Pantera e-bike. If you don't follow the instruction correctly, you could incur in personal injury or damage to your e-bike. Watch carefully our assembly video at the link below or scan the QR.

  • Page 10: Assembly Instruction

    In order to protect your Pantera from damages all the bike has being covered with plastic foam. DANGER! Do not ride your Pantera if it has not passed 100% safety checks before each ride, as described in the section called PRE-RIDE SAFETY CHECK...
  • Page 11 We suggest to lay the front wheel on a soft rag. Now carefully take out Pantera from the box. The weight of the bike is 31Kg so if you need a help, ask a friend to give you a hand. Once the bicycle is out, gently put the bike on the ground. The front wheel is not mounted yet, so in order to avoid any problems lay the front fork bottom on a soft surface.
  • Page 12 6.3 PLACE THE E-BIKE As mentioned in point 6.1, Pantera should be located on a flat surface with a soft material under the front forks. Once it's done, it's time to remove all the plastic foam from the bike. Please consider to avoid wasting the boxes and all the foam, because, in case of return, it will be much easier to pack the bike again and send it back..
  • Page 13 6.4 BATTERY REMOVAL As mentioned in section no.5, we recommend you to remove the battery from your e-bike, before you start the assembly. To remove the battery please follow these simple instructions: 1) Use the supplied key and insert it on the left side if the bike. 2) Turn the key clockwise and pull the battery towards you.
  • Page 14 6.5 HANDLE BAR INSTALLATION Mounting the handlebar is very easy, but you must pay much attention. A screw that is not tightened properly and left loose can cause serious problems while driving. Be sure to pay close attention when detailing the screws. Please follow these steps: 1) Use the 5mm hex wrench to remove the bolts of the handlebar clamp.
  • Page 15 In order to mount the front tire we strongly suggest you to turn your Pantera upside down, as shown in picture. Place protectors under points A and B to protect these parts against bump and scratches, then follow the steps below:...
  • Page 16 3) Slide the wheel into the fork. The front wheel has 2 washers, 2 spacers and 2 bolts. Put aside the nut and slide into the from axle, 1 spacer on each side. Pay attention not to scratch the front fork paint. 4.
  • Page 17 Required tools for this operations: 1 Allen key 5mm and 2 wrench keys 15mm Make sure to follow the instructions step by step and to tight the front wheel at the end. 6. Lock again the brake caliper. For this operation, pull the brake lever until the caliper is pressing the disk (braking), tighten both M6 Allen screws in the caliper mount, while pulling the brake lever.
  • Page 18 6.7 TIRE INFLATION The e-bike now is in a good position to inflate the tires. For transport purposes, tires are packed partially inflated. Tires must be inflated using a pump with a Schrader valve tip to a recommended 20-25 psi (1.4-1.7 bar). 1.
  • Page 19 6.8 SADDLE For safety reasons the saddle in not mounted on the bike. Turn the bicycle back in the standard position. The saddle must be fixed to the frame with 7 Allen screws: - 1 x 5x50mm (Longer front screw) - 6 x 5x30mm Please follow the steps below: 1) Place the saddle on top of the frame...
  • Page 20 6.9 PEDALS Install and tighten the pedals, using the 15mm open wrench supplied in the box. Look for a letter marking “L” and “R” on each respective pedal and make sure you install the left pedal on the left crank and the right pedal on the right crank. Tighten with recommended torque of 29-34Nm for pedals.
  • Page 21 6.10 HEADLIGHT The headlight is made of 3 parts: - 1 x Led Headlight - 2 x Headlight Brackets - 1 x Front grill Page 21...
  • Page 22 You will need to install these components: 1 x 8mm Allen key 1 X 10mm Allen key 1 x 10 open wrench 1) Put the plate into the right headlight bracket. 2) Use the Allen screws to fix it 3) Repeat the same operation with the left bracket 4) Make sure the two supports are at the same height.
  • Page 23 Page 23...

  • Page 24: Pre-Ride Safety Checks

    7. PRE - RIDE SAFETY CHECKLIST DANGER! Use the following checklist before each ride to check your bike is safe to ride. Never operate without checking the following list first. Make sure the brakes have being applied on the bike. If the power is ON, the e-bike will start moving once you put your feet on pedals.
  • Page 25 GEARS 1) Test ride Pantera in a safe place away from traffic to familiarize yourself with operating the gear shifter. 2) Make sure that all the gears are working properly and that the derailleur is working. You should be able to shift into the lowest and highest gear without chain skipping.

  • Page 26: Operating

    8. OPERATING We are almost done! Now it´s time to install the battery and start to operate your Pantera. To install the battery simply place the battery back in position. You must hear the "click" noise, once the battery is in position.
  • Page 27 Please refer to the instructions below on how to operate the switches and how to read info on the display Page 27...
  • Page 28 Page 28...
  • Page 29 7. When you are in P3 mode: P3 0 means cadence sensor selected, while P3 1 means torque sensor selected 8. Push to select cadence sensor (0) or torque sensor (1) 9. Hold to end the setting Scan the QR code to watch a video tutorial on how to set torque or cadence sensor on your Pantera Page 29...
  • Page 30 Battery Charger To recharge the battery of your e-bike, use only the charger provided in the box. Connect the power plug of the battery charger to a socket (blue circle). Pull and move aside the rubber cup that covers the charging socket connector and plug the battery charger (red circle).
  • Page 31 Battery Range The maximum range of a full charge depends on many variables such as: age of battery, type of terrain and incline, rider's weight, speed, outside temperature, driving style, amount of pedaling, or tire pressure. In case of extreme cold temperatures, the range of your electric bike is reduced. It is a normal physical process, and it doesn't damage or defect of the battery.
  • Page 32 The battery has a total of around 1,000 full cycles when it’s new. As the battery ages, the battery capacity diminishes. Front Forks Adjustment Pantera is quipped with adjustable front forks absorber. It is possible to regulate the following settings: Compression (right side): rotate the knob counter-clockwise to soften the front forks.

  • Page 33: General Warnings

    11) Use and maintain distance from other vehicles. 12) Turn on lights in the dark and at dusk. 13) Take special care in wet conditions. Pantera is not intended to be immersed in water or any other liquid. Page 33...

  • Page 34: Safety

    A serious injury or death can be caused by not paying attention to this notes. RIDING 1. All users and riders must read and understand this manual before use Pantera for the first time. 2. Always wear an approved bicycle helmet.
  • Page 35 Charger 1. Do not use Pantera battery charger to charge any other device. 2. Do not use any other charger or other charger methods to recharge the battery, as the battery can catch on fire, explode or be damaged. 3. Do not allow children to get close to the battery or battery recharger.
  • Page 36 Battery All the operations made on the battery are potentially dangerous. Do not make any work on the battery for any reason. If the battery has problems please contact us or a specialized e-bike mechanic Battery is the most important component on an e-bike. Please follow carefully these rules: 1.

  • Page 37: Maintenance Schedule

    11. MAINTENANCE SCHEDULE In order to prolong life of your Pantera and to have the best performance from your e-bike, please follow the maintenance schedule below: Intensive use of your bike can damage the frame and the forks of your bike. It is important to inspect this components before each ride and look for signs of cracks.

  • Page 38: Maintenance Details

    12. MAINTENANCE DETAILS DANGER Your Pantera has many advanced parts and components. Many bicycle service and repair tasks require special knowledge. Do not start any adjustment or service on your bicycle unless you are able to properly complete them. Improper service may results in damage to the bicycle and serious injury to the rider. Consult your dealer or a bicycle mechanic if you need any help.
  • Page 39 We invite you to check the condition of your e-bike before riding it. In particular: Tires / Wheels Pantera has 20 x 4 rubber tires with inner tubes mounted on 5 spokes rims. The internal tubes can get a puncture. Repairing a puncture must be performed the same way as with standard bicycles.
  • Page 40 Pantera is equipped with mechanical disc brakes. This requires maintenance not only on the pads and rotors but also on the mechanical brake cable. Regularly check the condition of your cables. Pads wearing on a mechanical disc brake can be regulated by unscrewing the cable tension knob. There is a complementary adjustment of the inner pads, which can be tightened closer or removed from the disc by screwing it in or out with a 5mm Allen key.
  • Page 41 Brake check 1. Pull the brakes levers. At the end of their travel, they should not be in contact with the handlebar. 2. Lift and spin the wheels. They should spin freely. If this is not the case, you will need to adjust the brake caliper. This is a complex operation that needs a lot of care: loosen the clamping bolts, fully tighten the brake lever and tighten the clamping bolts.
  • Page 42 Chain tension The chain endures strong tension forces from pedaling. For optimal shifting and efficiency, the chain must connect with the teeth properly. To check for excessive slack, shift to the smallest gear on the cassette (if applicable) to create the greatest amount of slack in the chain.
  • Page 43 Adjustment of the rear derailleur Pantera is equipped with a Shimano RD M360 - 8 gear cassette model. It is recommended that you inspect the derailleur for wear and periodically lube the chain. Clean the cassette and chain with biodegradable cleaners only. Rinse thoroughly with water and allow the parts to get dry.
  • Page 44 Lighting system Pantera lighting system is wired into the main harness of the electric bike. For replacement, you must disconnect the cables on both the rear light and front light and get new parts. There are no batteries in the lights. Make sure the front and rear lights are clean before riding.
  • Page 45 Dry your bike after each wash. Do not clean your Pantera with a strong water jet or steam jet from a short distance. The water can get past the seals and get inside the bearings or electronics. Moreover, lubricants can be diluted, increasing friction. In the long run, the bearing surfaces can deteriorate.

  • Page 46: Warranty

    2. Warranty is provided to the original owner only and is nontransferable. It is only effective with a valid proof of purchase. Verve CW S.r.l.. reserves the right to reject the coverage of this warranty if the accompanying documentation is not accurate or complete.
  • Page 47 Verve CW S.r.l.. has the rights to approve or not warranty claim, and if necessary to request further photo/video material or to ask the owner to ship the part subjected to warranty claim at owner's cost for further inspection.
  • Page 48 4. Warranty is void if serial number on the e-bike frame has been manipulated, altered, partially or completely blurred or deleted. 5. Warranty on the whole e-bike is void if there Verve CW S.r.l.. concludes there has been a case of modification of one or more e- bike components with firmware.
  • Page 49 Follow us on Instagram, Facebook and YouTube, for all Verve news! You can use the QR codes below © All rights reserved Verve CW S.r.l. - P. IVA (VAT no.): 11453970961 - Via Val di Non 33/A - 20128 Milano...
