Madimack AUTO R100 Installation Manual

Advertisement

Installation Manual
AUTOMATION BRIDGE
240v Device Autor100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTO R100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Madimack AUTO R100

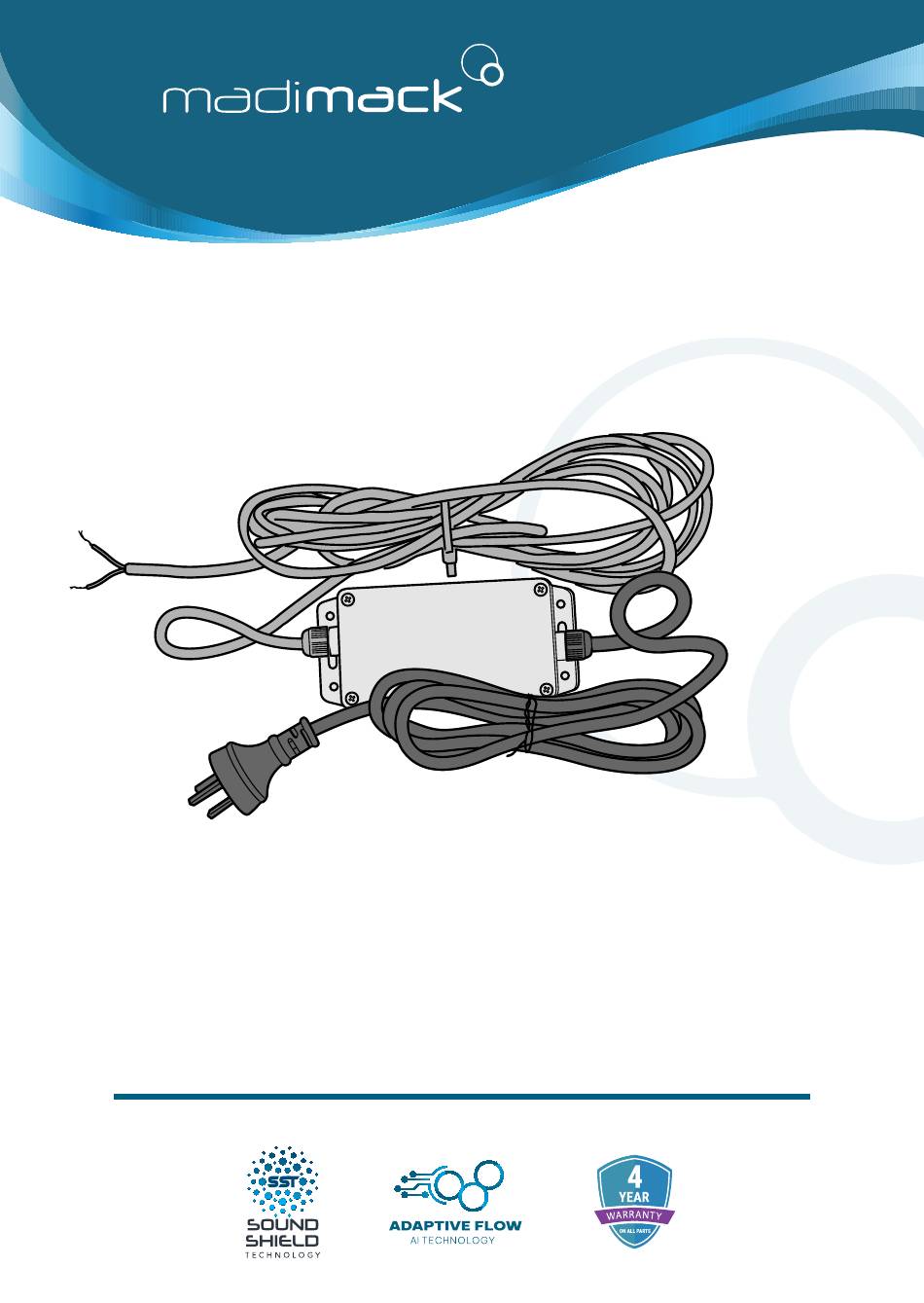

  • Page 1 Installation Manual AUTOMATION BRIDGE 240v Device Autor100...
  • Page 2 Is a 240v relay switch device – used to transform 240v into a low voltage applicable communications. IMPORTANT REQUIREMENTS Connect 10 will need 1x unused 240V Channel (2, 3, 4, 5, 6, 7,or 8). Temperature Sensor will need to be in the cold water side in the same line as the heater and before the heater.
  • Page 3 3. In the Connect 10 "SYSTEM/LOCAL", jumper needs to be set to "Local". (see Connect installation for more information if not sure). 4. Plug Madimack Auto Relay male plug into empty Aux. output (usually AUX 8). 5. Run Madimack black 2 core cable from Auto Relay into Heat Pump's Control connection 5 and 6 Terminals remove loop cable and replace with 2 core cable.
  • Page 4 CONNECT 10 SOFTWARE Connect 10 software versions have different menus, wordings, etc. so there may be some variations to the instructions below. SETUP 1: 1. In the Connect 10, go to Installation Setup & Enter your PIN. 2. In Setup, under Heater, go to Is a Genus Heater installed? Select No. 3.
