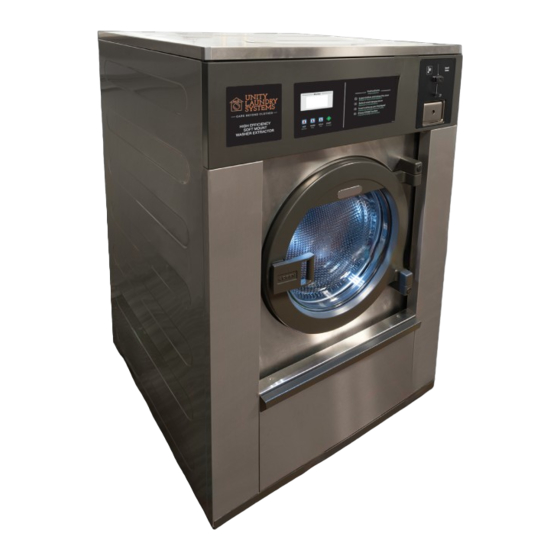

- Page 1 INSTALLATION INSTRUCTIONS FOR WASHERS MODEL NUMBER: UTS38 INSTALLATION UTS38 110 Canal Street, 3rd floor Lowell, MA 01852 United States info@ulaundrysystems.com www.ulaundrysystems.com Part. 13000101 Rev. 02/2019 ®/™ ©2019 Unity Laundry Systems. All rights reserved.
-
Page 2: Table Of Contents
6.2. Daily ......................19 6.3. Weekly .......................20 6.4. Monthly ......................21 6.5. Quarterly ....................21 6.6. Over Shake Protection ................21 6.7. Variable Frequency Drive (VFD) ...............21 6.8 Troubleshooting ..................22 ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 3: Safety Information
5. Do not store or install the machine in areas exposed to the ELEMENTS or where it may be splashed by water. should be supervised to ensure that they do not play with the appliance. This is a safety rule for all appliances. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 4: Safety Decals
37. THE MANUFACTURER ACCEPTS NO RESPONSIBILITY IF THESE SAFETY INSTRUCTIONS AND ALL THE ACCESS PROHIBITED INFORMATION IN THE CORRESPONDING MANUALS ARE NOT FOLLOWED. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019 Rev. 02/2019... -
Page 5: Operator Safety
00 SAFETY INFORMATION 01 INTRODUCTION 0.4 OPERATOR SAFETY Thank you for the purchase of a Unity Laundry Systems washing machine. Please read this manual carefully before installing and operating the washer. WARNING 1.1 DELIVERY INSPECTION NEVER insert hands or objects into basket until it has completely stopped. -
Page 6: Specifications And Dimensions
Minimum Clearance in front of Machines - in (mm) 39.4 (1,000) Minimum Clearance Behind Machines - in (mm) 31.5 (800) ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019 Rev. 02/2019... -
Page 7: Installation
2. Check filters in the machine’s inlet hoses for proper fit and cleanliness before connecting. 3. Hang hoses in a large loop; do not allow them to kink. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 8: Drain Connection
For personal safety and proper operation, the machine must be grounded in accordance with state and local codes. The ground connection must be made to a proven earth ground, not to conduit or water pipes. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 9: Supply Dispensing
2. Drill through the five plastic holes on the valve panel for the external supply hoses as needed. 3. Remove plastic debris. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019... -
Page 10: Control Interface
Press this button to select cold water temperature. [Start] button Enter Press this button to start executing the selected wash cycle. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019 Rev. 02/2019... -
Page 11: Operation
After completing the cycle, the controller displays end status. The controller beeps to inform the user of a cycle completion. The buzzer can be canceled by pressing [Start] button during this beeping time. • When cycle is complete. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019... -
Page 12: Maintenance
5. Verify that insulation is intact on all external wires and that all connections are secure. If bare wire is evident, call a service technician. ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 13: Monthly
· Drain valve malfunction Water leaking 2. The VFD status and error codes can be viewed on the controller. If you receive a VFD error, contact Unity Laundry Systems. · Check hoses and hoses connections, replace or · Hoses leaking tighten if necessary ®/™... - Page 14 ·Check program settings, modify if necessary flushing · 4-way water inlet valve malfunction ·Check the 4-way inlet valve, replace if necessary ®/™ ©2019 Unity Laundry Systems. All rights reserved. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Rev. 02/2019 Rev. 02/2019...
