  • Page 1 [u-Nova + USB 3.0] [Installation guide] Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 2: Table Of Contents

    [u-Nova + Installation guide] CONTENTS 1. RECOMMENDED SYSTEM CONFIGURATION ................4 2. PREPARATION FOR CAMERA CONFIGURATION ................4 3. HANDLING PRECAUTIONS ....................... 4 3.1. I ............................4 NSTRUMENT SAFETY INSTRUCTIONS 3.2. I ..............................4 MPORTANT SAFETY PRECAUTIONS 3.3. H ................................5 ANDLING AND CLEANING 3.4.
  • Page 3 [u-Nova + Installation guide] 8. IMAGE TABLE OF CONTENTS ......................31 9. TABLE OF CONTENTS ........................32 10. REVISION HISTORY ........................32 11. CONTACTING US ..........................32 Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 4: Recommended System Configuration

    3.1. Instrument safety instructions • We are not responsible for any damage caused by user negligence or other equipment connection. • Handle the u-Nova with care. For example, be careful of strong impact or storage in an unsuitable environment. • Do not use accessories that are not recommended as they may be dangerous.

  • Page 5: Handling And Cleaning

    [u-Nova + Installation guide] • When using the camera outdoors, protect it from moisture. (rain/snow, etc.) • Board level notes - Be careful to avoid electric shocks such as static electricity (ESD). - Use a ground (GND), etc. to cope with ESD, etc.

  • Page 6: Performance And Longevity

    • To avoid damaging the connector, do not pull by the electric wire, etc. 4. Installing the Software 4.1. Download the Installation File We recommend that you download and install the latest version of the SDK from the Novitec website. Go to the Novitec website (https://www.novitec.co.kr/). <image> 1. Enter the website address image b.

  • Page 7: Image> 3. Click 2D Vision Image

    [u-Nova + Installation guide] <image> 3. Click 2D vision image d. Click one of the uN-20M, uN-20C, uN-20C-F in the camera list to Access the page. <image> 4. Camera list image Click [Download] of SDK, in the download field at the bottom of the product page.

  • Page 8: Install The Novitec Software

    4.2. Install the Novitec Software Refer to 4.1. Download the Installation File to prepare the installation file for Windows. Execute the u-Nova SDK installation file (Setup_u-NovaSDK_X.X.X.X.exe) and Click [Next >]. <image> 7. Installation Startup Image b. Click [I Agree]. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 9: Image> 8. License Agreement Image

    [u-Nova + Installation guide] <image> 8. License agreement image After selecting the folder to install, Click [Install]. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 10: Image> 9. Choose Install Location Image

    [u-Nova + Installation guide] <image> 9. Choose Install location image d. Click [Finish] to finish the installation. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 11: Installing The Camera

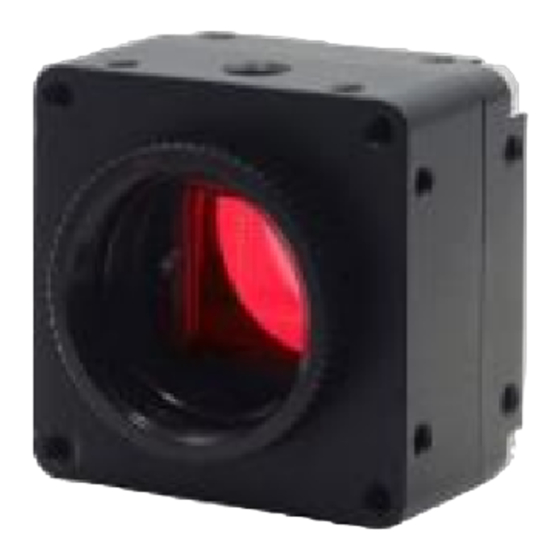

    5.1. Attach a Lens Attach the lens after removing the cap from the lens holder. u-Nova has a removable 5mm C mount adapter is installed as standard, and it can be used as a CS mount by removing the adapter.

  • Page 12: Image> 11. Device Manager Location Image

    Execute [Device Manager] from the control panel. <image> 11. Device manager location image Check the "Other devices" item has a device that starts with the word "u-Nova". - If the device does not appear in the list, check the connection between the camera and the PC.

  • Page 13: Image> 13. Update Driver Image

    [u-Nova + Installation guide] <image> 13. Update driver image Click [Browse my computer for drivers]. <image> 14. Manually select driver location image Click [Browse…]. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 14: Image> 15. Choose Driver Location Image

    [u-Nova + Installation guide] <image> 15. Choose driver location image g. Select drivers from the folder where the user installed the SDK and click [OK]. Default path : Desktop\This PC\Local Disk (C:)\Program Files (x86)\Novitec\u-Nova SDK\drivers\win10\x64 Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 15: Image> 16. Driver Path Image

    [u-Nova + Installation guide] <image> 16. Driver path image h. Click [Next]. <image> 17. Complete driver location selection image Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 16: Launch Viewer

    [u-Nova + Installation guide] Click [Close] to finish updating the driver. <image> 18. Complete driver installation image In the "Device Manager", check that the warning mark on the camera has disappeared. <image> 19. Driver recognized normally image 5.4. Launch Viewer...

  • Page 17: Connect The Camera

    [u-Nova + Installation guide] 3 ways to launch the camera viewer. • Click the shortcut icon of "Novitec Camera Viewer" on the desktop. • Click Novitec - "Novitec Camera Viewer" in the Windows Start menu. • Go to the path below in the File Explorer and run the NvtCameraViewer.exe.

  • Page 18: Get The Image

    [u-Nova + Installation guide] <image> 22. Select camera image Check that [Connect] at the top is activated in blue <image> 23. Status of Connect after camera selection image 5.6. Get the Image Click [Start] at the top of the viewer to check the image.

  • Page 19: Physical Interface

    [u-Nova + Installation guide] <image> 24. Running video image 6. Physical Interface 6.1. Power/Voltage The USB3.0 connector provides a power connection between the camera and the PC. The ideal input voltage is 5V DC. To power the camera, the interface card must be connected to the PC's power supply.

  • Page 20: Troubleshooting

    TTL Ground <Table> 1. GPIO Connector table 7. Troubleshooting 7.1. Upgrading Camera Firmware Users can download the latest version of firmware from Novitec website. Go to u-Nova product page on Novitec website. - u-Nova product page : https://www.novitec.co.kr/sub/view.php?idx=26 <image> 26. Enter the product page address image b.

  • Page 21: Image> 27. Download Section On Product

    <image> 28. Firmware download window image d. Go to the path below in the File Explorer and run the NvtFirmwareUpdator.exe. - Default Path : C:\Program Files (x86)\Novitec\u-Nova SDK\bin\x86 <image> 29. Location of the firmware updater image Click […] of "2. 펌웨어 파일 선택”.

  • Page 22: Image> 30. Choose Firmware File Location Image

    [u-Nova + Installation guide] <image> 30. Choose firmware file location image Select the downloaded firmware file of u-Nova and click [Open]. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 23: Image> 31. Choose Firmware File Image

    [u-Nova + Installation guide] <image> 31. Choose firmware file image g. Select the camera to update firmware in “1. 카메라 선택” and Click [Update] in “3. 업데이트”. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 24: Image> 32. Select Camera And Start Update Image

    [u-Nova + Installation guide] <image> 32. Select camera and start update image h. Check the cautions in the warning window and click [확인]. <image> 33. Firmware update warning image Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 25: Image> 34. Complete Update Image

    [u-Nova + Installation guide] When the firmware update is complete, click [확인]. <image> 34. Complete update image Click [확인] to exit the updater. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 26: Dll & Mfc 110 U . Dll

    [u-Nova + Installation guide] <image> 35. Program after completion image Reconnect the camera's power cable. 7.2. System Error: MSVCR110.dll & mfc110u.dll If a system error of “MSVCR110.dll“ or “mfc110u.dll” occurs when running the firmware updator, follow the steps below. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 27: Image> 36. Mfc110U.dll Error Image

    [u-Nova + Installation guide] <image> 36. mfc110u.dll error image <image> 37. MSVCR110.dll error image Right-click on “This PC” in File Explorer and click [Properties]. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 28: Image> 38. This Pc Properties Image

    Check if the "System type" in the Device specifications is 64-bit(x64) or 32-bit(x86). <image> 39. System type image Go to the path below in the File Explorer - Default Path : C:\Program Files (x86)\Novitec\u-Nova SDK\redist Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 29: Check The Version Of The Usb Port

    Go to the path below in the File Explorer and run usbview.exe. - Default Path : C:\Program Files (x86)\Novitec\u-Nova SDK\bin\x86 <image> 41. Location of the usbview image b. Select “DeviceConnected : u-Nova” from the list on the left. Copyright ©2022_Ver.1 NOVITEC Co., Ltd.

  • Page 30: Image> 42. Deviceconnected Image

    [u-Nova + Installation guide] <image> 42. DeviceConnected image Check the USB version by looking at the bcdUSB in the content on the right. - 0x0300 : USB3.0 - 0x0310 : USB3.1 - 0x0200 : USB2.0 <image> 43. Check bcdUSB version image...

  • Page 31: Image Table Of Contents

    <image> 9. Choose Install location image ............................ 10 <image> 10. Installation finish image .............................. 11 <image> 11. Device manager location image ..........................12 <image> 12. u-Nova driver warning image ..........................12 <image> 13. Update driver image ..............................13 <image> 14. Manually select driver location image ......................... 13 <image>...

  • Page 32: Table Of Contents

    [u-Nova + Installation guide] <image> 38. This PC properties image ............................28 <image> 39. System type image ................................ 28 <image> 40. Location of the vcredist installation file image ....................29 <image> 41. Location of the usbview image ..........................29 <image> 42. DeviceConnected image ............................. 30 <image>...
