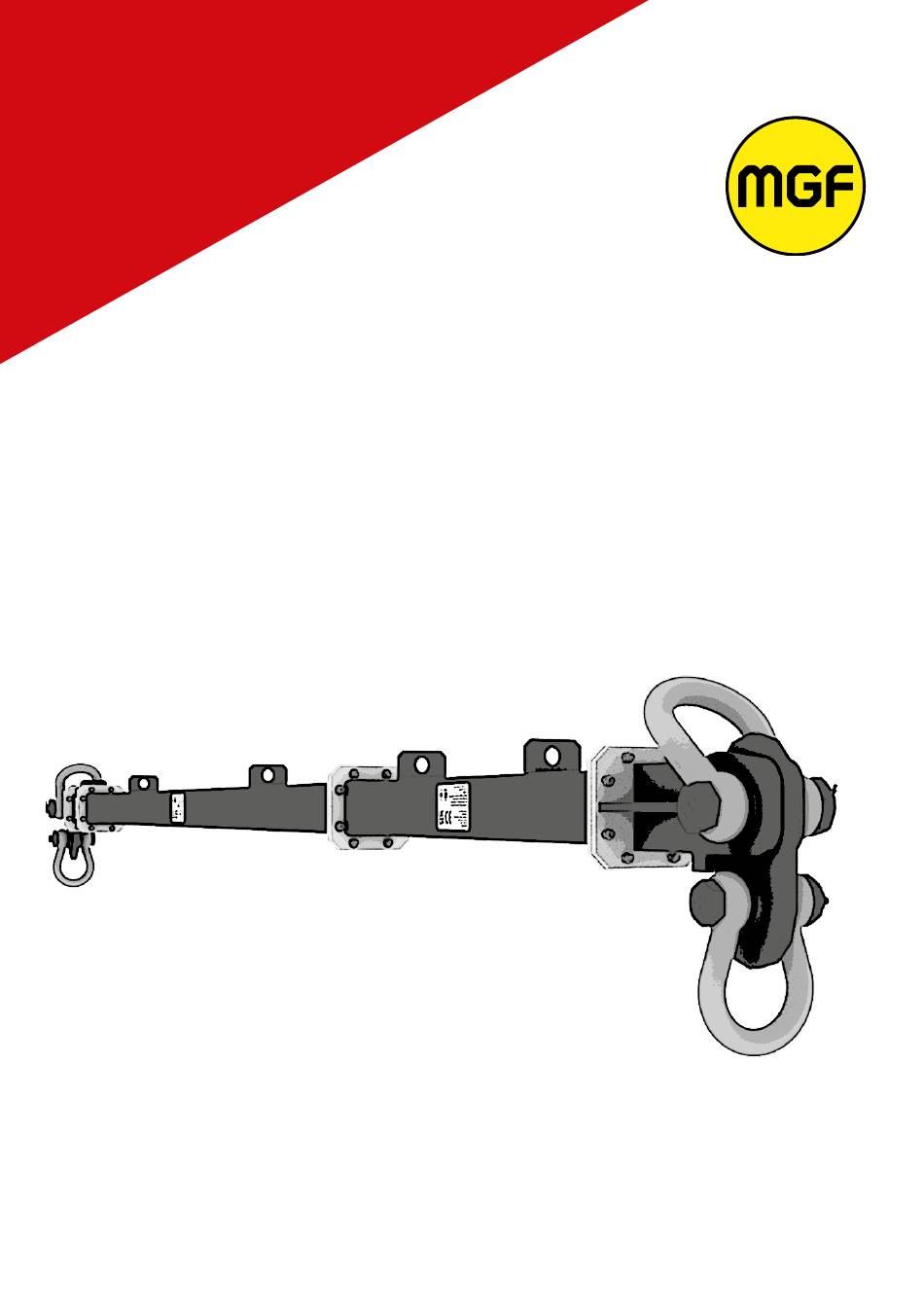

- Page 1 S80 SPREADER BEAM USER GUIDE CREATING SAFE WORKING ENVIRONMENTS mgf.co.uk...
- Page 2 CREATING SAFE WORKING ENVIRONMENTS With over 40 years of experience, MGF is a privately-owned company whose focus is the provision of fully engineered excavation and structural support solutions and complimentary lifting and safety equipment to the construction industry. We combine technical expertise and operational performance to ensure the highest levels of customer service.
-
Page 3: Table Of Contents
CONTENTS SECTION 1: SPREADER BEAM OVERVIEW 1.1 SPAN/CAPACITY CHART SECTION 2: COMPONENTS 2.1 TABLE OF COMPONENTS SECTION 3: ASSEMBLY PROCEDURE 3.1 CRITICAL ASSEMBLY RULES 3.2 SAFE USE WARNINGS SECTION 4: PRE-LIFT CHECKS 4.1 RECOMMENDED TOP SLING TYPE ISSUE 1 MGF-GN33v1.0/Jul22... -
Page 4: Section 1: Spreader Beam Overview
SPREADER BEAM OVERVIEW The MGF S80 Spreader Beam is a modular system which can lift up to 80t and is available in lengths from 1-14m with increments as small as 0.25m. The capacities for various lengths are stated below. For smaller increments in lengths please consult an MGF representative. -
Page 5: Span/Capacity Chart
1.1 SPAN/CAPACITY CHART SLING TO VERTICAL ANGLE (STV) β 30° 45° RECOMMENDED MIN. TOP MIN. TOP CONFIGURATION SPAN SLING LENGTH SLING LENGTH EA-0.5M END ATTACHMENT WEIGHT (KG) 10.0 10.5 10.3 11.0 10.8 11.5 11.3 1033 12.0 11.8 1057 12.5 12.3 1082 13.0 12.8... -
Page 6: Section 2: Components
COMPONENTS Figure 2 - Components 2.1 TABLE OF COMPONENTS PART REF DESCRIPTION PRODUCT ID WEIGHT/ITEM (KG) 85t SHACKLE DROP LINK 2.9203 55t SHACKLE END ATTACHMENT 2.9201 0.25M SPREADER EXTENSION 2.9202 0.5M SPREADER EXTENSION 2.9205 1.0M SPREADER EXTENSION 2.9210 1.5M SPREADER EXTENSION 2.9215 2.0M SPREADER EXTENSION 2.9220... -
Page 7: Section 3: Assembly Procedure
The rigger must ensure there is clearance between sling end and End Attachment (see Figure 5). • For sling to vertical angles between 30° to 45°, either use the 45° capacity or consult an MGF representative for an accurate load capacity. -
Page 8: Safe Use Warnings
3.2 SAFE USE WARNINGS BEFORE OPERATIVES USE THE EQUIPMENT, THEY SHOULD READ AND UNDERSTAND THESE WARNINGS. WHEN MOVING OR POSITIONING LONG EXTENSIONS OR ASSEMBLIES USE TAG LINES TO CONTROL MOVEMENT LOAD MUST BE LIFTED THROUGH THE DROP LINKS, NEVER HANG LOADS FROM SPREADER BEAMS, HANDLING POINTS OR FLANGES AS THE SPREADER BEAMS ARE DESIGNED FOR AXIAL COMPRESSION ONLY THE EQUIPMENT MUST BE USED IN ACCORDANCE WITH THE... -
Page 9: Section 4: Pre-Lift Checks
PRE-LIFT CHECKS Before lifting there are several checks which should be done: • Must ensure that there is suitable clearance between the equipment used to connect to the shackles and the end attachment. • Must ensure that the drop link is free to rotate before use. •... -
Page 10: Recommended Top Sling Type
IT IS THE HIRER’S RESPONSIBILITY TO INSPECT THE BEAMS AND ALL FITTINGS PRIOR TO ANY LIFTING OPERATIONS BEING UNDERTAKEN. CONSULT AN MGF REPRESENTATIVE BEFORE LIFTING IF THERE IS ANY DOUBT OVER THE QUALITY OF THE EQUIPMENT OR IF YOU ARE UNSURE ABOUT ANY ASPECT OF THESE RULES. - Page 13 ASHTON IN WALLWORK ROAD MAKERFIELD ASTLEY, MANCHESTER WIGAN, WN4 8DE M29 7JT T: 01942 402700 T: 01942 402704 mgf.co.uk WEST LOTHIAN – WEST LOTHIAN – enquiries mgf.co.uk LIVINGSTON DEPOT LIVINGSTON DEPOT Letham Road, Houstoun Ind. Est. Letham Road, Houstoun Ind. Est.
- Page 14 MGF.CO.UK enquiries mgf.co.uk Astley Bristol Castleford Dartford Durham Exeter Livingston Rugeley Stanton Tring Warrington Wigan...
