Summary of Contents for Anywave PA-25W

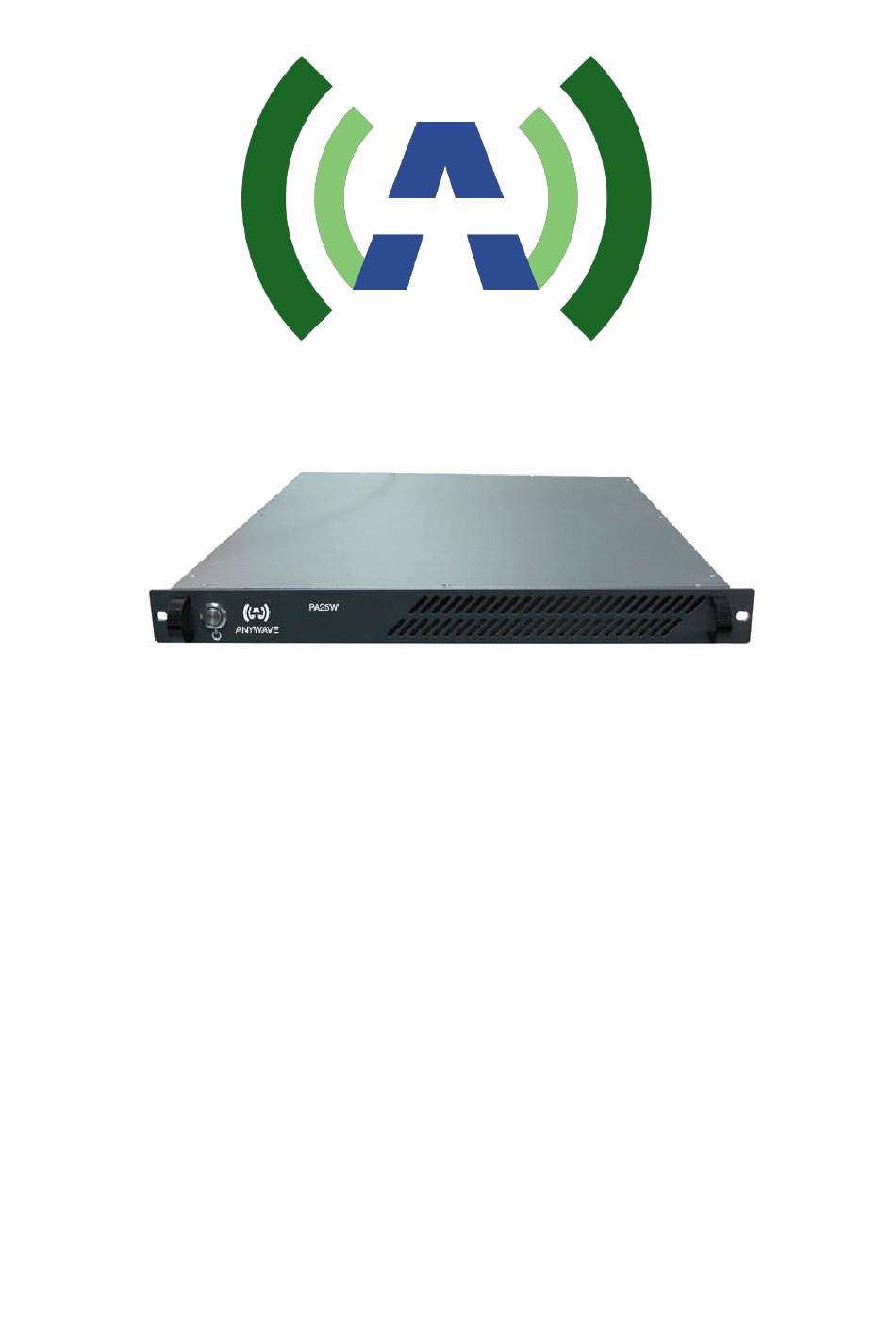

- Page 1 ANYWAVE PA-25W User Manual Version 1.4 – December 15, 2014...
- Page 2 This equipment complies with relevant portions of Parts 2, 73, & 74 of the FCC rules governing LPTV operation. Disclaimer Information provided by Anywave Communication Technologies is believed to be accurate and complete; however, no liability can be assumed for its use. The manufacturer makes no representations or warranties, either expressed or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of fitness for a particular purpose or for any indirect, special, or consequential damages.
- Page 3 Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
- Page 4 The installation, operation, maintenance and service of this equipment involves risks both to personnel and equipment, and must ONLY be performed by qualified personnel exercising due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or damage resulting from improper handling or from the use of improperly trained or inexperienced personnel performing such tasks.
- Page 5 PA-25W User Manual Contents 1 Product Appearance ..................6 1.1 Front Panel ..................... 6 1.2 Back Panel ..................... 7 2 Specifications ....................8 ACT-25PA-USR-DOC-V1.4, 12/15/2014 Page 5 of 9...
-
Page 6: Product Appearance
PA-25W User Manual 1 Product Appearance 1.1 Front Panel RF Button Press the RF button to turn the RF signal ON (inside blue light will light up). Press the RF button again to turn the RF signal OFF (inside blue light will be off). -
Page 7: Back Panel
PA-25W User Manual 1.2 Back Panel RF_IN Connector: 50 Ω Impedance: Rated Power: -6 dBm ± 1 dB Note: If input power from RF_IN is lower than rated input value, the output power will be lower than rated output power accordingly. -
Page 8: Specifications
PA-25W User Manual 2 Specifications Environment Operation Temperature: C ~ +60 C (+14 F ~ +140 Operation Humidity: 20 % ~ 90 % (non-condensing) Atmospheric Pressure: 86 kPa ~ 106 kPa Power Supply Voltage: 90 ~ 264 VAC ... - Page 9 PA-25W User Manual Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ ACT-25PA-USR-DOC-V1.4, 12/15/2014 Page 9 of 9...
