Specification :
Nominal voltage:
Battery type:
Radio frequency:
Transmit power:
Ambient temperature:
Operating range:
Characteristics of the device:
!!!
UP
STOP
DOWN
RR 1
R
INSTRUCTION MANUAL
RR1 / RR5 / RR15
3V
CR 2430
433 Mhz
10 mW
from -10 ˚C to +50 ˚C
150 m outside buildings
25 m indoors
ACTIVE
CHANNEL
CHANNEL
DOWN
P2
CR 2430
3V
Transmitters operate
on frequency
433 Mhz
ACTIVE
CHANNEL
UP
STOP
CHANNEL
DOWN
CHANNEL UP
DOWN
RR 5
P2
MODE
TIME
BATTERY
UP
STOP
CHANNEL UP
DOWN
RR 15
Advertisement

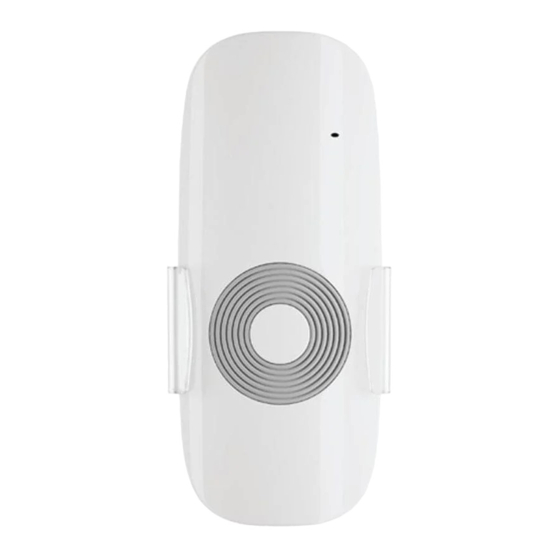

Summary of Contents for Portos RR1
- Page 1 INSTRUCTION MANUAL RR1 / RR5 / RR15 Transmitters operate on frequency 433 Mhz Specification : Nominal voltage: Battery type: CR 2430 Radio frequency: 433 Mhz Transmit power: 10 mW Ambient temperature: from -10 ˚C to +50 ˚C Operating range: 150 m outside buildings...
- Page 2 The programming on the channel CAUTION!! When programming, only the tubular motor which is to be programmed needs to be power supplied. Switch the electricity ON. The motor will make a short beep and will vibrate ( short movement up & down ). The motor is in programming mode for 12 seconds. If no button will be pushed within these 12 seconds the motor leaves the programming procedure.
- Page 3 Deleting a channel Set the channel that You wish to delete. 1.Press P2 button, the motor will emit a single sound and will vibrate. 2.Press the STOP button. The motor will only emit a single sound. 3.Press again P2 button. The deleting procedure will be confirmed by 4 short beeps and after that the motor will vibrate, meaning that the deleting was successful.
- Page 4 4. Switching the remote control between the switch and pushbutton mode The remote control can be operated in two modes: Switch mode By pressing and releasing the UP or DOWN button, the previously programmed function of a motor will be activated (opening or closing the roller shutter). The motor will work only when the button is being pressed.
