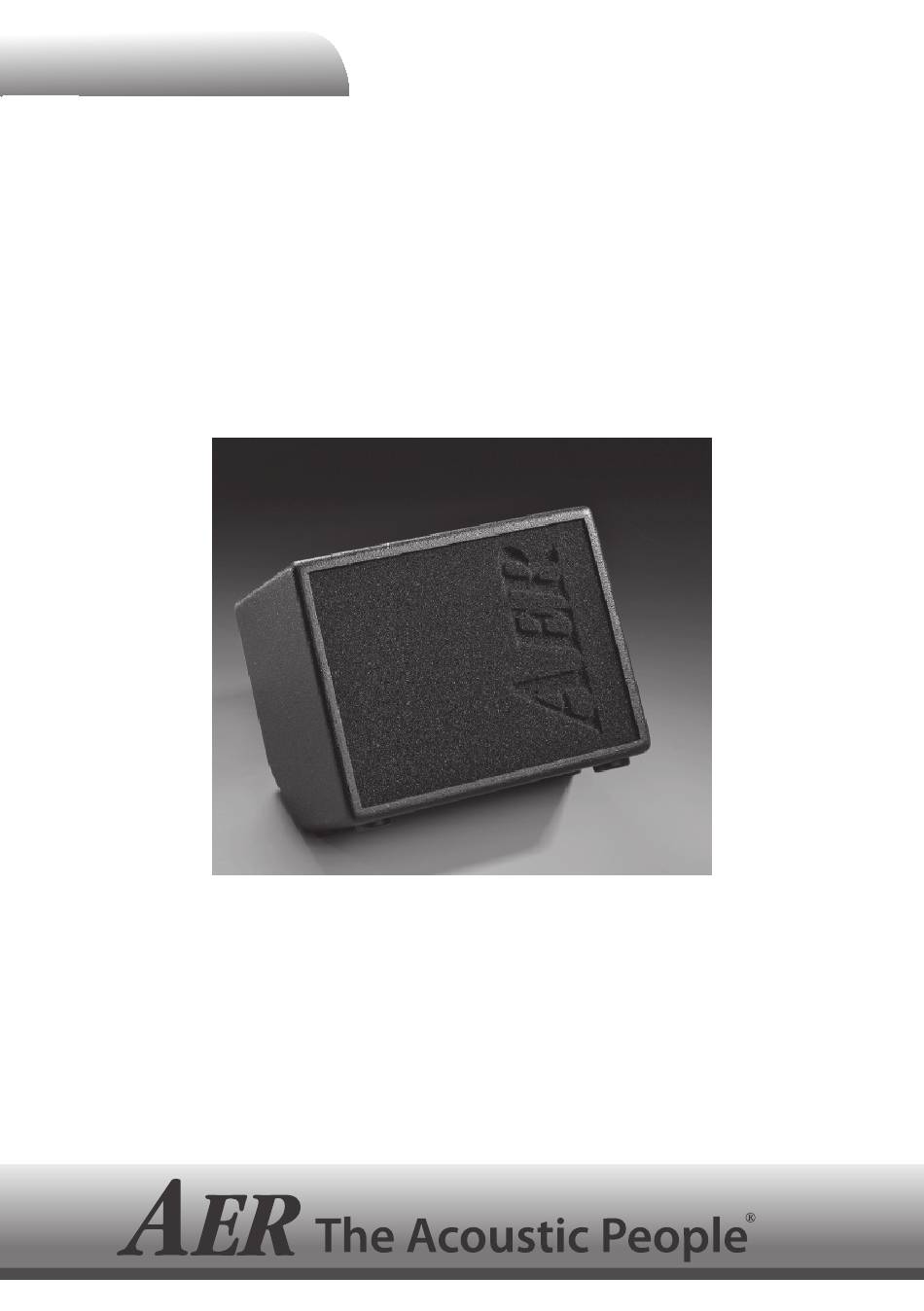

- Page 1 user manual AG 8 active monitor...
-
Page 2: Table Of Contents
AG 8 active monitor user manual Contents Page 1. Introduction 2. Safety instructions 3. Controls and connections 4. Starting up 4.1 Cabling and switching-om 4.2 Level adjustment Note: Level adjustment 5. Functional characteristics 5.1 Ground 5.2 Master 5.3 EQ 5.4 Aux in 5.5 Mic in 5.6 Line in General Note: Use of 48V or 24V phantom power... -
Page 3: Introduction
1. Introduction Welcome to AER. Thank you for purchasing the AG 8 active monitor. The AG 8 active monitor is a professional, compact and powerful active monitor amplifier. Three inputs enable the independent operation of microphone, instrument and line sources. The dynamically controlled power amplifier and the 8“-twin-cone speaker-system guarantee distortion-... -
Page 4: Safety Instructions
2. Safety instructions The following guidelines shall help minimize the will void the 2-year warranty. risk of injury through fire or electric shock. 9. In keeping with the EMV regulations screened cables with correctly fitted connectors must be 1. Carefully read these safety notes before you use used for all signal connections. -
Page 5: Controls And Connections
3. Controls and connections 1) ground signal ground/protective ground disconneting switch = off = on 2) power on/off status indicator master 3) clip overload indicator 4) volume master level control 5) treble treble frequency level control 6) bass bass frequency level control 7) level aux in level control aux in... -
Page 6: Starting Up
The clip-LED indicates an overload. A short flicker tentionally added to the signal. is of no danger to AER devices. During operation a We have carefully designed the circuit to achieve short flicker can be accepted, to be on the safe side... -
Page 7: Functional Characteristics
DI output etc.) which are not protected against „Use of phantom power“ on this page) phantom power applied to their XLR output. (The DI connectors on AER products are protected 5.6 Line in against applied phantom power.) Input for line level sources (6.3 mm jack socket), Other audio devices (such as preamps, effects factory provided phantom power is not activated. -
Page 8: Insert Loop Pre/Post Eq
1. use as additional line-output 2. use as additional line-input 3. link between two or more AER-amps with insert-feature (AG8, Domino, Compact ClassicPro) For each of these applications you’ll need the ap- propriate cable connection, e.g. use as line-output: stereo-jack (tip and ring = hot, sleeve = ground) to mono-jack. -
Page 9: Technical Specifications
AG 8 active monitor - 2012_10_GB...
