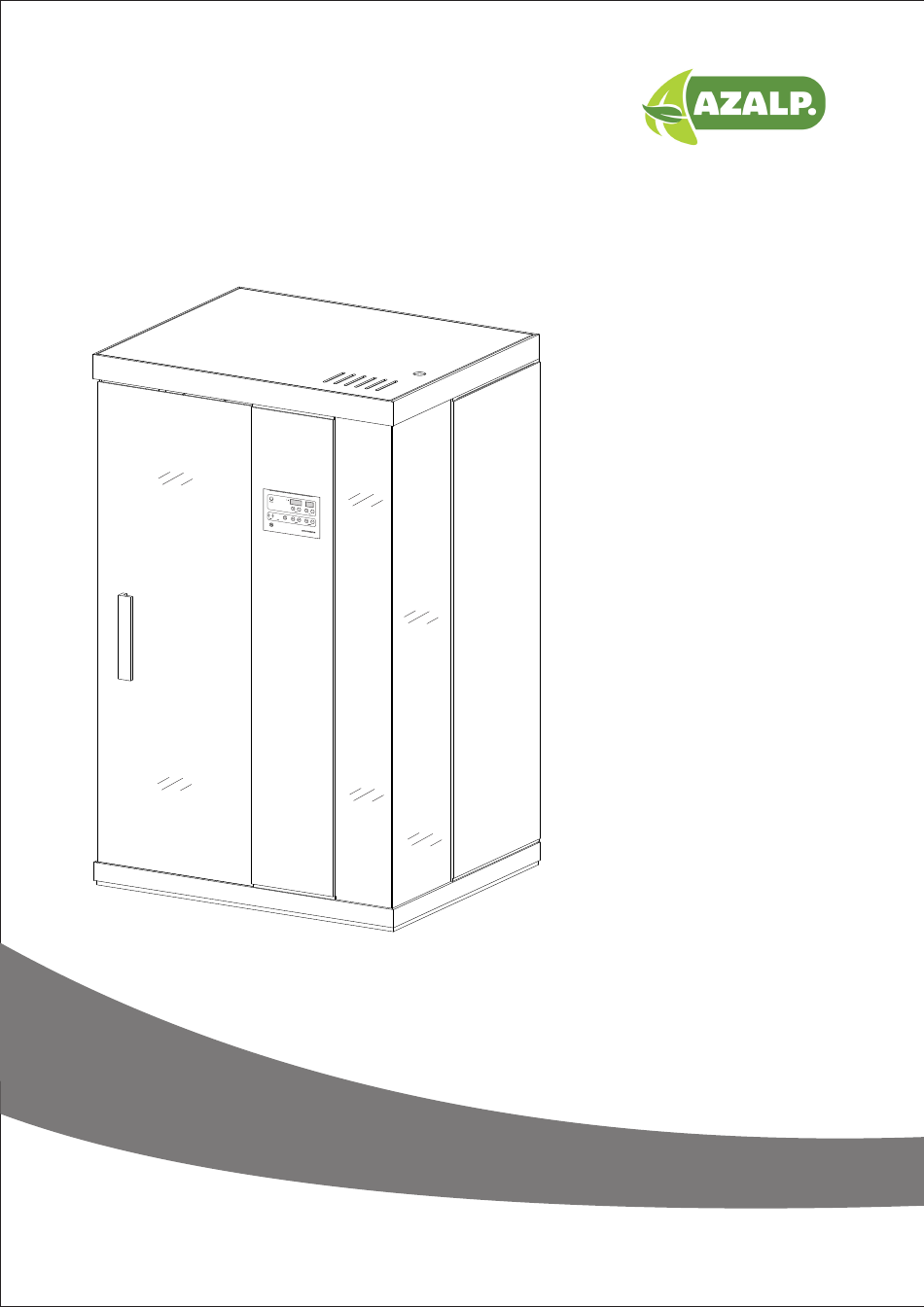

- Page 1 FAR INFRARED SAUNA I n sta l lati o n I n str u cti o n s ® Please keep this instruction manual in order to gain access at any time and read carefully before installing the product Thank you for choosing our infrared sauna!
-
Page 2: Product Specification
【Product specification】 Model: FIR-2C8 ® Dimension: 120x100x190 cm Voltage: 220-240V Total Power: 1970 W Control System : Touch Control Panel ● Function : Far infrared sauna functionality of ● Audio function ：87.5－108MHZ. Built - in sensitive radio , radio frequency External AUX audio input interface , you can add a variety of player Built - in USB drive , can play USB audio. - Page 3 【Products packing】 Before install the product , please check the number of packages . This product is a 3 box / set 1 of 3 indicates that product box 1 2 of 3 indicates that product box 2 FRB-033LC MODEL: 3 OF 3 C/NO.:0001 C/NO.:...
- Page 4 4.Right side board fixing. Ditto. Fix the right side board on the bottom board and then combine it with the back board. At last, fasten the right side board with screws from the back board. 5.Seat front shield fixing Make the grooves of the seat front shield slide along the dowels of the left and right side boards while keeping the seat front shield and the back board inparallel, then connect the power cables of the shield to the cables out of the end of the back board while maintaining a firm connection for the cables...
- Page 5 9. Right side glass window fixing Ditto. Fix the right side glass window on the right side board and bottom board. And take care of the glass during fixing against any damage to the glass due to a bump or fall. 10.Front board fixing Fix it in the same way as fixing the back board, embed the dowel of the bottom of the front board in the corresponding groove in the bottom board...
- Page 6 13.Glass door fixing. a)Fix the hinge on the front board as figure I b)Attach the rubber mats of the hinge to both sides for the glass doors, then ® fasten the glass door to the hinge while maintaining free opening and closing(figure II) Figure I Figure II...
