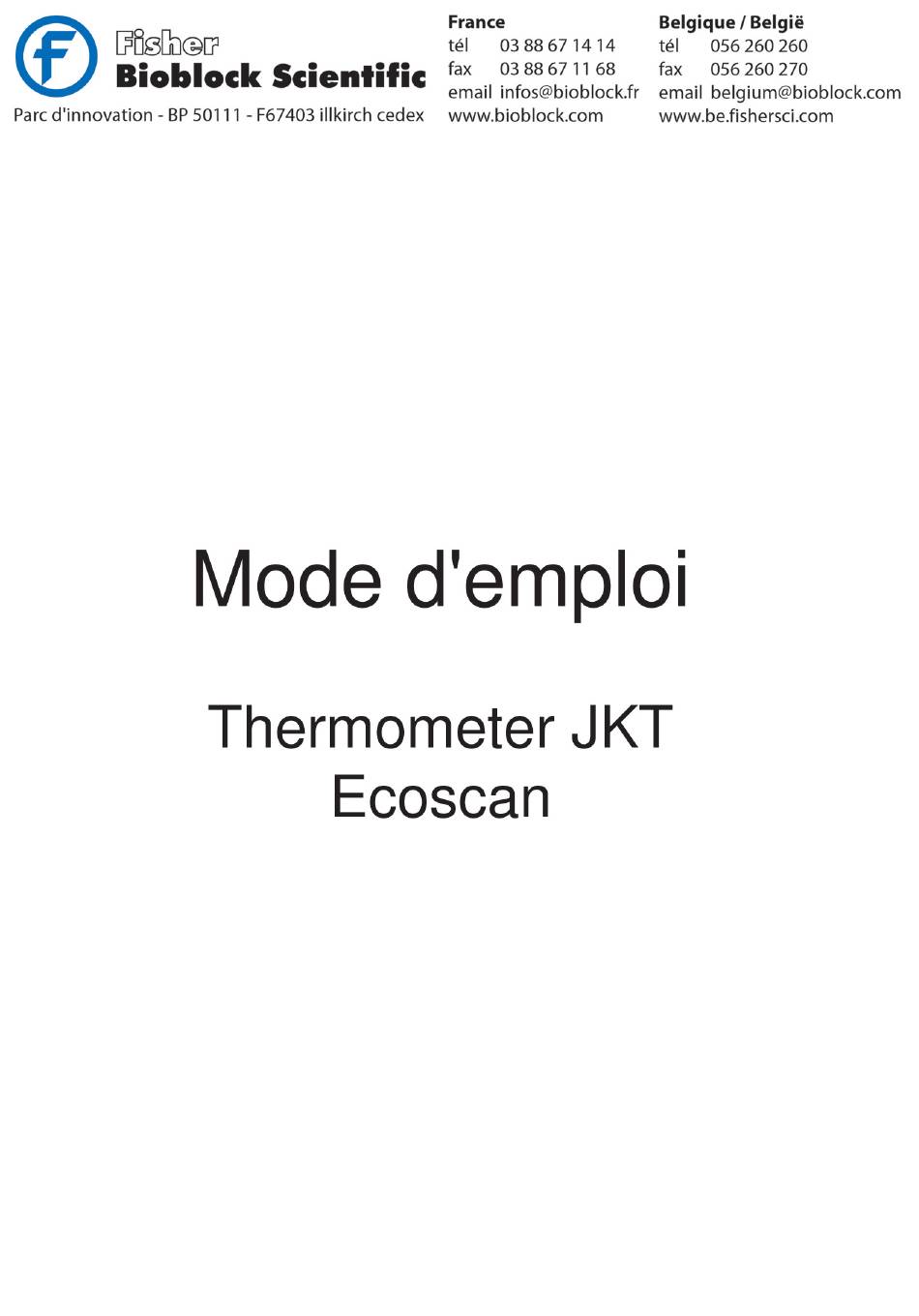

Summary of Contents for Fisher Bioblock Scientific EcoScan Temp JKT
- Page 2 This manual is written to cover as many anticipated applications of the EcoScan Temp JKT meter as possible. If there are doubts in the use of the EcoScan Temp JKT meter, do not hesitate to contact the nearest Eutech Instruments Authorized Distributor.
-
Page 3: Table Of Contents
4.2 Displaying Maximum and Minimum Readings 4.3 Holding a Reading 4.4 Releasing a Held Reading 4.5 Maximum and Minimum Hold Mode 5. PROBE CARE AND MAINTENANCE 6. TROUBLESHOOTING 7. SPECIFICATIONS OF ECOSCAN TEMP JKT METER 8. ACCESSORIES 9. WARRANTY & RETURN OF ITEMS... -
Page 4: Introduction
1. INTRODUCTION 1.1 Introducing the EcoScan Series Thank you for purchasing Eutech Instruments’ EcoScan Temp JKT meter. This economical microprocessor-based handheld meter works with type J, type K and type T probes for a wide temperature measurement range: • Type J probes (iron-constantan) offer a wide range of –200 to 1000 °C / - 328 to 1832 °F;... -
Page 5: Getting Started
Figure 1: Keypad 2.2 Description of LCD Annunciators The EcoScan Temp JKT meter has a large custom LCD that consists of 4-digit segments and operation annunciators for C and F. Other indicators include “MIN’, “MAX”, “HO” (when the HOLD function is activated), “LO” (low battery condition) and “J”/”K”/”T”. -
Page 6: Inserting & Removing The Rubber Boot
2.3 Inserting & Removing the Rubber Boot 1. To remove meter from rubber boot, push out from the bottom edges of meter until it is completely out of boot. Ensure that the connector of temperature sensor is not connected. 2. To insert meter into rubber boot, slide in from the top of meter before pushing the bottom edges of meter down to set it into position. -
Page 7: Battery Replacement
2.5 Battery Replacement A “LO” annunciator in the LCD alerts you when battery power is running low. Replace with the same type as recommended by the manufacturer. Figure 5: Low battery indicator Caution: Power off the meter when changing battery. 2.6 Connecting the Temperature Sensor Insert the 2-pin mini connector plug of the temperature sensor into the connector socket on the side of the meter. -
Page 8: Calibration
The temperature sensor included with your meter is factory calibrated. Over time, the temperature calibration may drift and the probe requires re-calibration. The EcoScan Temp JKT meter allows you to have a 1-point calibration as fine adjustment by changing its offset value. This is useful if you replace the probe. If you replace the probe, you should recalibrate. -
Page 9: Measurement
3. Press the ° ° C/° ° F key to toggle between each measurement mode. 4.2 Displaying Maximum and Minimum Readings The EcoScan Temp JKT meter can momentarily display the maximum and minimum temperature measured since you switched the meter on. Simply press MAX/s s or MIN/t t key. -
Page 10: Maximum And Minimum Hold Mode
4.5 Maximum and Minimum Hold Mode With the Maximum and Minimum Hold mode, the EcoScan Temp JKT meter can be used as a maximum registering (or minimum registering) thermometer. The meter displays the lowest or highest temperature measured since entering the Maximum or Minimum Hold mode. -
Page 11: Probe Care And Maintenance
5. PROBE CARE AND MAINTENANCE For best results, always clean the temperature probe with clean tissue paper after measurement to keep the probe in good working condition. Wash the probe thoroughly with tap water if necessary to wash off any residue. Should there be any thin oil film sticking on the probe, wash with mild detergent or soap and warm water. -
Page 12: Specifications Of Ecoscan Temp Jkt Meter
7. SPECIFICATIONS OF ECOSCAN TEMP JKT METER Temperature Range -200 to 1000 °C (-328 to 1832 °F) Type J -250 to 1372 °C (-418 to 2502 °F) Type K -250 to 400 °C (-418 to 752 °F) Type T Resolution t<-99.0 °C... -
Page 13: Accessories
8. ACCESSORIES Replacement Meter and Meter accessories Ordering Code No. Item Replacement Meter EC-TEMPJKT EcoScan Temp JKT meter only Type J Thermocouple Probes EC-TPGLPJ-01M General purpose probe (immersion into liquids) EC-TPPENJ-01M Penetration probe (meat, semi-soft materials) EC-TPSURJ-01M Surface probe (direct contact on hot surface) EC-TPCLPJ-01M Clip-on probe (surface contacts –... -
Page 14: Warranty & Return Of Items
9. WARRANTY & RETURN OF ITEMS Eutech Instruments warrants this meter to be free from significant deviations in material and workmanship for a period of three years from date of purchase. Eutech Instruments warrants this probe to be free from significant deviations in material and workmanship for a period of six months from date of purchase. - Page 15 NOTES...
- Page 16 For more information on Eutech Instruments products, contact your nearest Eutech Instruments distributor or visit our website listed below: Manufactured by: Distributed by: Eutech Instruments Pte Ltd. Blk 55, Ayer Rajah Crescent, #04-14/24 Singapore 139949 Tel: (65) 778 6876 Fax: (65) 773 0863 E-mail: marketing@eutechinst.com Web-site: http://www.eutechinst.com...
