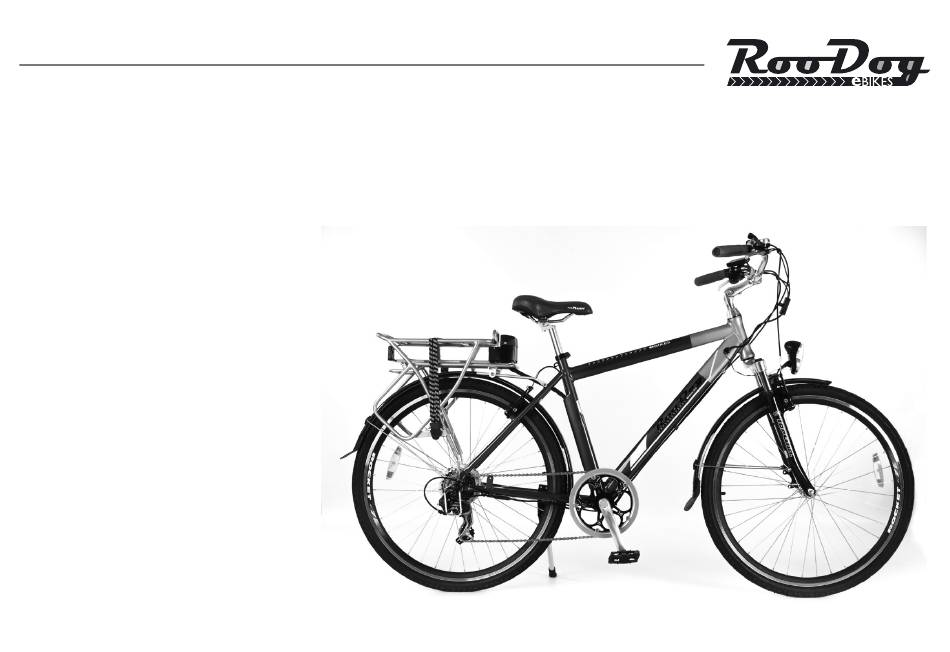

- Page 1 RooDog Electric Bicycle USER Black Pantone Red 032C Pantone Blue 072C MANUAL Tourer EN 15194 official standard.
- Page 2 Identity: Serial number: Dealer stamp: Date purchased: 2 | www.roodog.co.uk...
- Page 3 Thank you for buying a RooDog electric bike. This is one of the best purchases you will ever make providing it is cared for properly. Important: Please read this manual carefully before use and follow instructions provided at all times For your own safety check brakes, gears, lights and tyre pressures are fully operational and correct before any bike ride.
-
Page 4: Table Of Contents
Parts I.D ..............................5 Bike assembly ............................6 Getting started & how to use power assistance .............. 7 Battery charging and removal ..................... 8 Maintenance ............................10 General specifications ........................12 Warranty ..............................14 Troubleshooting ..........................15 4 | www.roodog.co.uk... -
Page 5: Parts I.d
10. Ignition switch 2. Lights 4. Front V brake 12. Battery charge point 3. Front suspension 6. Front chain ring 5. Rear V brake 14. Pedals 7. Rear 7 speed gears 11. Front & rear mudguards 15. Side stand www.roodog.co.uk | 5... -
Page 6: Bike Assembly
15mm spanner. bars straight and tighten the Allen key bolt. Note: Your wheel should fully stop once the brake lever is depressed halfway. If it does not stop, re-adjust them accordingly. 6 | www.roodog.co.uk... -
Page 7: Getting Started & How To Use Power Assistance
(no requirement to pedal) Please note the red isolation button also needs to be in the depressed position for the throttle to be on. Simply twist the half grip throttle and it will propel the bike. www.roodog.co.uk | 7... -
Page 8: Battery Charging And Removal
If it does not then check points 1 & 2 again to avoid damaging the battery casing. (DO NOT KEEP PULLING AS THE BATTERY WILL BREAK) TIP: Keep the battery plate greased to aid ease of sliding in and out. 8 | www.roodog.co.uk... - Page 9 If fitted correctly the battery should slide all the way in with out the need for excessive force being required. Push the lock back in and your ready to go riding. Check the pin underneath the plate to make sure it has located. www.roodog.co.uk | 9...
-
Page 10: Maintenance
Maintaining your bike ensures you will get the most out of every Every month: ride and increases the longevity of your RooDog electric bike. › Check for worn brake pads and replace if necessary. How much you can do your self really depends on your skill, ›... - Page 11 › Finally reconnect the motor plug fully so the clip clicks in. Press here to release (incorrectly replaced in may result in a sudden lose of power then pull apart. or may even damage the contacts connecting the motor). www.roodog.co.uk | 11...
-
Page 12: General Specifications
Front & Rear v brake pedaling and motor) If applicable throttle only mode. (no pedaling required) Rims: Aluminium alloy, double wall. Inner 19mm 120KG (18.9 stone). Including rider and all load: luggage. Weight: 23.8 KG including battery, 20.8 KG without 12 | www.roodog.co.uk... - Page 13 | 13...
-
Page 14: Warranty
12 months. Items not covered: Brake pads, tyres, lights and cables or anything else that can be seen as consumables. These parts can however be purchased from RooDog Ltd or from your local Retailer/bike shop. 14 | www.roodog.co.uk... -
Page 15: Troubleshooting
› Tyre pressures too low. › Inflate tyre to correct amount indicated › Battery under charged or faulty charger. on tyre sidewall. › Battery capacity loss or damage › Charge the battery or contact dealer. › Contact dealer to inspect. www.roodog.co.uk | 15... - Page 16 Charger doesn’t work: › Fuse has blown. › Change fuse and retry. › Has been damaged through misuse. › Contact dealer. Important: Always use the charger supplied by the manufacturer to avoid damaging your battery 16 | www.roodog.co.uk...
