Relens TLS 30120 User Manual

Hdbaset extender 150m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDBaseT Übertragungssystem
Art.: 30120
VER 1.0
Subject to amendmends

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLS 30120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Relens TLS 30120

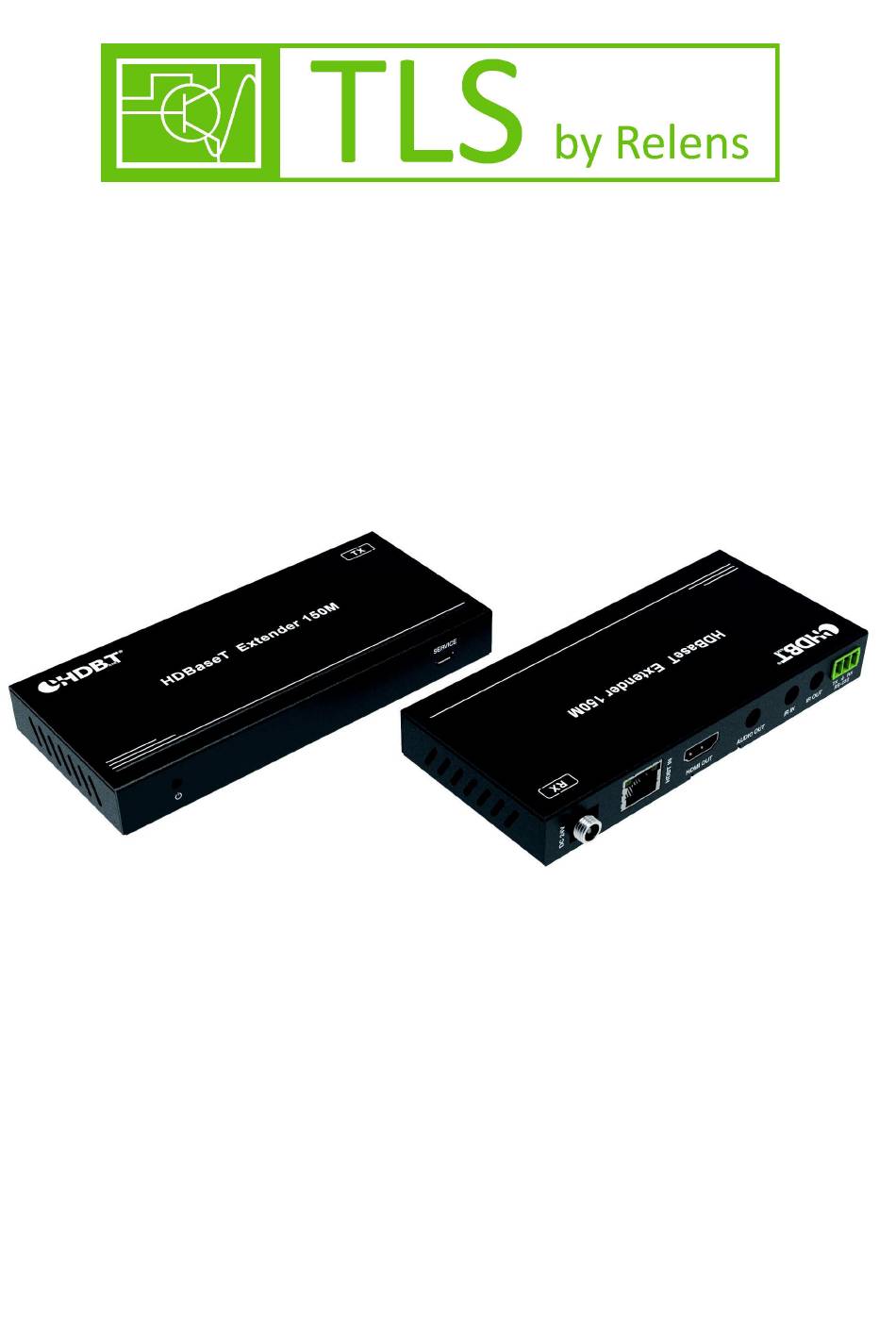

  • Page 1 HDBaseT Übertragungssystem Art.: 30120 VER 1.0 Subject to amendmends...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2.

  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ear 3-pin Phoenix connector 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth...
  • Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] Transmitter 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack]...

  • Page 6: Operation Controls And Functions

    5. Oper ration Cont trols and Fu unctions 5.1 Transm mitter Panel SERVICE RS232 TX/TX HDMI OUT HDMI IN IR IN IR O Name Func ction Description wer LED Red LE ED indicates that the transmitter is powered on. RVICE port Firmwa are update port.

  • Page 7: Receiver Panel

    3-pin P Phoenix connecto r for RS-232 comm mand transmissio 11 RS-2 The RS S-232 command w will pass-through f from transmitter to receive er or from receive r to transmitter. 5.2 Receiv ver Panel SERVICE RS232 RX/TX HDMI OUT AUDIO OUT IR IN IR OU Name...

  • Page 8: Ir Pin Definition

    IR IN IR input t port for receiving g the signal of IR r emote. IR outpu ut port for control o of display device. T This IR output signa 10 IR O is from t the IR IN port of tra ansmitter.
  • Page 9 The following is IR system diagram about IR cable use method. TV remote DVD remote IR Receiver cable CAT 5e/6 cable HDMI OUT HDMI IN IR IN IR OUT HDMI OUT AUDIO OUT IR IN IR OUT Transmitter Receiver IR Blaster cable Note: When the angle between the IR receiver and the remote control is ±...

  • Page 10: Application Example

    6. Appli ication Exa ample RS-232 DC 12V Controller DVD or Blu-ray P Player Trans smitter RS232 RX/TX IR IN IR OUT HDMI OUT HDMI IN IR Blaster Power Supply IR Receiver IR Receiver T 5e/6 cable UHDTV IR Blaster Recei iver HDMI OUT...
