Summary of Contents for TeacherGeek Wind Turbine Stand

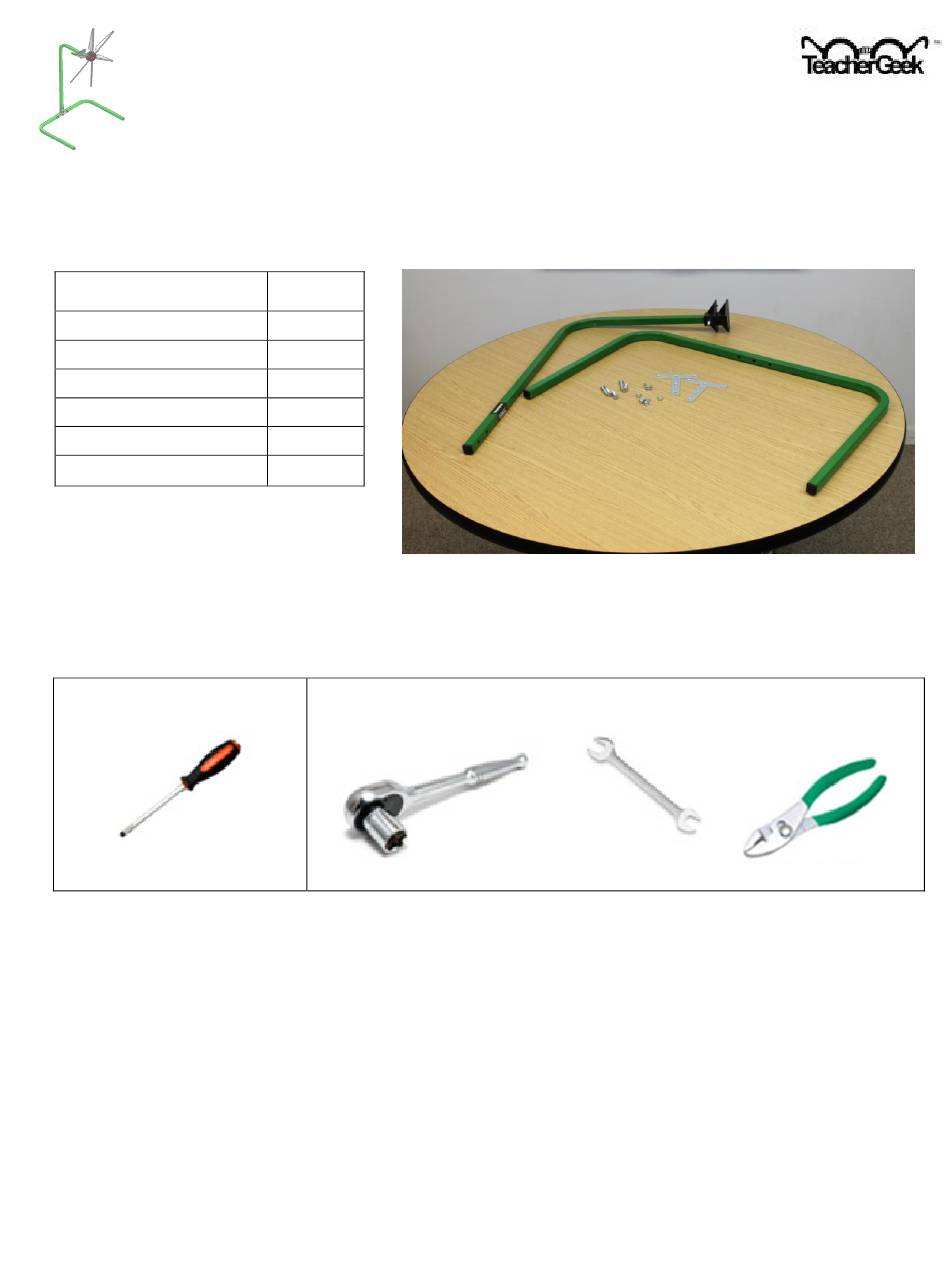

- Page 1 URBINE TAND - UILD Page 1 Materials Required: Part Quantity ¼” Wing Nut T-Plate ¼” Lock Nut ¼” 1 ¼” Screw Stand Base Stand Upright Tools Required: Straight Screwdriver 7/16” Wrench or Pliers...
- Page 2 URBINE TAND - UILD Page 2 Wing Nut and Screw Upright Base Lock Nuts and Screws Step #1: Attach the two T-plates to the base of the stand using 2 screws and locking nuts. Use these holes in the base. Your wind stand base may not have the center hole.
- Page 3 URBINE TAND - UILD Page 3 Step #2: Attach the upright to the T-plates using 2 screws. Place a lock nut on the bottom screw and a wing nut on the top screw. Tighten the lock nuts and wing nut. T-Plates Wing Nut and Screw Lock Nuts and Screws...
- Page 4 URBINE TAND - UILD Page 4 You can now attach your geared or direct drive turbines. Folding the stand down: The upright on your stand can be folded down for storage. a. Unscrew the wing nut. b. Remove the loose screw (the screw the wing nut attached to). c.
