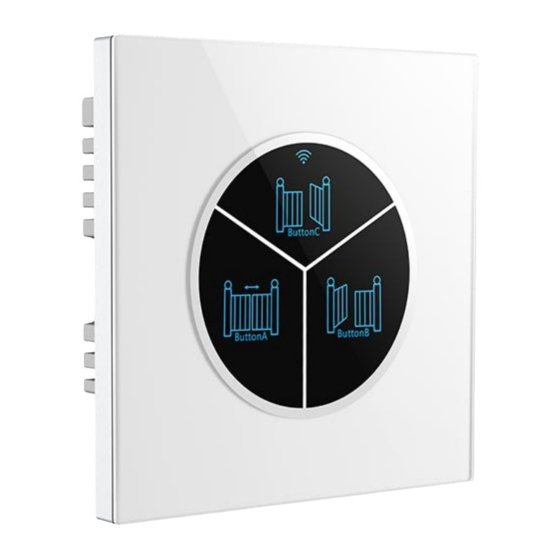

The LT3X uses your existing home WIFI network(2.4GHz) to provide wireless control
of your autogate system from anywhere in the world.
No Subscription or Hub is required:
1. Simply install the LT3X and start controlling your autogate system from your phone
or tablet. Using the free 【WIFI Smart Control】App, you can Open/Close your
autogate.
2. The LT3X also functions like a normal switch:
Just press the button on it then you can control your autogate Open/Close easily.
Advertisement
Summary of Contents for CARBONE LT3X
- Page 1 No Subscription or Hub is required: 1. Simply install the LT3X and start controlling your autogate system from your phone or tablet. Using the free 【WIFI Smart Control】App, you can Open/Close your autogate.
- Page 2 1. Works on all brands of gate opener systems: AC 90-240V(50/60HZ) and DC 9-30V are both available. 2. It can replace all access controls, remote controls and wall switches. Just put the remote control in your phone! Never worrying to carry your remote control every day or lose it! SWING ARM MOTOR ，...
- Page 3 3. You don't have to roll down the window or get out of the car to open the door. 4. No hub required, just keep the LT3X inside of the wifi range. Control gate anytime, anywhere. 5. Perfect for all gate types including AC/DC sliding door, swing door, rolling door, garage door, automatic door etc.
- Page 5 ◆Don't have push button/keypad: connect the LT3X A/B/C/Com terminal to the gate opener control board. 3. Gate Detection: Connect the LT3X green and black wire to a door sensor, then you can see door open/close status on mobile APP.
- Page 6 If your auto gate control system only need one signal(for example, only need open signal), then you just need to connect with one way, or you can connect with 3 way, then whichever button you press, it can send a control signal. Can modify the device/button name on APP. LT3X...
- Page 7 If your auto gate control system only need two signals(for example, only need open and close signal), then you just need to connect with two way, then the connected 2 buttons can send 2 control signals. Can modify the device/button name on APP. LT3X...
- Page 8 If you're connecting the LT3X to garage door/rolling gate/dual swing door, then you'll need to connect all the 3 ways to send 3 signals. You can connect the open/close/stop or left/right/dual door signal orders by yourself. Can modify the device/button name on APP.
- Page 10 *On condition that your Echo/Echo dot was connected to the internet.
- Page 11 5. Confirm the entered router password is correct. 6. Confirm adding device(LT3X) is under 2.4GHz WiFi channel. Enable the broadcast and not allow to hide Wi-Fi. 7. Confirm that router's encryption method is WPA2-PSK and authentication type is AES, or both are set up as automatic OWPA2-PSK 11n only.
- Page 12 Share with families: you could authorize multiple individuals to access your garage through APP after you connected to LT3X. You can control both yours and theirs account as well. Only the main account can share the device, the one who is shared ...
- Page 13 If the LT3X is powered off, mobile can't control it. While once powered on, it can used as usual, don't need to connect to mobile and set again. The chip of the LT3X has memory function, even the device name was deleted on your APP or the router was rebooted, you only need to reconnect the LT3X with WiFi/APP, you don't need to modify the switch/button name, it's the same with you set before.
