Summary of Contents for GREENLINE IMD-C Series

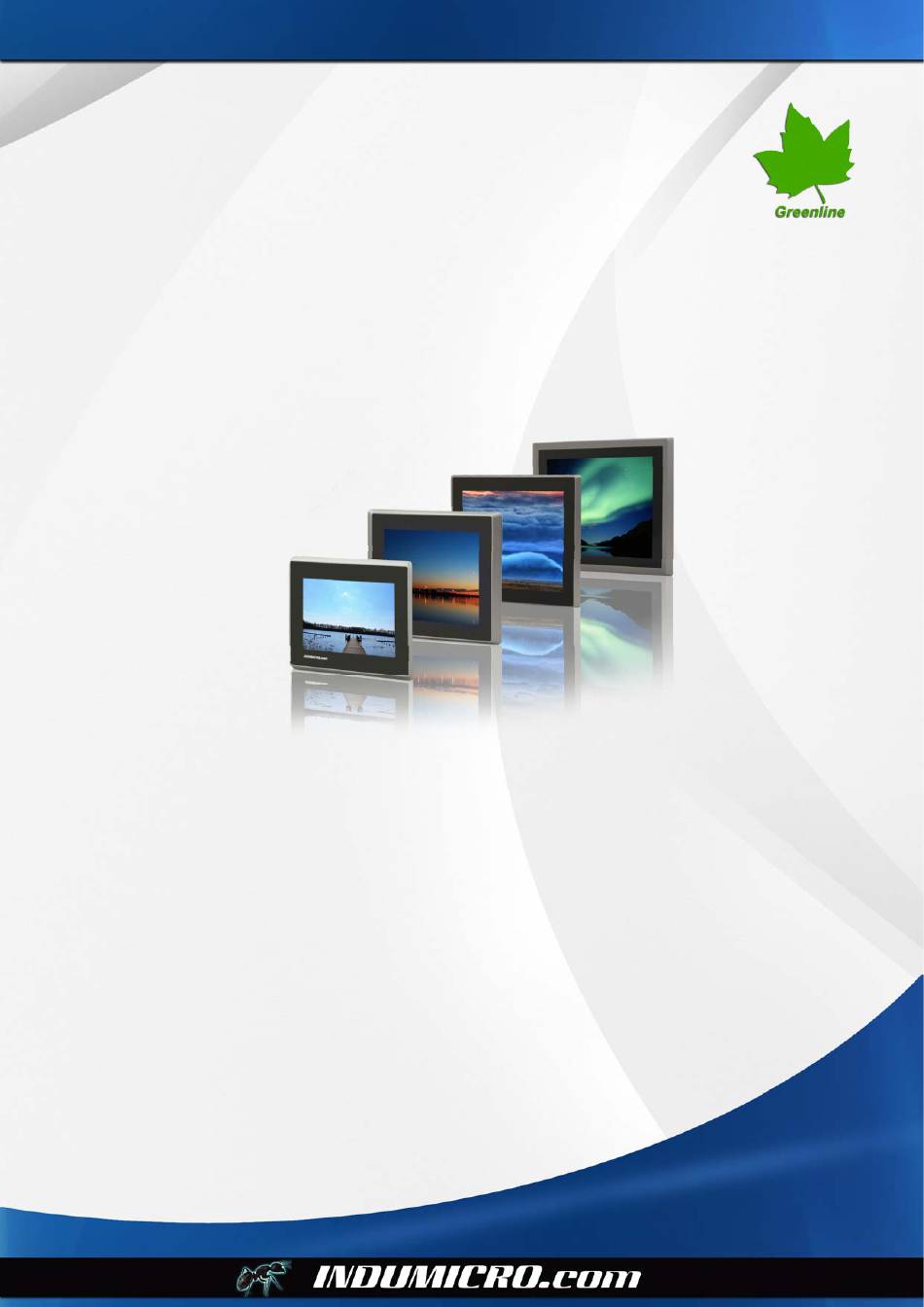

- Page 1 Greenline Industrial Monitors IMD-C Series User Manual...
- Page 2 ___________________________________ Warning! ___________________________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
-
Page 3: Table Of Contents
Chapter 1: System description 1.1 Specifications ..........................1 1.2 Ordering information ........................1 1.3 Features of the IMD-C series ...................... 2 Chapter 2: Touch screen configuration 2.1 Configuring a resistive touch screen (IMD-CxxxT) ..............3 2.2 Configuring a projected capacitive touch screen (IMD-CxxxPT) ..........15 Chapter 3: Dimension drawings 3.1 Dimension drawing IMD-C070[P]T .................... -
Page 5: Chapter 1: System Description
IMD-C080PT 8” Industrial display with projected capacitive touch screen IMD-C120T 12” Industrial display with resistive touch screen IMD-C120PT 12” Industrial display with projected capacitive touch screen IMD-C150T 15” Industrial display with resistive touch screen IMD-C150PT 15” Industrial display with projected capacitive touch screen IMD-C Series User Manual... -
Page 6: Features Of The Imd-C Series
1.3 Features of the IMD-C series The IMD-C series feature an excellent viewing ability for monitoring and control applications. The front panel of the display monitor is sealed with a gasket for NEMA 4/IP 65 rating when it is panel mounted in a NEMA rated cabinet or enclosure. -
Page 7: Chapter 2: Touch Screen Configuration
Chapter 2: Touch screen configuration 2.1 Configuring a resistive touch screen (IMD-CxxxT) PenMount Control Panel The functions of the PenMount Control Panel are Device, Multiple Monitors ,Tools and About, which are explained in the following sections. Device In this window, you can find out that how many devices are detected on your system. Calibrate This function offers two ways to calibrate your touch screen. - Page 8 To calibrate your touch screen: 1. Please select a device then click “Configure”. You can also double click the device too. 2. Click “Standard Calibration” to start calibration procedure. IMD-C-Series User Manual...
- Page 9 NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: 3. Come back to “PenMount Control Panel”, select Device to calibrate, then click Advanced Calibration.
- Page 10 Check this function to have touch panel linearity comparison graph appear Plot Calibration Data when you finish Advanced Calibration. The black lines reflect the ideal linearity assumed by Penmount’s application program while the blue lines show the approximate linearity calculated by Penmount’s application program as the result of user’s execution of Advanced Calibration.
- Page 11 Setting Operation Mode This operating mode will send left button down function when user presses, and Mouse Emulation left button up function when user release its touch. This operating mode will send a mouse click only on user’s touch. Dragging is Click On Touch disabled in this mode.
- Page 12 Beep Sound Turns beep function on or off. Enable Beep Sound Beep occurs when pen comes down. Beep on pen down Beep occurs when pen is lifted. Beep on pen up Beep occurs when pen comes down and when it’s lifted. Beep on both Modifies sound frequency.
- Page 13 About This panel displays information about the PenMount controller and driver version. IMD-C-Series User Manual...
- Page 14 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 2000/XP support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
- Page 15 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5.
- Page 16 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares. NOTES: 1.
- Page 17 You can opt to display the Mouse Icon in the System Tray instead of on the desktop. To do so follow these steps: 1. Open the PenMount Control Panel. 2. Select the Tools tab. 3. Select the System Tray option. The Mouse Icon will then appear in the System Tray.
- Page 18 Configuring the Rotate Function 1. Install the rotation software package. 2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped. NOTE: The Rotate function is disabled if you use Monitor Mapping IMD-C-Series User Manual...
-
Page 19: Configuring A Projected Capacitive Touch Screen (Imd-Cxxxpt)
2.2 Configuring a projected capacitive touch screen (IMD-CxxxPT) eGalaxTouch Control Panel The functions of the PenMount Control Panel are General. Setting, Tools, Display, Hardware and About, which are explained in the following sections. General This window will show the installed USB Controller. 3 Option buttons are shown: Monitor Mapping The eGalaxTouch driver utility supports multiple monitors. - Page 20 This function button is only used to add serial RS232 controllers. eGalaxTouch supports plug and play for USB devices. The icon object for an additional USB controller will be shown automatically in the controller list window when the USB controller is connected with the system USB port. Remove This function is used for serial controllers only.
