AURAXY GS8 User Manual

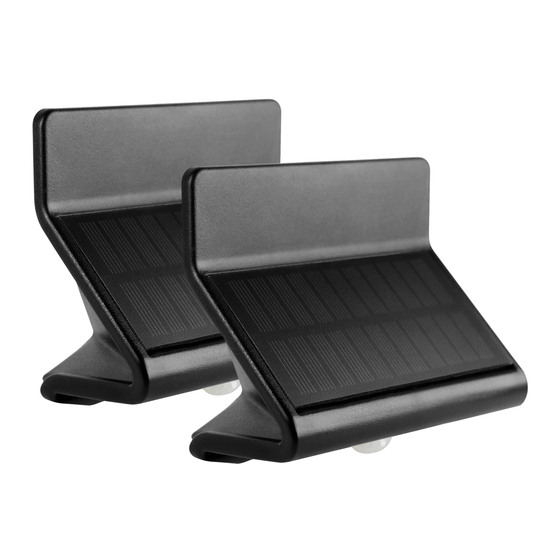

Solar LED Wall Light
with Infrared Motion Sensor
User's Manual
INTRODUCTION
GS8
Dear Customer,
You have chosen to purchase a AURAXY Solar LED Wall Light GS8. We thank you for this purchase and
hope that your experiences with this product will be pleasant ones. Prior to using this product, you should
carefully read these user instructions so that you can install and operate your GS8 accordingly. Please
keep these user instructions so that you can reference them later on.
PARTS & ACCESSORIES
1
2
3 4
SOLAR PANEL
The GS8 is a solar outdoor light with motion sensor. The solar panel acts as the major energy source: it
converts sunlight into electricity and recharges the internal battery. Please note that when installing the
lamp, the solar cells require as much DIRECT SUNLIGHT as possible (at least 5-7 hours). The longer the
solar cells are exposed to direct sunlight, the longer the lamp will stay ON during the night.
IP44
1. Solar Panel With Integrated Light
Sensor
5
2. Soalr LED Wall Light
3. Main Light With LED Asymmetric
Lens
6 6
4. Motion Sensor
5. Mounting Hole
6. Back Light
7
7. Mode Switch
8. Plugs
9. Screws
8 9
MOUNTING LOCATION
When the lamp is in a location that receives less sunlight, it will operate for fewer hours per night, depend-
ing on the selected lighting mode. Night lighting time can also vary depending on how bright the sky is on
any given day.
Insufficient charging of the battery will affect performance and may result in the fact that the lamp goes off
before dawn because the battery was not fully charged.
The solar panel is best directed as much as possible towards the south in order to maximize exposure to
direct sunlight. Please note that the four different seasons (and the sun's angle in these 4 season periods)
can affect the lighting time of the lamp.
Select a location that is not located close to other light sources, such as for example street lighting,
because this enables the lamp to be switched off automatically. Maximum lighting time depends on
sunlight and daytime charging. Minimum charging time is 5~7 hours in direct sunlight.
INSTALLATION
Measure Card
Measure Card
Measure Card
・Cut the Measure Card from packing box.
・Choose a stable, solid and supportive surface and make sure the lamp is mounted faced towards the
sun. Mounting height is 2-4 meters.
・Use the Measure Card to mark the screw positions.
・Drill the wall and screw the lamp onto the wall using the supplied wall plugs and screws. Leave at least
5 mm of the screw above the surface hatch to fix the lamp properly.
・This lamp is intended only for outside use.
