Summary of Contents for ARC FLEXEPH 8EPH

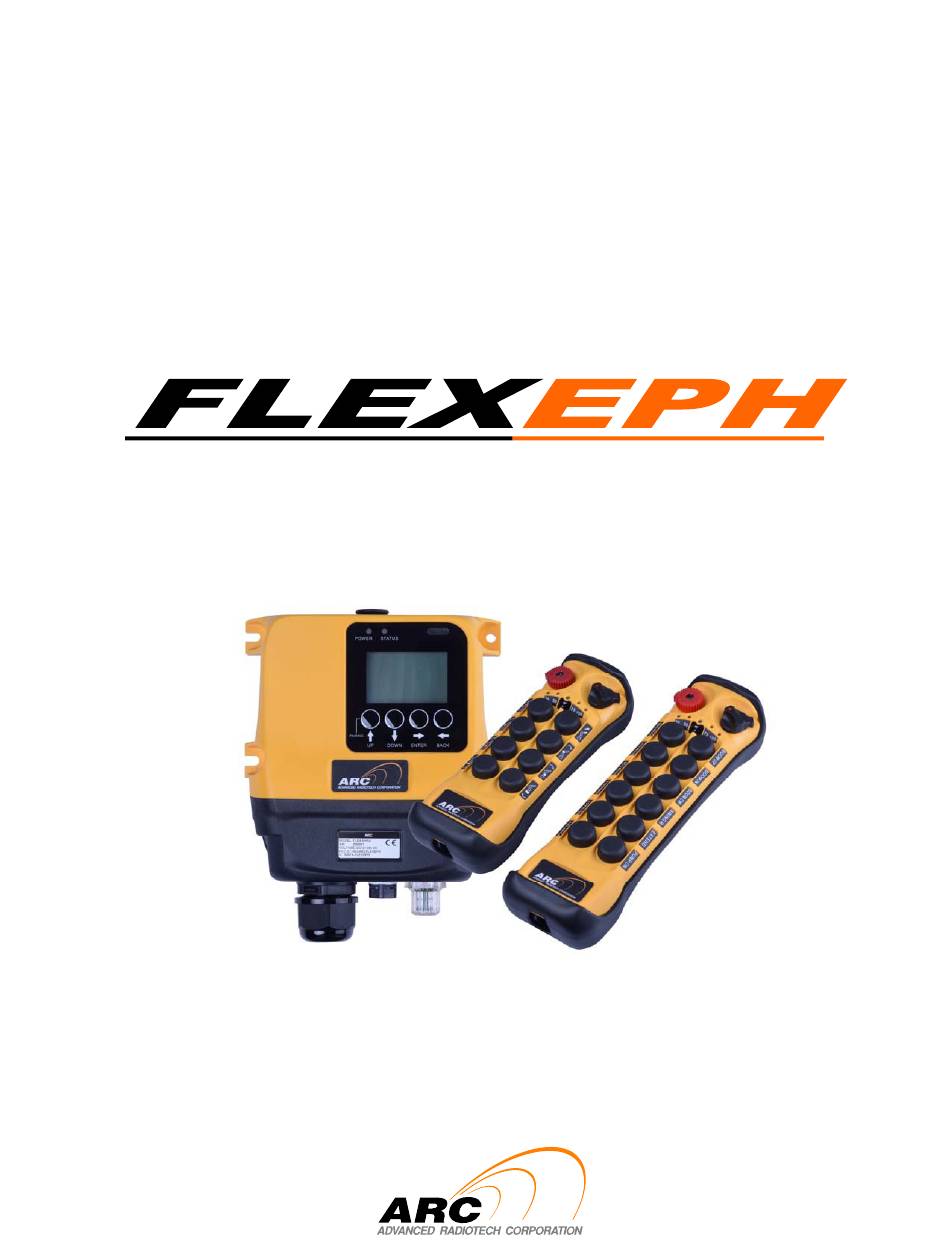

- Page 1 Instruction Manual...
- Page 12 * Transmitter Access Card Note: Flex 8EPH-AB model is with A/B/A+B rotary switch on PB8 slot.
- Page 13 * Transmitter Access Card Note: Flex 12EPH-AB model is with A/B/A+B rotary switch on PB12 slot.
- Page 18 Pitch & Catch configuration “can not” set to unassigned channel scheme.
- Page 19 Pitch & Catch configuration “must” set to assigned channel scheme Note: When selecting a new channel, make sure each button press does not exceed 3 seconds.
- Page 20 Note: During remote pairing make sure the distance between the two transmitters is within 1 meter.
- Page 27 * External warning function requires installing an external warning device such as horn and lights to wire #11 Function-2 output. ** EMS: Output opens when STOP button is pressed down.
- Page 28 * Normal + Start: For added safety, must first rotate and hold the power switch key at the START position and then press the intended pushbutton to activate the output. ** EMS: Output opens when STOP button is pressed down.
- Page 32 * Make sure the transmitter is also set to Unassigned Channel Scheme. ** Make sure the transmitter channel is identical to the receiver channel. *** Pitch & Catch configuration “cannot” set to unassigned channel. * When set to 2-channel scanning, the receiver will scan the channel set in the receiver (channel X) and the next channel up (channel X+1).
- Page 60 * COM-1 and COM-2 input voltage range: DC 12~24V. * Transmitter equipped with A/B/A+B rotary switch on PB8 position: Connect A output to wire #17 and B output to wire #18.
- Page 61 * COM-1 and COM-2 input voltage range: DC 12~24V. * Transmitter equipped with A/B/A+B rotary switch on PB12 position: Connect A output to wire #17 and B output to wire #18.
- Page 72 For the following equipment: The standards relevant for the evaluation of the electrical safety requirements are as follow: Test reports issued by: Person responsible for making this declaration:...
